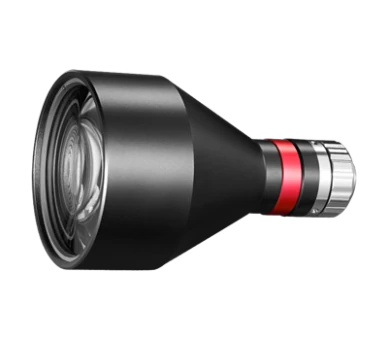

Bi-telecentric lens for 1/2.3" cameras, B variant, 0.09x, WD 208 mm, 1/2", C-mount (LS-TCL-2565)
  • Bi-telecentric lens for 1/2.3" cameras, B variant, 0.09x, WD 208 mm, 1/2", C-mount (LS-TCL-2565)

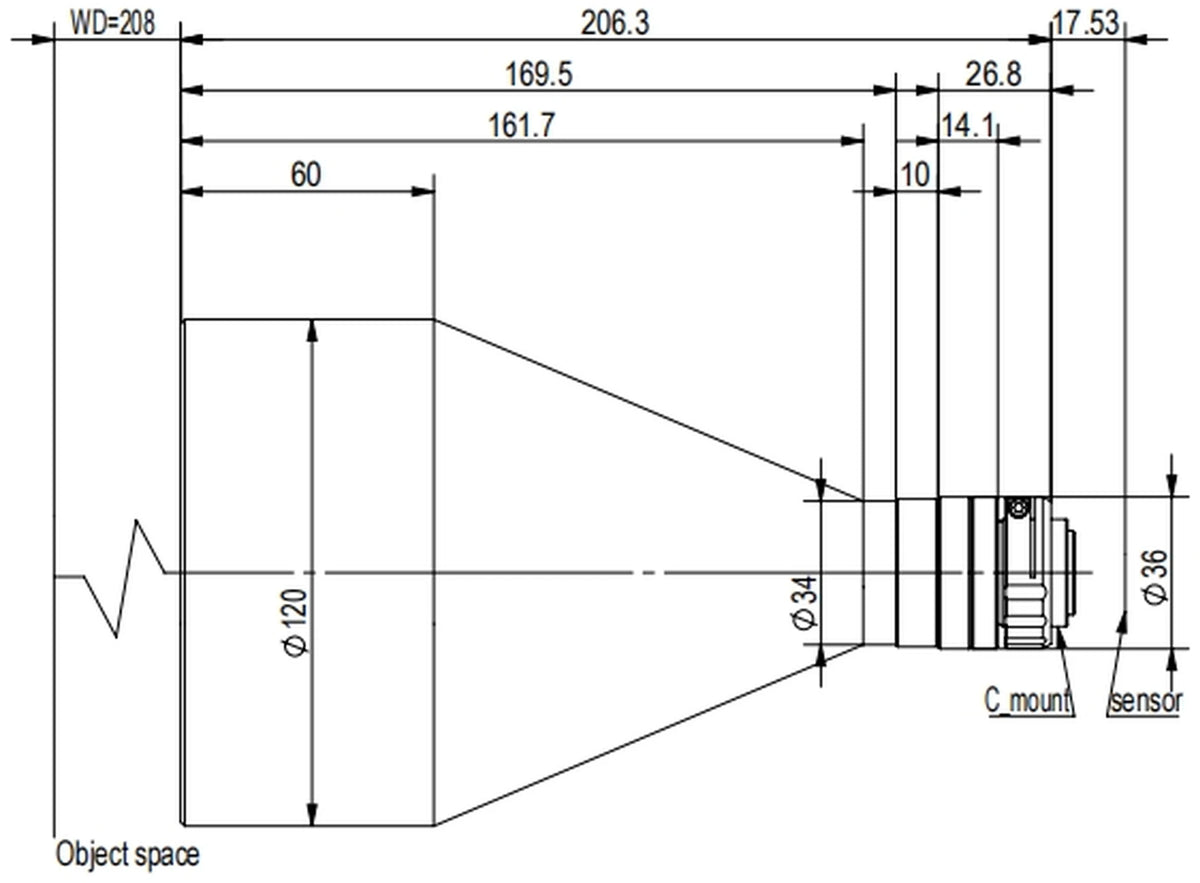

  • LS-TCL-2565 dimensions (mm)

Telecentric lenses

Bi-telecentric lens for 1/2.3" cameras, B variant, 0.09x, WD 208 mm, 1/2", C-mount (LS-TCL-2565)

Model LS-TCL-2565

  • MountC-mount
  • Sensor1/2"
  • Working distance208±3
  • Field of view71.5x51.3
$2,879.00

Ships in 2-3 weeks

2.38 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Bi-telecentric lens for 1/2.3" cameras, B variant, 0.09x, WD 208 mm, 1/2", C-mount (LS-TCL-2565)LS-TCL-2565

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Bi-telecentric lens series with matrix design and extremely high imaging quality; standard FOV from 26 to 240 mm. Each lens comes with an imaging quality test report.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-2565
Mag.0.090x
FOV90mm

Optics

Working distance (mm)208±3
Best Aperture (F/#)4.18
Telecentricity typical (max) (deg)0.1
Distortion typical (max) (%)0.1
MTF30 (lp/mm)>247
Depth of field (mm)±8
Field of view with 9J003 (6.44x4.62 sensor) (mm x mm)71.5x51.3

Sensor and imaging

Max sensor size (dia. mm)8.0(1/2")

Interfaces and I/O

Length of I/O (mm)431.8

Mechanical

MountC
Length (mm)206.3
Weight (kg)1.63

Other models in the Bi-telecentric lens for 1/2.3" cameras - B variant (LS-TCL-S76) series

See all 11 models
ModelSize / key dataPriceAvailabilityLink
LS-TCL-2556 0.308x, WD 72 mm, 1/2", C-mount $1,399.00 Ships in 2-3 weeks View
LS-TCL-2557 0.221x, WD 111 mm, 1/2", C-mount $1,629.00 Ships in 2-3 weeks View
LS-TCL-2558 0.19x, WD 118 mm, 1/2", C-mount $1,769.00 Ships in 2-3 weeks View
LS-TCL-2559 0.166x, WD 128 mm, 1/2", C-mount $1,899.00 Ships in 2-3 weeks View
LS-TCL-2560 0.143x, WD 138 mm, 1/2", C-mount $2,089.00 Ships in 2-3 weeks View
LS-TCL-2561 0.125x, WD 187 mm, 1/2", C-mount $2,269.00 Ships in 2-3 weeks View
LS-TCL-2562 0.124x, WD 159 mm, 1/2", C-mount $2,279.00 Ships in 2-3 weeks View
LS-TCL-2563 0.111x, WD 178 mm, 1/2", C-mount $2,459.00 Ships in 2-3 weeks View
LS-TCL-2564 0.1x, WD 230 mm, 1/2", C-mount $2,649.00 Ships in 2-3 weeks View
LS-TCL-2566 0.08x, WD 238 mm, 1/2", C-mount $3,139.00 Ships in 2-3 weeks View
