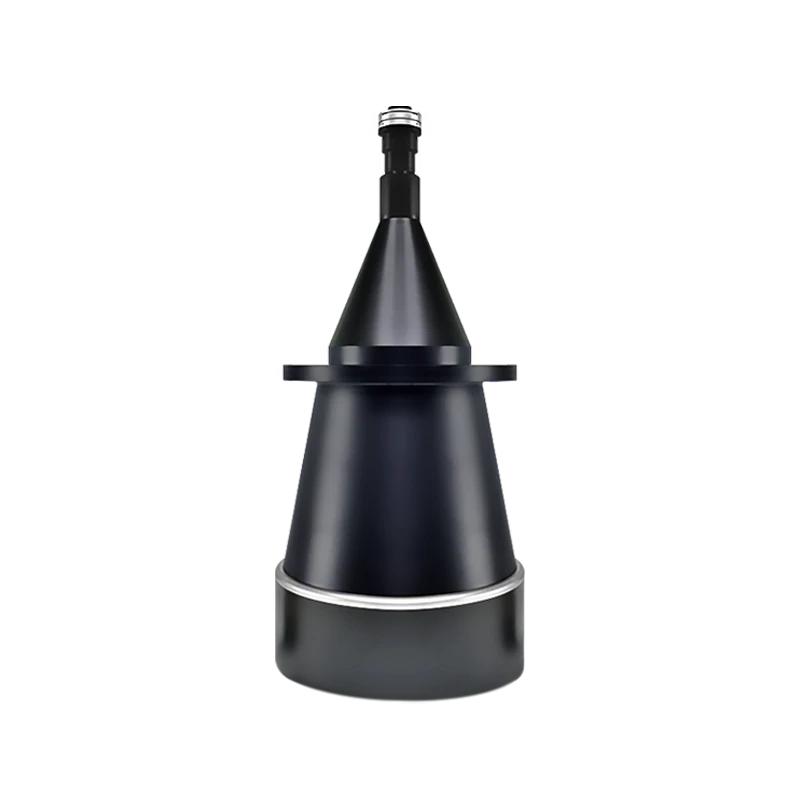

Representative photo of this series
Telecentric lenses
Bi-telecentric lens, large field, 0.24x, WD 120 mm, 2/3" (LS-TCL-2367)
Model LS-TCL-2367
- Magnification0.24
- Sensor2/3"
- Working distance120 mm
- Aperture8
$1,859.00
Ships in 2-3 weeks
1.03 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Dual telecentric lenses feature a wide range of optical magnifications and WD.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-2367 |
|---|---|
| Mag. (x) | 0.24 |
| WD (mm) | 120 |
| F/NO | 8 |
| DOF (mm) | 15 |
Optics
| Telecentric degree | 0.05 |
|---|---|
| Distortion | 0.05 |
| Magnification | 0.24 |
| Working distance (mm) | 120 |
| Aperture | 8 |
Sensor and imaging
| Sensor format | 2/3" |
|---|
Mechanical
| Shipping weight | 1.03 kg |
|---|
Other models in the Bi-telecentric lens, large field (LS-TCL-S65) series
See all 30 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-TCL-2369 | 0.42x, WD 120 mm, 1.1" | $1,769.00 | Ships in 2-3 weeks | View |
| LS-TCL-2368 | 0.36x, WD 120 mm, 1.1" | $1,929.00 | Ships in 2-3 weeks | View |
| LS-TCL-2370 | 0.29x, WD 138 mm, 1.1" | $2,199.00 | Ships in 2-3 weeks | View |
| LS-TCL-2373 | 0.28x, WD 160 mm, 1.1" | $2,249.00 | Ships in 2-3 weeks | View |
| LS-TCL-2371 | 0.17x, WD 160 mm, 2/3" | $2,289.00 | Ships in 2-3 weeks | View |
| LS-TCL-2372 | 0.25x, WD 160 mm, 1.1" | $2,419.00 | Ships in 2-3 weeks | View |
| LS-TCL-2376 | 0.23x, WD 180 mm, 1.1" | $2,559.00 | Ships in 2-3 weeks | View |
| LS-TCL-2375 | 0.14x, WD 180 mm, 2/3" | $2,609.00 | Ships in 2-3 weeks | View |
| LS-TCL-2374 | 0.2x, WD 180 mm, 1.1" | $2,819.00 | Ships in 2-3 weeks | View |
| LS-TCL-2378 | 0.2x, WD 250 mm, 1.1" | $2,819.00 | Ships in 2-3 weeks | View |
| LS-TCL-2379 | 0.12x, WD 250 mm, 2/3" | $2,909.00 | Ships in 2-3 weeks | View |
| LS-TCL-2381 | 0.18x, WD 250 mm, 1.1" | $3,049.00 | Ships in 2-3 weeks | View |
| LS-TCL-2382 | 0.168x, WD 250 mm, 1.1" | $3,209.00 | Ships in 2-3 weeks | View |
| LS-TCL-2380 | 0.15x, WD 250 mm, 1" | $3,249.00 | Ships in 2-3 weeks | View |
| LS-TCL-2396 | 0.074x, WD 615 mm, 1/2", C-mount | $3,289.00 | Ships in 2-3 weeks | View |
| LS-TCL-2377 | 0.1x, WD 250 mm, 2/3" | $3,329.00 | Ships in 2-3 weeks | View |
| LS-TCL-2385 | 0.153x, WD 260 mm, 1.1" | $3,439.00 | Ships in 2-3 weeks | View |
| LS-TCL-2383 | 0.09x, WD 260 mm, 2/3" | $3,609.00 | Ships in 2-3 weeks | View |
| LS-TCL-2384 | 0.13x, WD 260 mm, 1" | $3,629.00 | Ships in 2-3 weeks | View |
| LS-TCL-2388 | 0.136x, WD 280 mm, 1.1" | $3,769.00 | Ships in 2-3 weeks | View |
| LS-TCL-2387 | 0.12x, WD 280 mm, 1" | $3,859.00 | Ships in 2-3 weeks | View |
| LS-TCL-2386 | 0.08x, WD 280 mm, 2/3" | $3,959.00 | Ships in 2-3 weeks | View |
| LS-TCL-2391 | 0.123x, WD 320 mm, 1.1" | $4,089.00 | Ships in 2-3 weeks | View |
| LS-TCL-2389 | 0.11x, WD 320 mm, 1" | $4,139.00 | Ships in 2-3 weeks | View |
