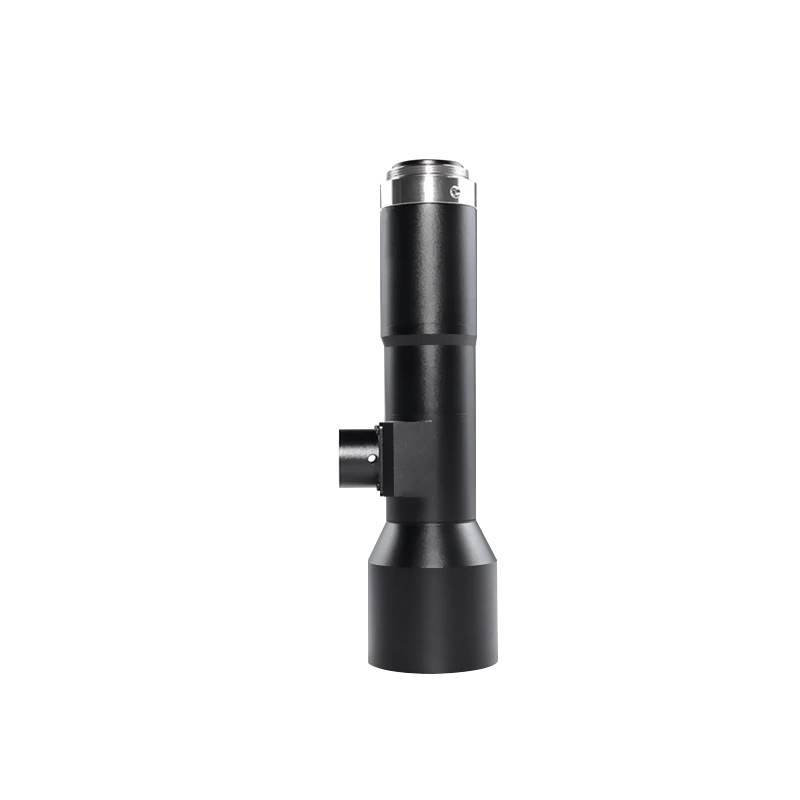

Bi-telecentric lens for 1.1" sensor, 1.5x, WD 110 mm, C-mount (LS-TCL-2980)
  • Bi-telecentric lens for 1.1" sensor, 1.5x, WD 110 mm, C-mount (LS-TCL-2980)
  • LS-TCL-2980 dimensions (mm)

Telecentric lenses

Bi-telecentric lens for 1.1" sensor, 1.5x, WD 110 mm, C-mount (LS-TCL-2980)

Model LS-TCL-2980

  • Magnification1.5
  • MountC-mount
  • Sensor1.1"
  • Working distance110 mm
  • ApertureF11
  • Resolution25 million pixels
$1,549.00

In stock - ships the same business day (3 available, order by 2 PM ET)

0.6 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Bi-telecentric lens for 1.1" sensor, 1.5x, WD 110 mm, C-mount (LS-TCL-2980)LS-TCL-2980

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Bi-telecentric C-mount lens supporting 1.1" (dia. 19.5 mm) target-face cameras, with an ultra-low-distortion bilateral telecentric optical path, large depth of field and a hardware measurement error below 0.3 pixel over the full field of view.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-2980
TypeCoaxial Telecentric lens
DOF0.4mm
F/NOF11
Maximum View Distance12.3mm
Custom DesignSupported

Optics

Magnification1.5
MTF>0.3 (LP/mm)120
Telecentric degree<0.1°
Distortion<0.1%
Working distance (mm)110
ApertureF11

Sensor and imaging

Sensor size1.1" dia.18.5mm (table); text: 1.1" dia. 19.5 mm target face
Resolution25 million pixels
Sensor format1.1"dia. 18.5mm

Mechanical

MountC
Main MaterialAluminum Alloy + optical Glass
Shipping weight0.60 kg

Other models in the Bi-telecentric lens for 1.1" sensor (LS-TCL-S94) series

See all 25 models
ModelSize / key dataPriceAvailabilityLink
LS-TCL-2975 1x, WD 110 mm, 1.1", C-mount $1,129.00 4 in stock View
LS-TCL-2976 1x, WD 110 mm, 1.1", C-mount $1,129.00 2 in stock View
LS-TCL-2988 1x, WD 220 mm, 1.1", C-mount $1,129.00 2 in stock View
LS-TCL-2978 0.8x, WD 110 mm, 1.1", C-mount $1,209.00 4 in stock View
LS-TCL-2991 0.8x, WD 220 mm, 1.1", C-mount $1,209.00 2 in stock View
LS-TCL-2977 0.7x, WD 110 mm, 1.1", C-mount $1,269.00 2 in stock View
LS-TCL-2990 0.6x, WD 190 mm, 1.1", C-mount $1,349.00 4 in stock View
LS-TCL-2981 0.52x, WD 110 mm, 1.1", C-mount $1,429.00 4 in stock View
LS-TCL-2989 0.5x, WD 220 mm, 1.1", C-mount $1,459.00 2 in stock View
LS-TCL-2979 1.5x, WD 110 mm, 1.1", C-mount $1,469.00 5 in stock View
LS-TCL-2984 0.6x, WD 190 mm, 1.1" $1,479.00 3 in stock View
LS-TCL-2982 0.4x, WD 178 mm, 1.1", C-mount $1,619.00 2 in stock View
LS-TCL-2974 0.5x, WD 65 mm, 1.1" $1,619.00 2 in stock View
LS-TCL-2983 0.345x, WD 178 mm, 1.1", C-mount $1,749.00 2 in stock View
LS-TCL-2985 0.3x, WD 200 mm, 1.1", C-mount $1,889.00 5 in stock View
LS-TCL-2987 0.275x, WD 200 mm, 1.1", C-mount $1,989.00 5 in stock View
LS-TCL-2992 0.25x, WD 230 mm, 1.1", C-mount $2,109.00 5 in stock View
LS-TCL-2986 0.22x, WD 200 mm, 1.1", C-mount $2,289.00 5 in stock View
LS-TCL-2994 0.2x, WD 250 mm, 1.1", C-mount $2,439.00 3 in stock View
LS-TCL-2993 0.172x, WD 230 mm, 1.1", C-mount $2,699.00 3 in stock View
LS-TCL-2995 0.153x, WD 250 mm, 1.1", C-mount $2,939.00 2 in stock View
LS-TCL-2996 0.13x, WD 300 mm, 1.1", C-mount $3,309.00 5 in stock View
LS-TCL-2997 0.11x, WD 320 mm, 1.1", C-mount $3,759.00 4 in stock View
LS-TCL-2998 0.078x, WD 410 mm, 1.1", C-mount $6,039.00 2 in stock View
