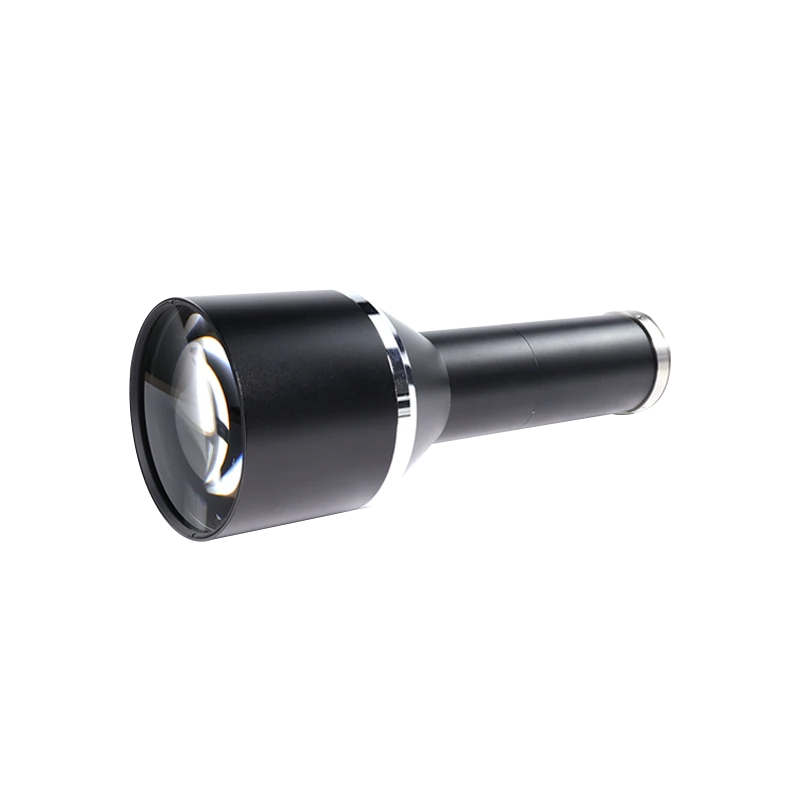

Bi-telecentric lens for 1.1" sensor (X11 series), 0.4x, WD 178 mm, 1.1", C-mount (LS-HF178-04X11)

Telecentric lenses

Bi-telecentric lens for 1.1" sensor, 0.4x, WD 178 mm, C-mount, 6 (LS-TCL-2982)

Model LS-TCL-2982

Magnification0.4
MountC-mount
Sensor1.1"
Working distance178 mm
Aperture6
Resolution25 million pixels

$1,619.00

In stock - ships the same business day (2 available, order by 2 PM ET)

0.9 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Bi-telecentric C-mount lens supporting 1.1" (dia. 19.5 mm) target-face cameras, with an ultra-low-distortion bilateral telecentric optical path, large depth of field and a hardware measurement error below 0.3 pixel over the full field of view.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-TCL-2982
Mag. (x)	0.4
WD (mm)	178
F/NO	6
DOF (mm)	3
Type	Telecentric lens
DOF	3.5mm
Maximum View Distance	46.25mm
Custom Design	Supported
Lighting mode	non-coaxial
DOF (mm)	3.5mm
View distance maximum (mm)	46.25
View distance 1" (12.8x9.6) (mm)	32x24
View distance 1.1" (14.2x10.4) (mm)	35.5x26

Optics

Telecentric degree	0.03
Distortion	0.03
Magnification	0.4
MTF>0.3 (LP/mm)	180
Telecentric degree	<0.05°
Distortion	<0.02%
Magnification (x)	0.4
Working distance (mm)	178
Iris (F)	F6
Telecentricity (°)	<0.05
Optical distortion (%)	<0.02%
Aperture	6
Field of view	35.5x26 mm (on 1.1" sensor)

Sensor and imaging

Sensor size	1.1" dia.18.5mm (table); text: 1.1" dia. 19.5 mm target face
Resolution	25 million pixels
Sensor Size	1.1"dia. 18.5mm
Sensor format	1.1"

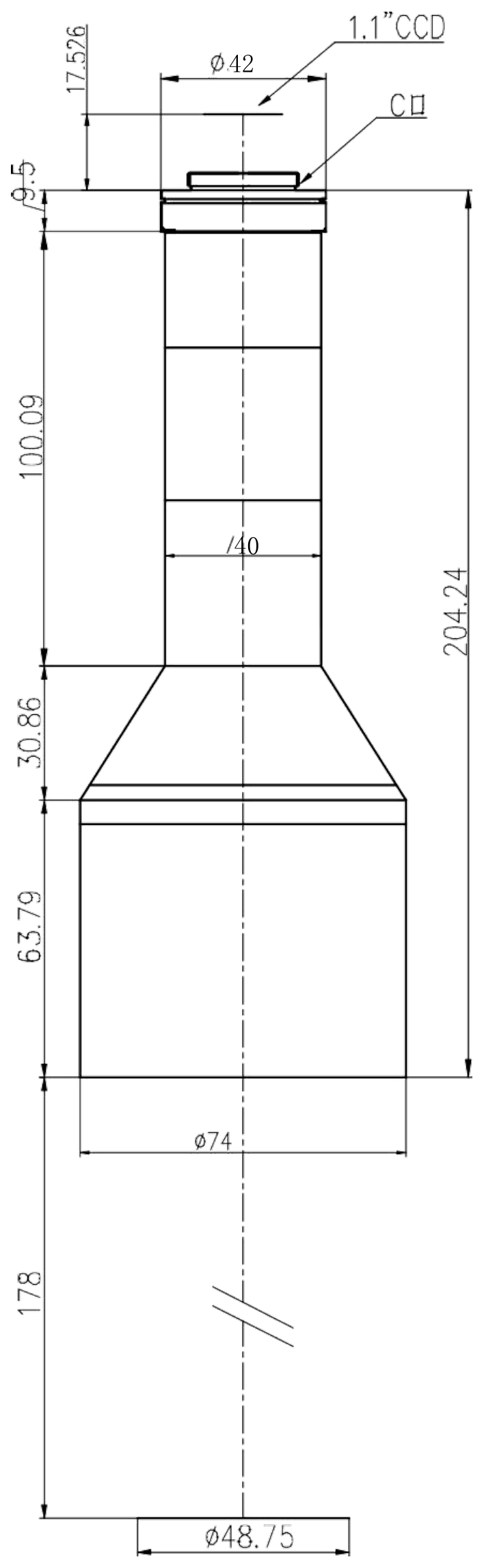

Mechanical

Mount	C
Main Material	Aluminum Alloy + optical Glass
Shipping weight	0.90 kg

Downloads

Datasheet (PDF)LS-TCL-2982 · 1.4 MB

Features

Maximum support for a 1.1" dia. 19.5 mm target face camera
Excellent bilateral telecentric optical path, ultra low distortion design
Large depth of field design for high and low difference imaging products
High-precision tuning: hardware measurement error in the full field of view is <0.3 pixel
Lightweight fastening structure designed to perform stably at high speed
25 million pixels
Coaxial version available (C suffix, LS-TCL-2976)
WD=178mm, Magnification 0.4X, DOF 3.5mm, Distortion TV<0.02%.
Eliminate parallax and distortion ‌.
Compact Metallic construction; Multi-layer Coating; Magnification does not change with respect to depth.
Suitable for mechanical parts measurement, electronic components inspection, glass inspection and other special applications.

Applications

Imaging products with high and low differences (large depth of field)

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Build a system with this part Configure a system Ask an engineer

Other models in the Bi-telecentric lens for 1.1" sensor (LS-TCL-S94) series

See all 25 models
