0.112× Vertical telecentric lens, 2/3", C-mount (LS-TCL-0444)

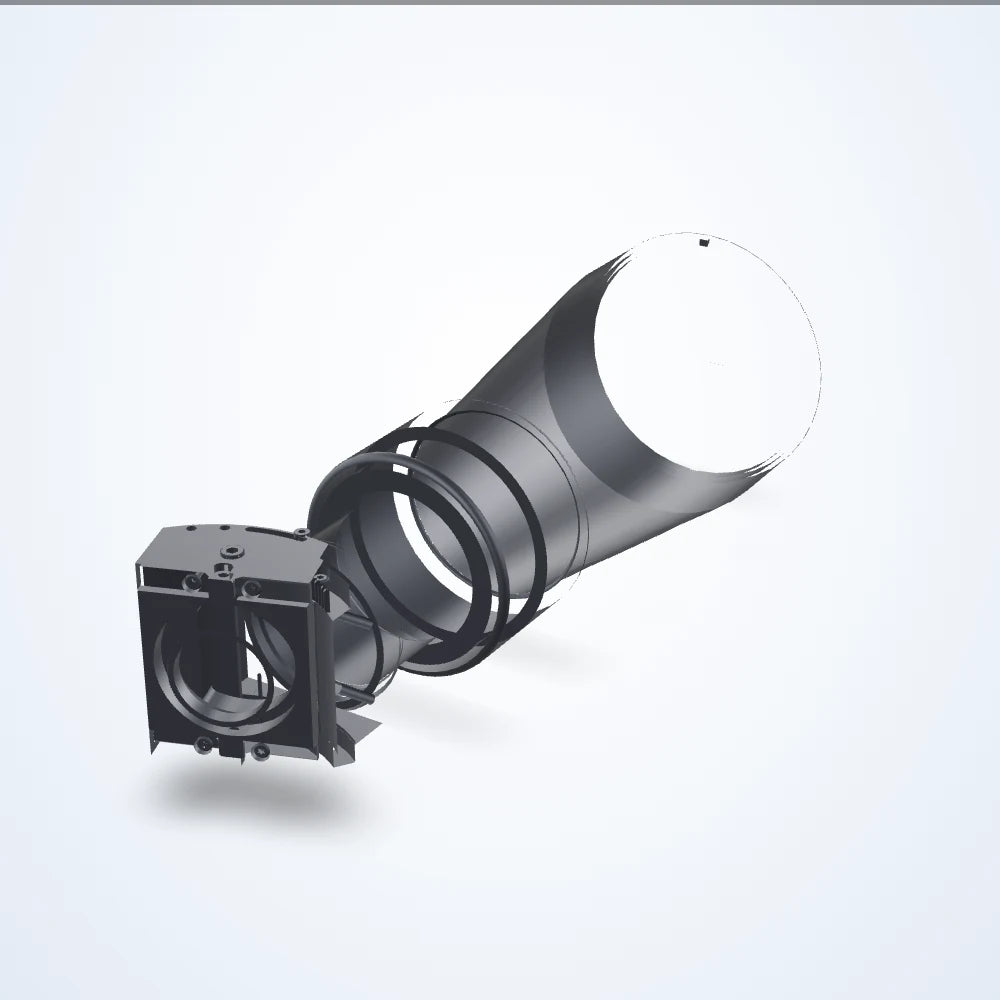

  • 0.112× Vertical telecentric lens, 2/3", C-mount (LS-TCL-0444)

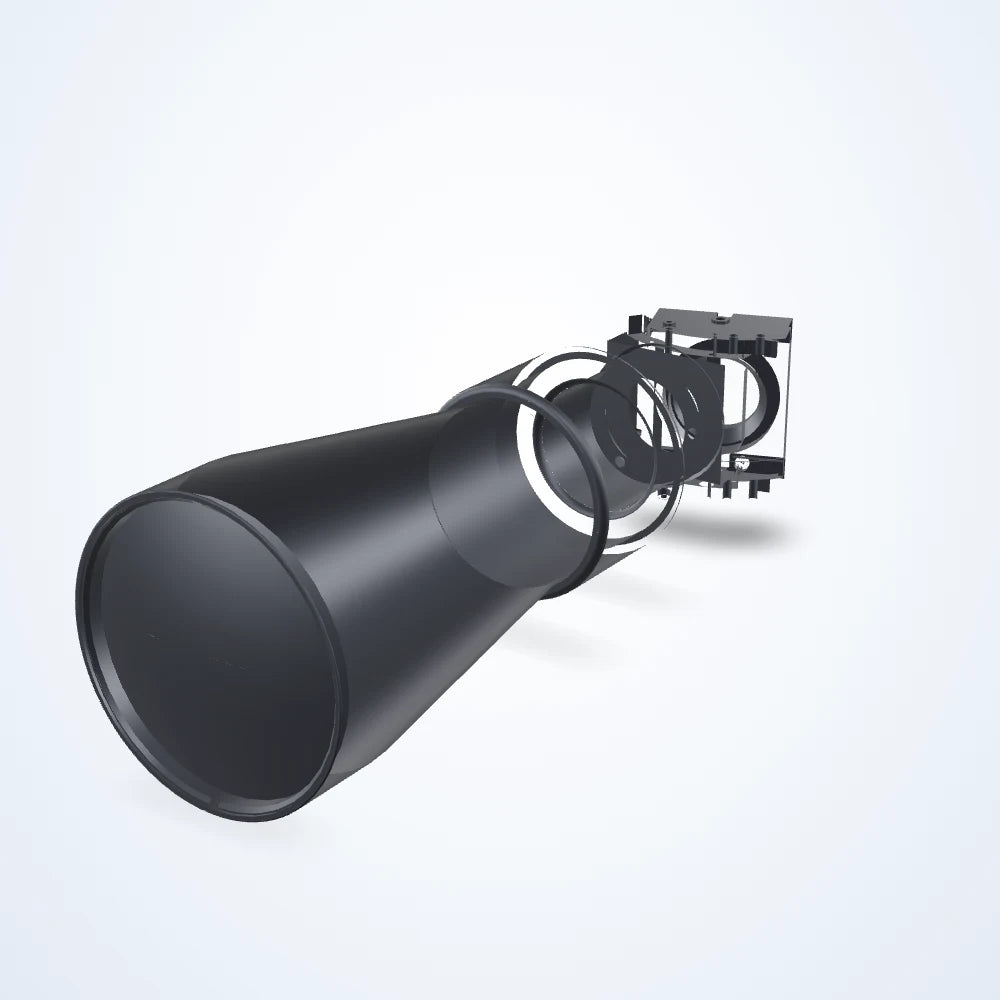

  • 0.112× Vertical telecentric lens, 2/3", C-mount (LS-TCL-0444) - view 2

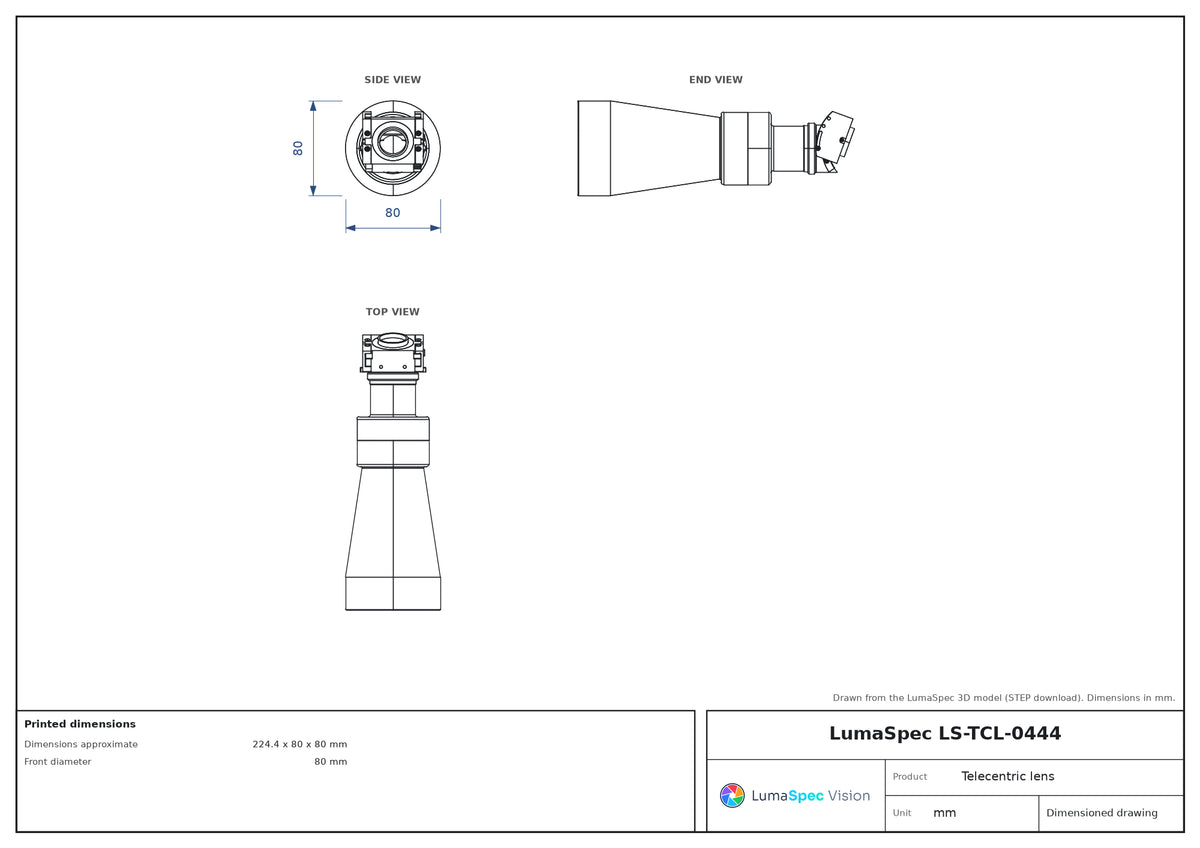

  • LS-TCL-0444 dimensions (mm)

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.112× Vertical telecentric lens, 2/3", C-mount (LS-TCL-0444)

Model LS-TCL-0444

  • Magnification0.112× Vertical
  • MountC-mount
  • Sensor2/3"
  • Working distance157.8 mm
$3,239.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Lead time confirmed with your quote

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Request a quote

0.112× Vertical telecentric lens, 2/3", C-mount (LS-TCL-0444)LS-TCL-0444

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 157.8 mm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-0444
Fov detector long side horizontal @ 1/1.8″040.76 x 30.57 mm - 40.76 x 31.58 mm - 40.76 x 35.04 mm - 40.76 x 42.86
Fov detector long side horizontal @ 1/2.0″40.76 x 30.57 - 40.76 x 31.58 - 40.76 x 35.04 - 40.76 x 42.86
Fov detector long side horizontal @ 1/2.5″36.31 x 27.26 - 36.31 x 28.16 - 36.31 x 31.24 - 36.31 x 38.21
Fov detector long side horizontal @ 1/2″40.76 x 30.57 40.76 x 31.58 40.76 x 35.04 40.76 x 42.86
Fov detector long side horizontal @ 1/3.0″30.57 x 22.93 mm - 30.57 x 23.68 mm - 30.57 x 26.28 mm - 30.57 x 32.14 mm
Fov detector long side horizontal @ 1/3″30.57 x 22.93 mm 30.57 x 23.68 mm 30.57 x 26.28 mm 30.57 x 32.14 mm
Fov detector long side horizontal @ 2/3.0″54.14 x 45.16 mm - 54.14 x 46.64 mm - 54.14 x 51.75 mm - 54.14 x 63.30 mm
Fov detector long side horizontal @ 2/3″54.14 x 45.16 mm 54.14 x 46.64 mm 54.14 x 51.75 mm 54.14 x 63.3 mm
Fov detector long side vertical @ 1/1.8″30.57 x 27.26 mm - 31.58 x 27.26 mm - 35.04 x 27.26 mm - 42.86 x 27.26
Fov detector long side vertical @ 1/2.0″ (mm)30.57 x 40.76
Fov detector long side vertical @ 1/2.5″27.26 x 36.31 - 27.26 x 37.5 - 27.26 x 41.61 - 27.26 x 50.89
Fov detector long side vertical @ 1/2″30.57 x 40.76 30.57 x 42.11 30.57 x 46.72 30.57 x 57.14
Fov detector long side vertical @ 1/3.0″22.93 x 30.57 mm - 22.93 x 31.58 mm - 22.93 x 35.04 mm - 22.93 x 42.86 mm
Fov detector long side vertical @ 1/3″22.93 x 30.57 mm 22.93 x 31.58 mm 22.93 x 35.04 mm 22.93 x 42.86 mm
Fov detector long side vertical @ 2/3″45.16 x 54.14 mm - 45.16 x 55.92 mm - 45.16 x 62.04 mm - 45.16 x 75.89 mm
Lens typeTelecentric
Object tilt0 ° 15 ° 30 ° 45 °
Working ƒ/nf/8

Optics

Magnification0.112× Vertical
Working distance157.8 mm
Distortion maximum (%)< 0.08
Distortion typical (%)< 0.03
Filter threadNo Filter Threads
Horizontal magnification0.157 0.157 0.157 0.157
Telecentricity maximum0.08°
Telecentricity typical< 0.05°
Vertical magnification0.157 0.152 0.137 0.112

Sensor and imaging

Sensor format2/3"

Environment and compliance

Operating temperature range0 to 40°C
Storage temperature range0 to 50°C

Mechanical

MountC-mount
Dimensions approximate224.4 x 80 x 80 mm
Front diameter80 mm
Mount tilt0 ° 2.4 ° 5.1 ° 8.8 °
Mount tilt maximum20 °
Weight1021 Grams
