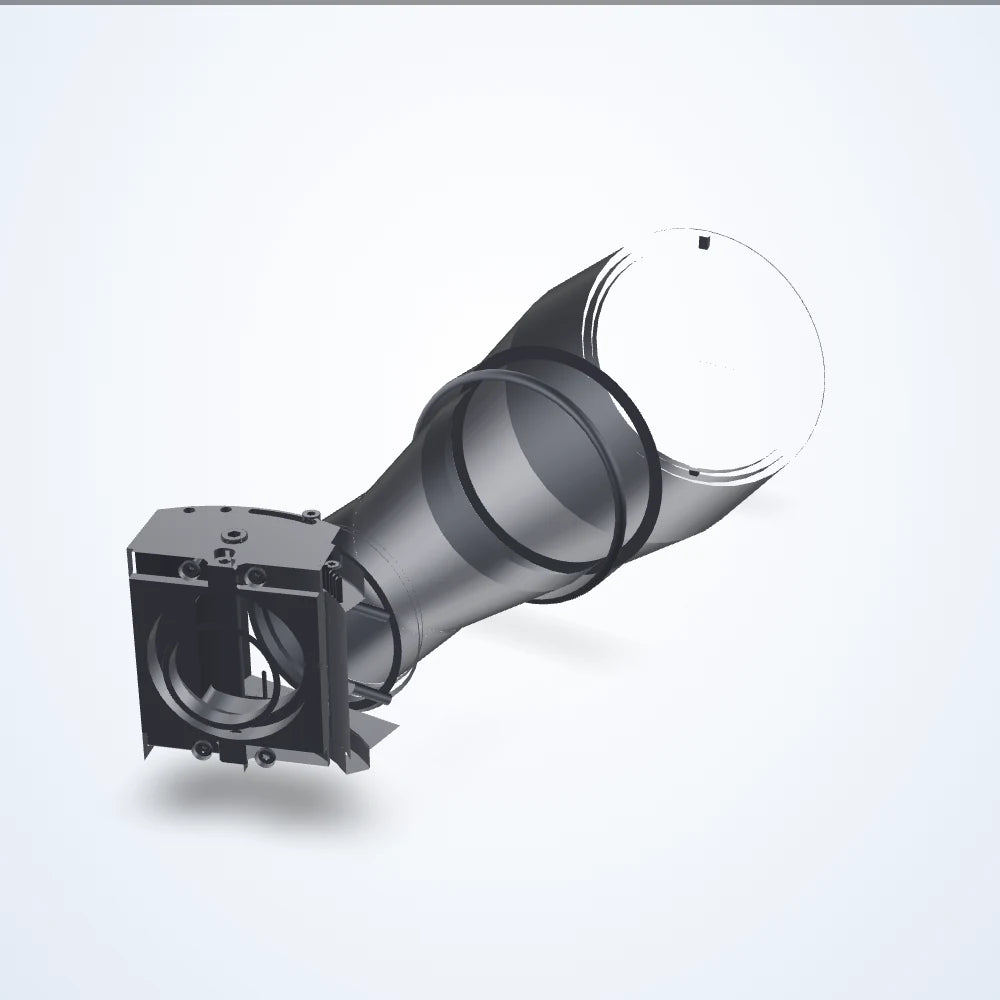

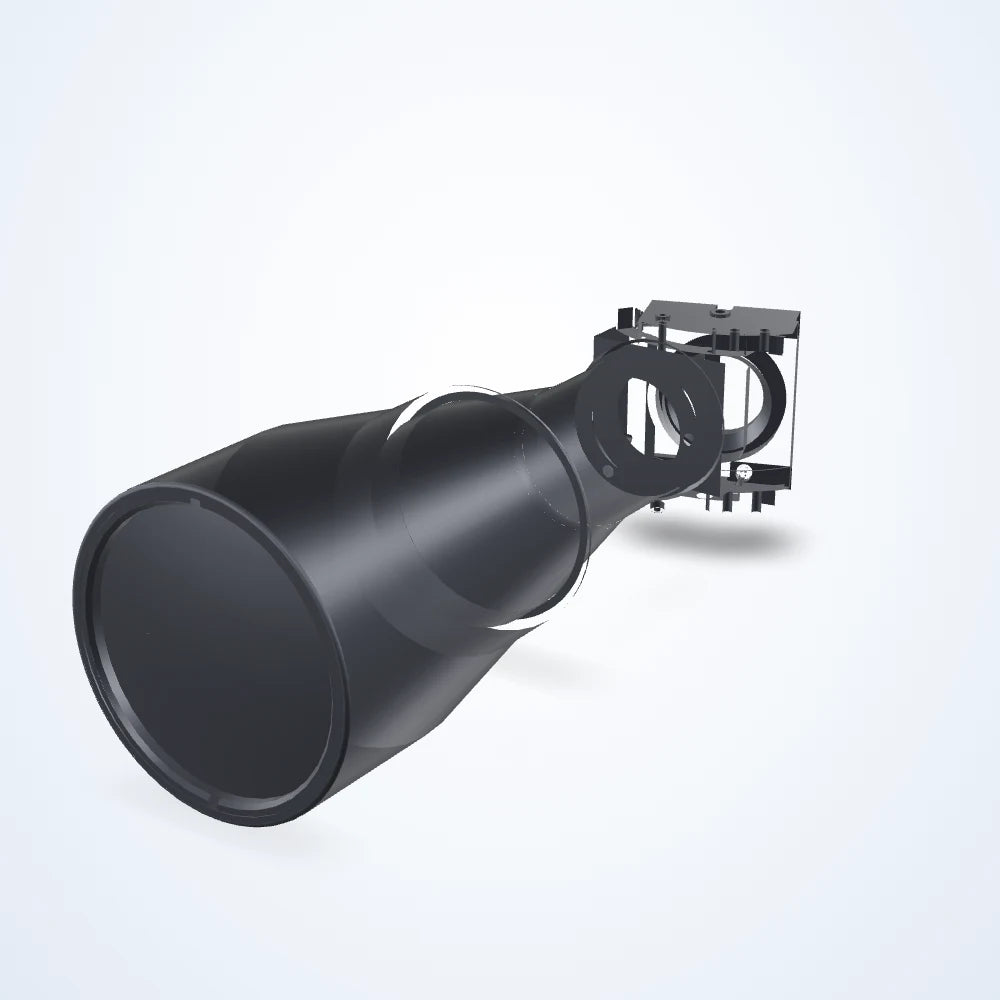

  • 0.133× Vertical telecentric lens, 2/3", C-mount (LS-TCL-0443) - view 2

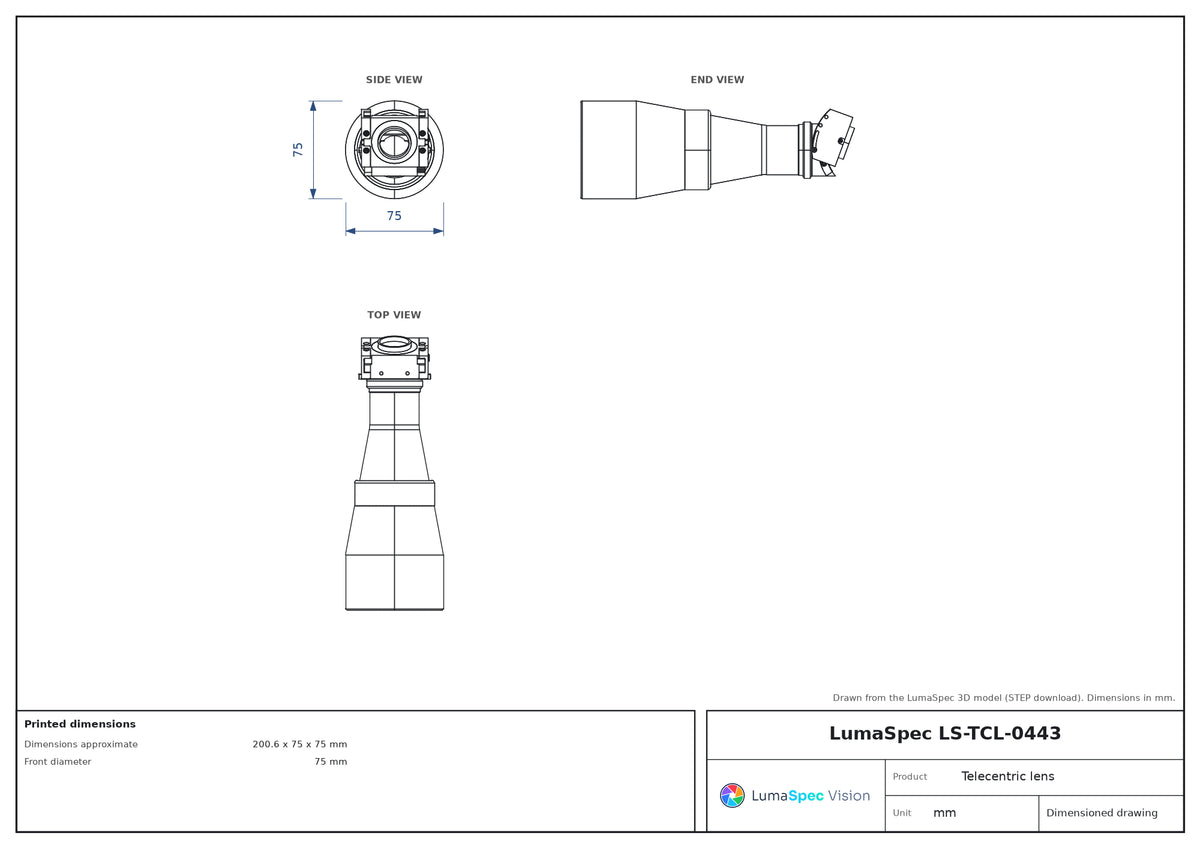

  • LS-TCL-0443 dimensions (mm)

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.133× Vertical telecentric lens, 2/3", C-mount (LS-TCL-0443)

Model LS-TCL-0443

  • Magnification0.133× Vertical
  • MountC-mount
  • Sensor2/3"
  • Working distance132.9 mm
$3,099.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Lead time confirmed with your quote

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Request a quote

0.133× Vertical telecentric lens, 2/3", C-mount (LS-TCL-0443)LS-TCL-0443

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 132.9 mm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-0443
Fov detector long side horizontal @ 1/1.8″038.54 x 28.81 mm - 38.54 x 29.78 mm - 38.54 x 33.11 mm - 38.54 x 40.08
Fov detector long side horizontal @ 1/2.0″34.59 x 25.95 - 34.59 x 26.82 - 34.59 x 29.81 - 34.59 x 36.09
Fov detector long side horizontal @ 1/2.5″30.81 x 23.14 - 30.81 x 23.91 - 30.81 x 26.58 - 30.81 x 32.18
Fov detector long side horizontal @ 1/2″34.59 x 25.95 34.59 x 26.82 34.59 x 29.81 34.59 x 36.09
Fov detector long side horizontal @ 1/3.0″25.95 x 19.4 mm - 625.95 x 20.11 mm - 25.95 x 22.36 mm - 25.95 x 27.07 mm
Fov detector long side horizontal @ 1/3″25.95 x 19.4 mm 625.95 x 20.11 mm 25.95 x 22.36 mm 25.95 x 27.07 mm
Fov detector long side horizontal @ 2/3.0″45.95 x 38.32 mm - 45.95 x 39.61 mm - 45.95 x 44.04 mm - 45.95 x 53.31 mm
Fov detector long side horizontal @ 2/3″45.95 x 38.32 mm 45.95 x 39.61 mm 45.95 x 44.04 mm 45.95 x 53.31 mm
Fov detector long side vertical @ 1/1.8″25.95 x 23.14 mm - 26.82 x 23.14 mm - 29.81 x 23.14 mm - 36.09 x 23.14
Fov detector long side vertical @ 1/2.0″ (mm)025.95 x 34.59
Fov detector long side vertical @ 1/2.5″23.14 x 30.81 - 23.14 x 31.84 - 23.14 x 35.40 - 23.14 x 42.86
Fov detector long side vertical @ 1/2″25.95 x 34.59 25.95 x 35.75 25.95 x 39.75 25.95 x 48.12
Fov detector long side vertical @ 1/3.0″19.46 x 25.95 mm - 19.46 x 26.82 mm - 19.46 x 29.81 mm - 19.46 x 36.09 mm
Fov detector long side vertical @ 1/3″19.46 x 25.95 mm 19.46 x 26.82 mm 19.46 x 29.81 mm 19.46 x 36.09 mm
Fov detector long side vertical @ 2/3″38.32 x 45.95 mm - 38.32 x 47.49 mm - 38.32 x 52.80 mm - 38.32 x 63.91 mm
Lens typeTelecentric
Object tilt0 ° 15 ° 30 ° 45 °
Working ƒ/nf/8

Optics

Magnification0.133× Vertical
Working distance132.9 mm
Distortion maximum (%)< 0.1
Distortion typical (%)< 0.05
Filter threadNo Filter Threads
Horizontal magnification0.185 0.185 0.185 0.185
Telecentricity maximum0.10°
Telecentricity typical< 0.08°
Vertical magnification0.185 0.179 0.161 0.133

Sensor and imaging

Sensor format2/3"

Environment and compliance

Operating temperature range0 to 40°C
Storage temperature range0 to 50°C

Mechanical

MountC-mount
Dimensions approximate200.6 x 75 x 75 mm
Front diameter75 mm
Mount tilt0 ° 2.8 ° 6.1 ° 10.5 °
Mount tilt maximum20 °
Weight795 Grams

LS-TCL-0443

See this component from every angle.

CAD-based illustration; finish is representative.

Explore the visual library
LS-TCL-0443 — Telecentric lenses, View 1 Source CAD

FROM THE PRINTED SPECIFICATIONS

Magnification
0.133× Vertical
Sensor format
2/3"
Mount
C-mount
Working distance
132.9 mm

Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.

Other models in the Telecentric lens series, 2/3", C-mount (S30) series

See all 8 models
ModelSize / key dataPriceAvailabilityLink
LS-TCL-0440 0.478× Vertical $2,539.00 Quote Lead time confirmed with your quote View
LS-TCL-0441 0.262× Vertical $2,679.00 Quote Lead time confirmed with your quote View
LS-TCL-0442 0.177× Vertical $2,819.00 Quote Lead time confirmed with your quote View
LS-TCL-0444 0.112× Vertical $3,239.00 Quote Lead time confirmed with your quote View
LS-TCL-0445 0.098× Vertical $3,519.00 Quote Lead time confirmed with your quote View
LS-TCL-0446 0.078× Vertical $4,219.00 Quote Lead time confirmed with your quote View
LS-TCL-0447 0.066× Vertical $5,379.00 Quote Lead time confirmed with your quote View
