0.134× telecentric lens, 1/1.2", C-mount (LS-TCL-0229)
  • 0.134× telecentric lens, 1/1.2", C-mount (LS-TCL-0229)

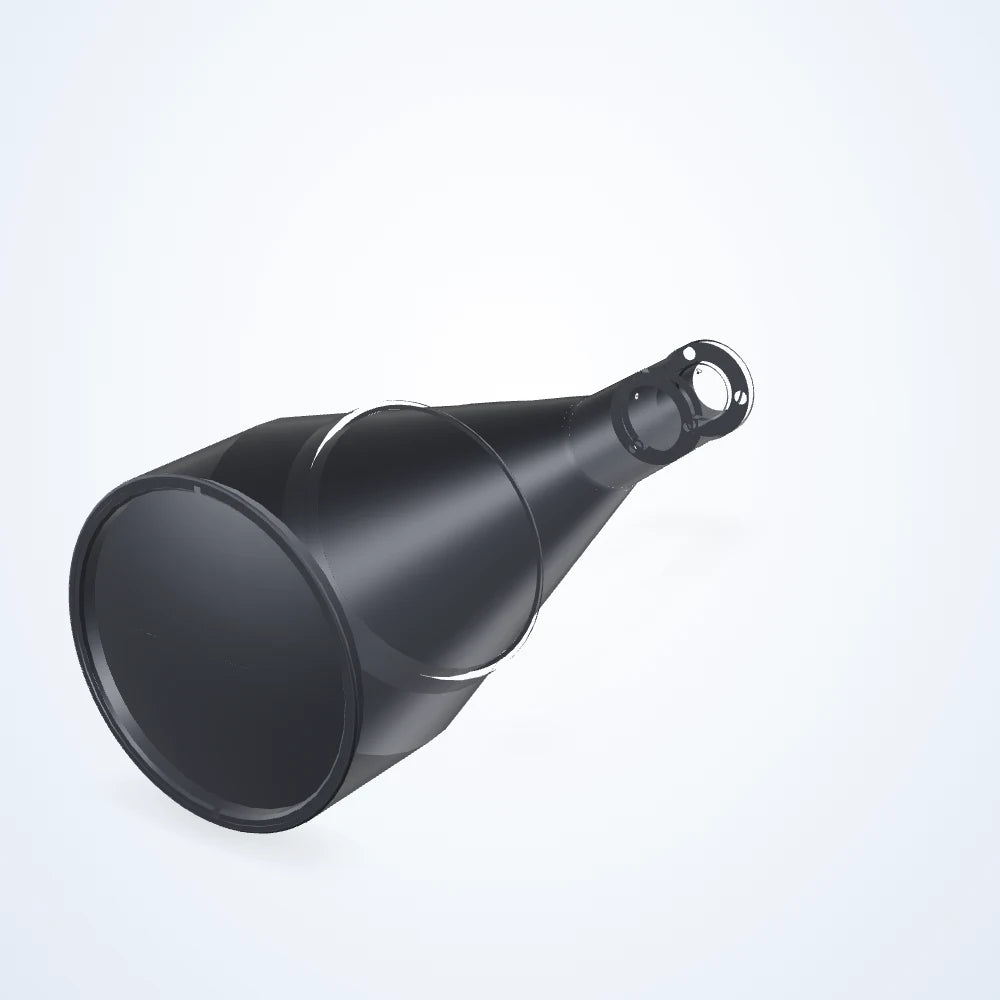

  • 0.134× telecentric lens, 1/1.2", C-mount (LS-TCL-0229) - view 2

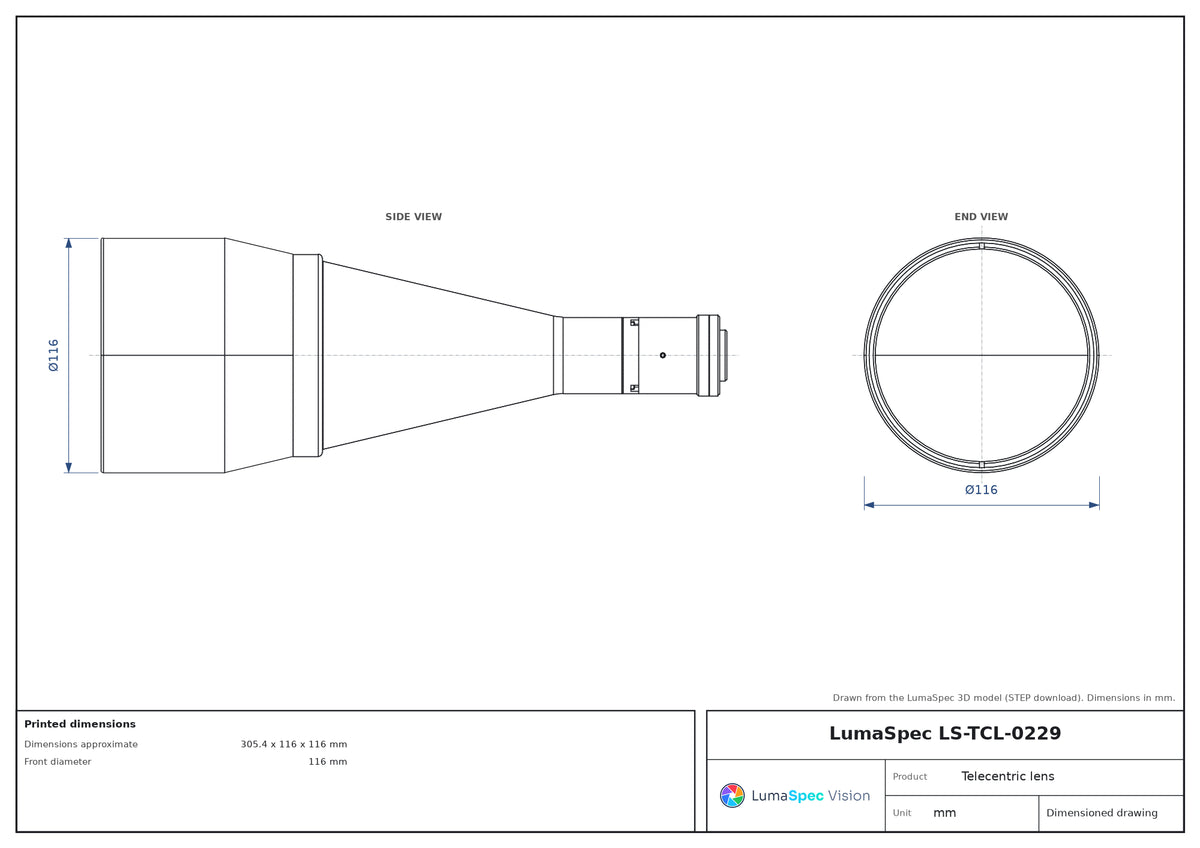

  • LS-TCL-0229 dimensions (mm)

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.134× telecentric lens, 1/1.2", C-mount, FOV 84.70 x 53.21 mm (LS-TCL-0229)

Model LS-TCL-0229

  • Magnification0.134×
  • MountC-mount
  • Sensor1/1.2"
  • Working distance226.8 mm
  • Resolution38 μm
$3,919.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Lead time confirmed with your quote

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Request a quote

0.134× telecentric lens, 1/1.2", C-mount, FOV 84.70 x 53.21 mm (LS-TCL-0229)LS-TCL-0229

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 226.8 mm; depth of field 23.1 mm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-0229
Fov @ 1.2″84.70 x 53.21 mm
FOV @ 1/1.8″53.21 x 39.78 mm
FOV @ 2/3″63.43 x 52.91 mm
Lens typeTelecentric
Working ƒ/nf/8

Optics

Magnification0.134×
Working distance226.8 mm
Depth of field23.1 mm
Distortion maximum (%)< 0.1
Distortion typical (%)< 0.08
Filter threadNo Filter Threads
Image circle13.3 mm
Telecentricity maximum0.10°
Telecentricity typical< 0.08°

Sensor and imaging

Sensor format1/1.2"
Resolution (pixel size)38 μm

Environment and compliance

Operating temperature range0 to 40°C
Storage temperature range0 to 50°C

Mechanical

MountC-mount
Dimensions approximate305.4 x 116 x 116 mm
Front diameter116 mm
Weight1475 Grams

LS-TCL-0229

See this component from every angle.

CAD-based illustration; finish is representative.

Explore the visual library

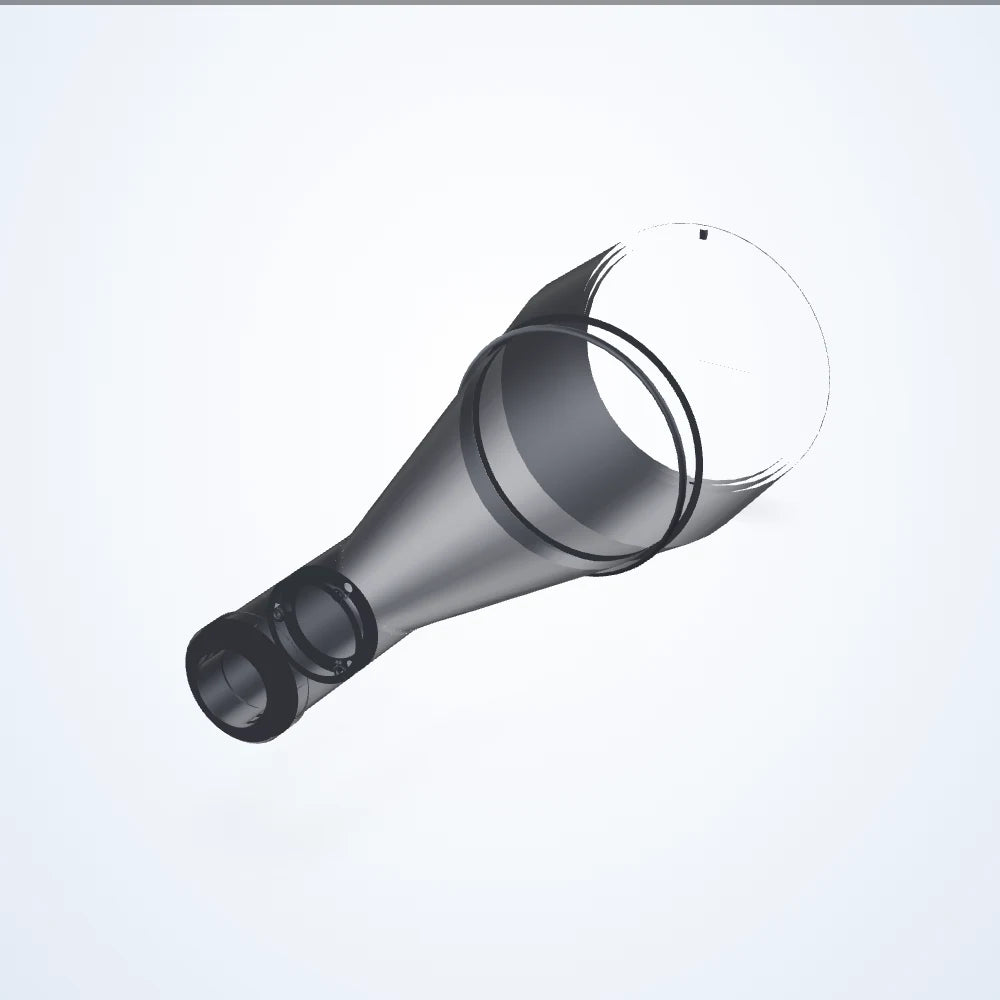

LS-TCL-0229 — Telecentric lenses, View 1 Source CAD

FROM THE PRINTED SPECIFICATIONS

Magnification
0.134×
Sensor format
1/1.2"
Mount
C-mount
Working distance
226.8 mm

Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.

Other models in the Telecentric lens series, 1/1.2", C-mount (S14) series

See all 12 models
ModelSize / key dataPriceAvailabilityLink
LS-TCL-0223 0.639× $2,349.00 Quote Lead time confirmed with your quote View
LS-TCL-0224 0.424× $2,489.00 Quote Lead time confirmed with your quote View
LS-TCL-0225 0.295× $2,749.00 Quote Lead time confirmed with your quote View
LS-TCL-0226 0.222× $2,879.00 Quote Lead time confirmed with your quote View
LS-TCL-0227 0.19× $3,139.00 Quote Lead time confirmed with your quote View
LS-TCL-0228 0.166× $3,399.00 Quote Lead time confirmed with your quote View
LS-TCL-0230 0.114× $4,739.00 Quote Lead time confirmed with your quote View
LS-TCL-0231 0.087× $5,909.00 Quote Lead time confirmed with your quote View
LS-TCL-0232 0.074× $7,229.00 Quote Lead time confirmed with your quote View
LS-TCL-0233 0.056× $11,619.00 Quote Lead time confirmed with your quote View
LS-TCL-0234 0.045× $15,619.00 Quote Lead time confirmed with your quote View
