Telecentric lenses

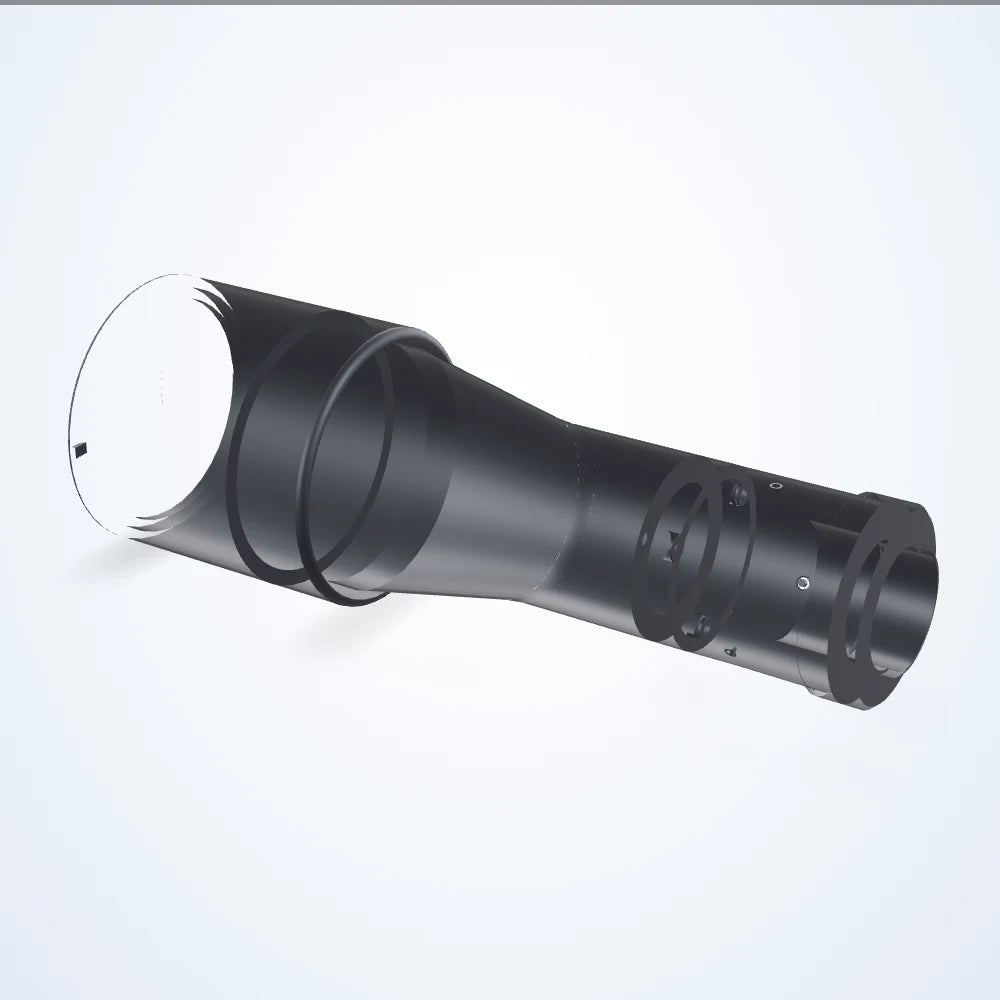

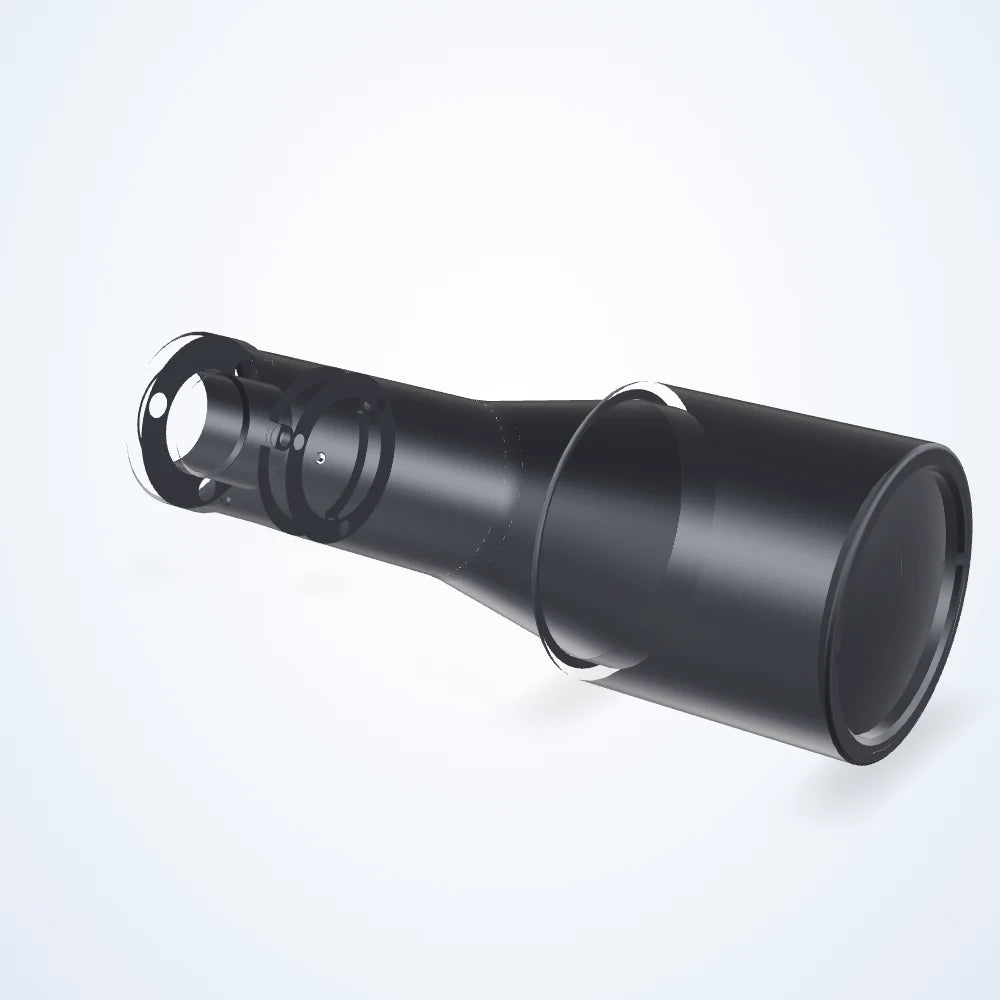

0.295× telecentric lens, 1/1.2", C-mount (LS-TCL-0225)
Model LS-TCL-0225
- Magnification0.295×
- MountC-mount
- Sensor1/1.2"
- Working distance102.6 mm
- Resolution24 μm
$2,749.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 102.6 mm; depth of field 6.5 mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-0225 |
|---|---|
| Fov @ 1.2″ | 38.47 x 24.17 mm |
| FOV @ 1/1.8″ | 24.17 x 18.07 mm |
| FOV @ 2/3″ | 28.81 x 24.03 mm |
| Lens type | Telecentric |
| Working ƒ/n | f/11 |
Optics
| Magnification | 0.295× |
|---|---|
| Working distance | 102.6 mm |
| Depth of field | 6.5 mm |
| Distortion maximum (%) | < 0.1 |
| Distortion typical (%) | < 0.08 |
| Filter thread | No Filter Threads |
| Image circle | 13.3 mm |
| Telecentricity maximum | 0.10° |
| Telecentricity typical | < 0.08° |
Sensor and imaging
| Sensor format | 1/1.2" |
|---|---|
| Resolution (pixel size) | 24 μm |
Environment and compliance
| Operating temperature range | 0 to 40°C |
|---|---|
| Storage temperature range | 0 to 50°C |

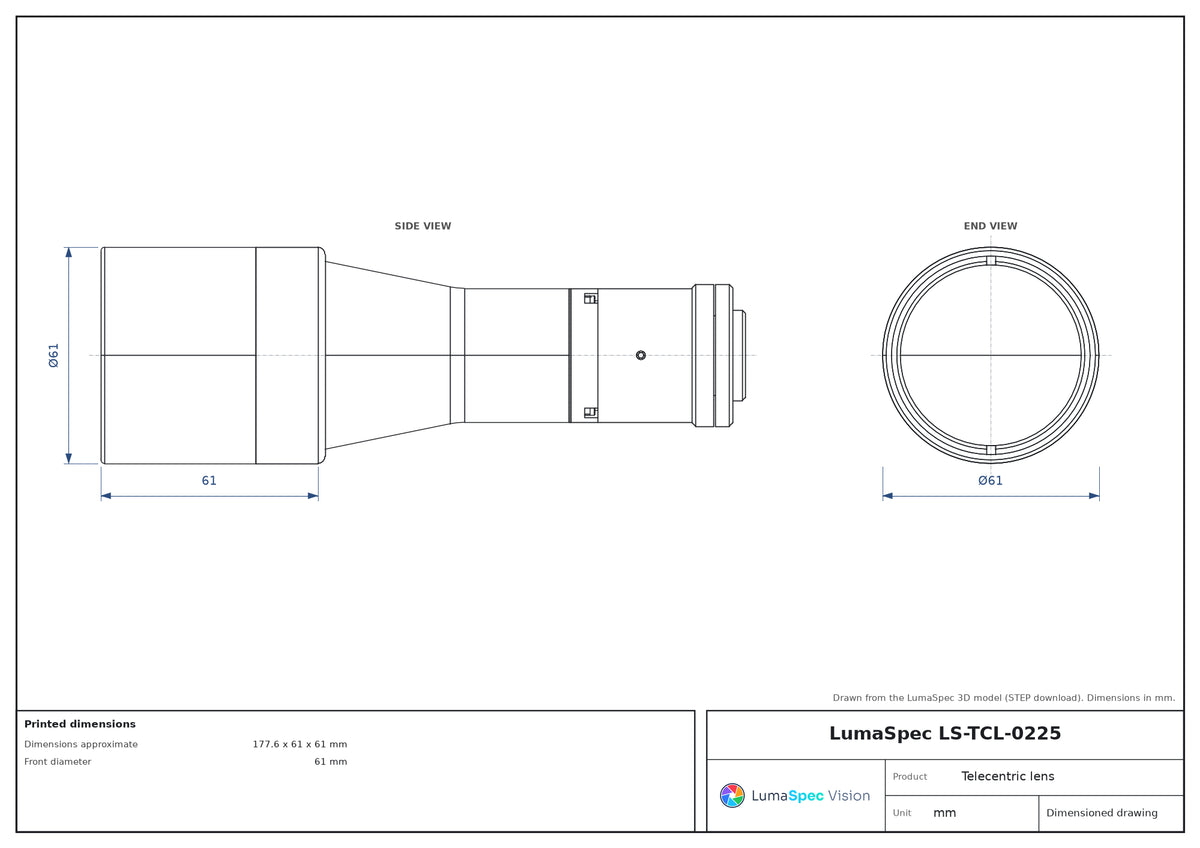

Mechanical
| Mount | C-mount |
|---|---|
| Dimensions approximate | 177.6 x 61 x 61 mm |
| Front diameter | 61 mm |
| Weight | 529 Grams |
