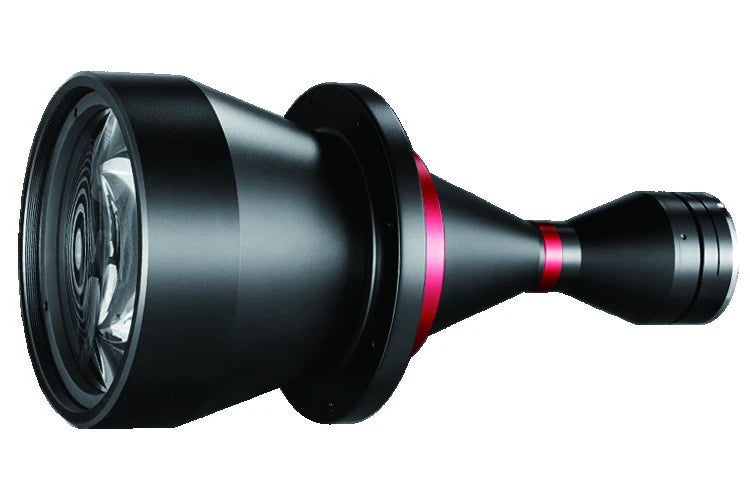

Bi-telecentric lens for 39mm cameras, 0.163x, WD 410 mm (LS-TCL-2790)
  • Bi-telecentric lens for 39mm cameras, 0.163x, WD 410 mm (LS-TCL-2790)

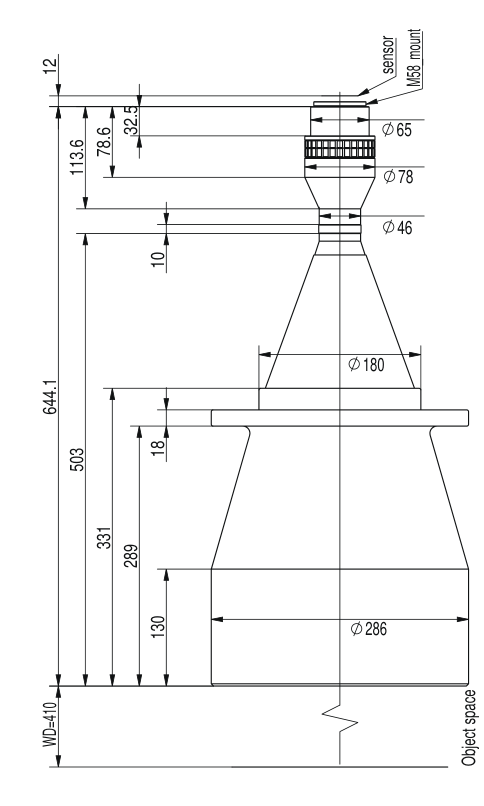

  • LS-TCL-2790 dimensions (mm)

Telecentric lenses

Bi-telecentric lens for 39mm cameras, 0.163x, WD 410 mm (LS-TCL-2790)

Model LS-TCL-2790

  • Magnification0.163x
  • MountF-mount
  • SensorAPS-H
  • Working distance410±5
  • Field of view240
$6,679.00

Ships in 2-3 weeks

25.86 kg shipping weight

Mount

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Bi-telecentric lens for 39mm cameras, 0.163x, WD 410 mm (LS-TCL-2790)LS-TCL-2790

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Bi-telecentric lens series for sensors up to 71M (39 mm dia.), F-Mount/Other. Models are named by object field of view (dia. mm); each lists magnification, working distance, F/#, MTF30, depth of field, distortion <0.1% and telecentricity <0.1°.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-2790

Optics

Distortion (% max)<0.1
Telecentricity (deg max)<0.1
F/#6.5
MTF30 (lp/mm)>80
Magnification (x)0.163
Working distance (mm)410±5
Depth of field (mm)±10
Field of view (dia. mm)240
Object-to-image distance I/O (mm)1090±6
Best Aperture (F/#)9.2
Field of view with CHR 70M (31.0x21.7 sensor) (mm x mm)190.2x133.1
Compatible telecentric led lightingLS-CLM-0089

Sensor and imaging

Max sensor size (dia. mm)39(71M)
Sensor format39 mm

Mechanical

MountF-Mount/Other
Length (mm)644.1
Weight (kg)18.4
MountM58

Other models in the Bi-telecentric lens for 39mm cameras (LS-TCL-S87) series

See all 23 models
ModelSize / key dataPriceAvailabilityLink
LS-TCL-2771 0.929x, WD 119 mm from $1,949.00 Ships in 2-3 weeks View
LS-TCL-2773 0.814x, WD 128 mm from $1,949.00 Ships in 2-3 weeks View
LS-TCL-2772 0.931x, WD 118 mm, F-mount $1,949.00 Ships in 2-3 weeks View
LS-TCL-2774 0.813x, WD 138 mm, F or Other-mount $1,949.00 Ships in 2-3 weeks View
LS-TCL-2769 1.503x, WD 72 mm from $2,029.00 Ships in 2-3 weeks View
LS-TCL-2770 1.08x, WD 111 mm from $2,049.00 Ships in 2-3 weeks View
LS-TCL-2775 0.698x, WD 138 mm from $2,149.00 Ships in 2-3 weeks View
LS-TCL-2776 0.613x, WD 187 mm from $2,289.00 Ships in 2-3 weeks View
LS-TCL-2777 0.61x, WD 159 mm from $2,299.00 Ships in 2-3 weeks View
LS-TCL-2780 0.488x, WD 230 mm, F-mount $2,449.00 Ships in 2-3 weeks View
LS-TCL-2781 0.434x, WD 208 mm, F-mount $2,469.00 Ships in 2-3 weeks View
LS-TCL-2778 0.543x, WD 178 mm from $2,479.00 Ships in 2-3 weeks View
LS-TCL-2779 0.487x, WD 229 mm from $2,669.00 Ships in 2-3 weeks View
LS-TCL-2783 0.393x, WD 238 mm, F-mount $2,669.00 Ships in 2-3 weeks View
LS-TCL-2782 0.419x, WD 254 mm from $3,009.00 Ships in 2-3 weeks View
LS-TCL-2784 0.351x, WD 251 mm from $3,439.00 Ships in 2-3 weeks View
LS-TCL-2785 0.325x, WD 280 mm, F or Other-mount $3,629.00 Ships in 2-3 weeks View
LS-TCL-2786 0.287x, WD 288 mm from $4,069.00 Ships in 2-3 weeks View
LS-TCL-2787 0.261x, WD 301 mm from $4,379.00 Ships in 2-3 weeks View
LS-TCL-2788 0.23x, WD 318 mm from $4,839.00 Ships in 2-3 weeks View
LS-TCL-2789 0.205x, WD 330 mm, F or Other-mount $5,379.00 Ships in 2-3 weeks View
LS-TCL-2791 0.13x, WD 465 mm, F or Other-mount $8,699.00 Quote Ships in 2-3 weeks View
