Telecentric lenses

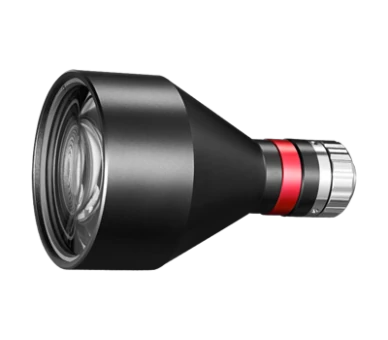

Bi-telecentric lens for 1/2.5" cameras, B variant, 0.08x, WD 208 mm, C-mount (LS-TCL-2601)
Model LS-TCL-2601
- MountC-mount
- Sensor1/2.5"
- Working distance208±2
- Field of view71.2x53.5
$2,879.00
Ships in 2-3 weeks
2.37 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
LS-TCL-S78 Series Bi-Telecentric Lenses are specially designed for high-precision application including metrology, inspection etc., these lenses feature a varity of FOV up to 300mm, customized design for 1/2.5" ~1.1" sensor, and bi-telecentric design for high quality imaging.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-2601 |
|---|---|
| Mag. | 0.080x |
| FOV | 90mm |
Optics
| Working distance (mm) | 208±2 |
|---|---|
| Best Aperture (F/#) | 4.2 |
| Telecentricity typical (max) (deg) | 0.1 |
| Distortion typical (max) (%) | 0.1 |
| MTF30 (lp/mm) | >189 |
| Depth of field (mm) | ±9 |
| Field of view with 9P001/31 (5.7x4.28 sensor) (mm x mm) | 71.2x53.5 |
Sensor and imaging
| Max sensor size (dia. mm) | 7.2(1/2.5") |
|---|
Interfaces and I/O
| Length of I/O (mm) | 423.3 |
|---|

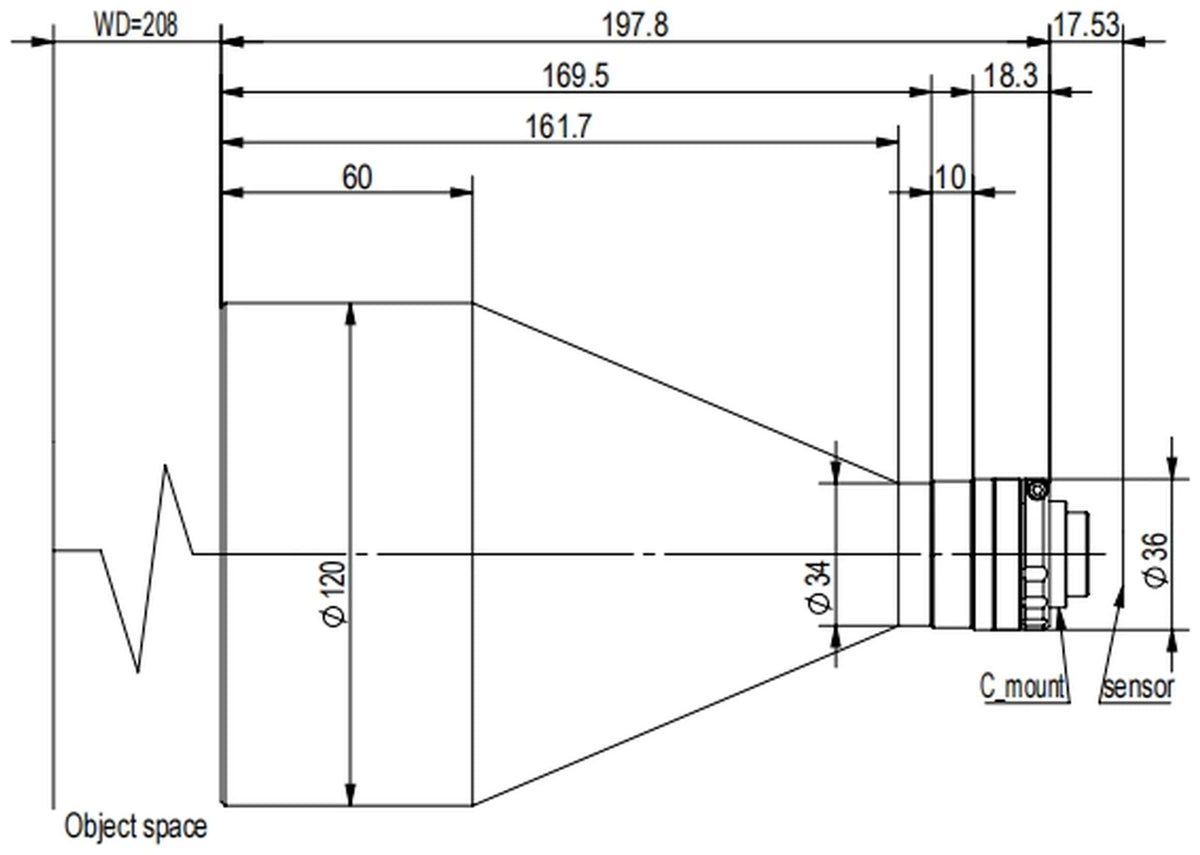

Mechanical
| Mount | C |
|---|---|
| Length (mm) | 197.8 |
| Weight (kg) | 1.62 |
Other models in the Bi-telecentric lens for 1/2.5" cameras - B variant (LS-TCL-S78) series
See all 10 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-TCL-2593 | 0.277x, WD 72 mm, 1/2.5", C-mount | $1,399.00 | Ships in 2-3 weeks | View |
| LS-TCL-2594 | 0.199x, WD 111 mm, 1/2.5", C-mount | $1,629.00 | Ships in 2-3 weeks | View |
| LS-TCL-2595 | 0.172x, WD 118 mm, 1/2.5", C-mount | $1,769.00 | Ships in 2-3 weeks | View |
| LS-TCL-2596 | 0.15x, WD 128 mm, 1/2.5", C-mount | $1,899.00 | Ships in 2-3 weeks | View |
| LS-TCL-2597 | 0.129x, WD 138 mm, 1/2.5", C-mount | $2,089.00 | Ships in 2-3 weeks | View |
| LS-TCL-2598 | 0.113x, WD 187 mm, 1/2.5", C-mount | $2,269.00 | Ships in 2-3 weeks | View |
| LS-TCL-2599 | 0.1x, WD 178 mm, 1/2.5", C-mount | $2,459.00 | Ships in 2-3 weeks | View |
| LS-TCL-2600 | 0.09x, WD 230 mm, 1/2.5", C-mount | $2,659.00 | Ships in 2-3 weeks | View |
| LS-TCL-2602 | 0.072x, WD 238 mm, 1/2.5", C-mount | $3,139.00 | Ships in 2-3 weeks | View |
