Bi-telecentric lens for 1" cameras, 1x, WD 24 mm, C-Mount (LS-TCL-2431)

Representative photo of this series

Telecentric lenses

Bi-telecentric lens for 1" cameras, 1x, WD 24 mm, C-Mount (LS-TCL-2431)

Model LS-TCL-2431

Magnification1.000x
MountC-mount
Sensor1"
Working distance24±1
Field of view16.6

$1,189.00

Ships in 2-3 weeks

0.38 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Bi-telecentric lens series for sensors up to 1" (16.6 mm dia.), C-Mount. Models are named by object field of view (dia. mm); each lists magnification, working distance, F/#, MTF30, depth of field, distortion <0.1% and telecentricity <0.1°.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-TCL-2431
Compatible lighting	Telecentric LED lighting VCL-16.6-xW-y (beam diameter 16.6 mm)

Optics

Distortion (% max)	<0.1
Telecentricity (deg max)	<0.1
Magnification (x)	1.000
Object field of view (dia. mm)	16.6
Working distance (mm)	24±1
Best Aperture (F/#)	6.5
MTF30 (lp/mm)	>125
Depth of field (mm)	±0.6@F16
Field of view with 12.85x9.64 KAI-04050 (mm)	12.9x9.6
Field of view with 11.26x11.26 CMV4000 (mm)	11.3x11.3
Field of view with 12.50x10.00 ICX674/694/814 (mm)	12.5x10.0

Sensor and imaging

Max sensor size (dia. mm)	16.6(1")
Sensor format	1"

Interfaces and I/O

Length of I/O (mm)	132±1

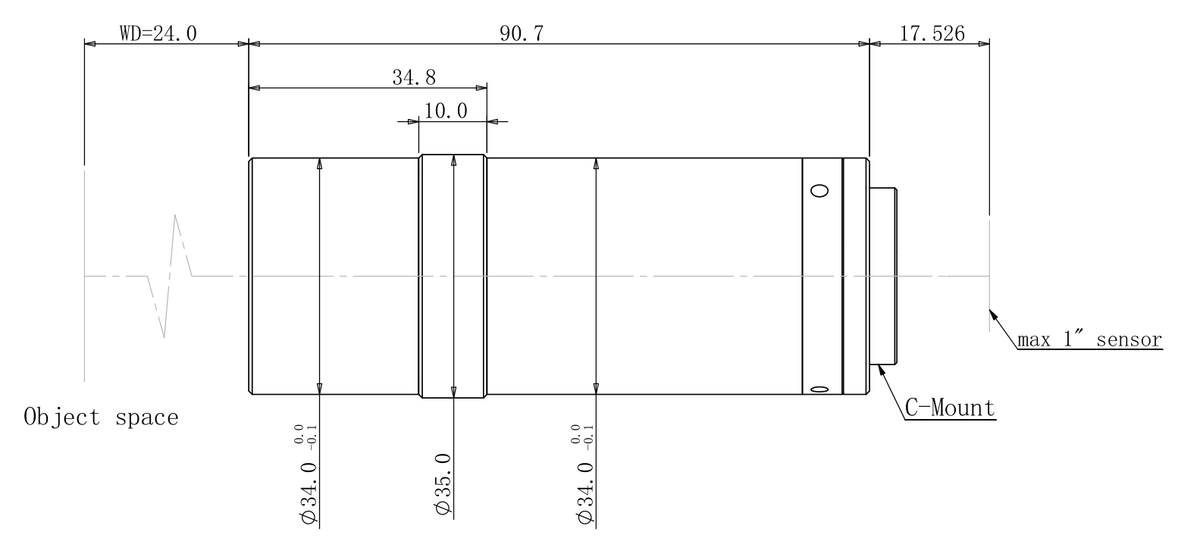

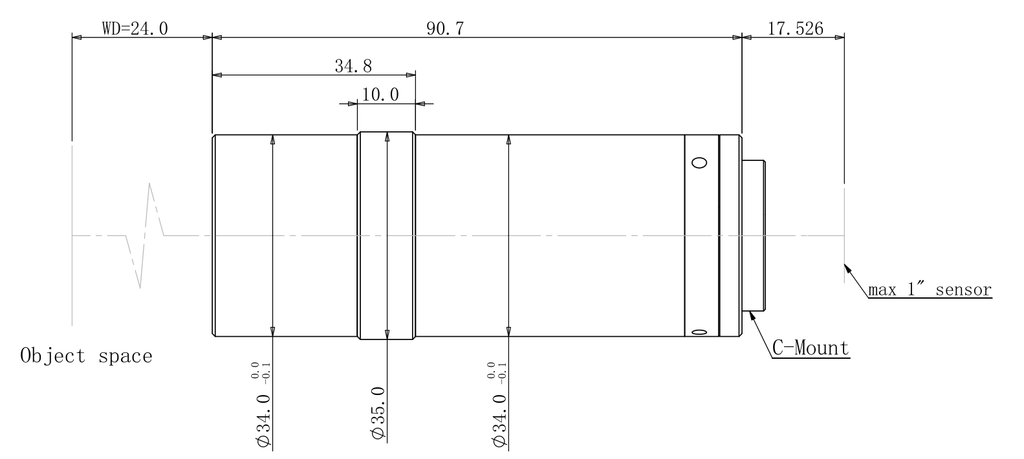

Mechanical

Mount	C-Mount
Length (mm)	90.7
Weight (kg)	0.2

Downloads

Datasheet (PDF)LS-TCL-2431 · 3.1 MB

Features

Matrix design with extremely high imaging quality
Standard FOV from 26 to 240 mm, covering almost all industrial imaging applications
Compatible with all C-mount cameras from 1/2.5" to 1.1", and F/M-mount cameras from 4/3" to 59 mm
More than 168 standard types and hundreds of customised items
Excellent F-number, high telecentricity, extremely low distortion, very large DoF
Each lens comes with an imaging quality test report
Lens mount with conveniently adjustable flange distance (AL)
Matrix-design with extremely high imaging quality
Compatible with all C mount cameras from 1/2.5" to 1.1", and F/M mount cameras from 4/3" to 59 mm
Excellent F number, high telecentricity, extremely low distortion, super large DoF
Each LS-TCL-S70 series lens comes with an imaging quality test report
Optimized for 1/2.5"~1.1" C-Mount cameras
Largest FOV from 26mm up to 300mm (series)
Excellent resolution for high pixel cameras
Low distortion, good telecentricity, big aperture and big depth of field for high end application

Applications

Industrial imaging applications (standard FOV 26 to 240 mm)
