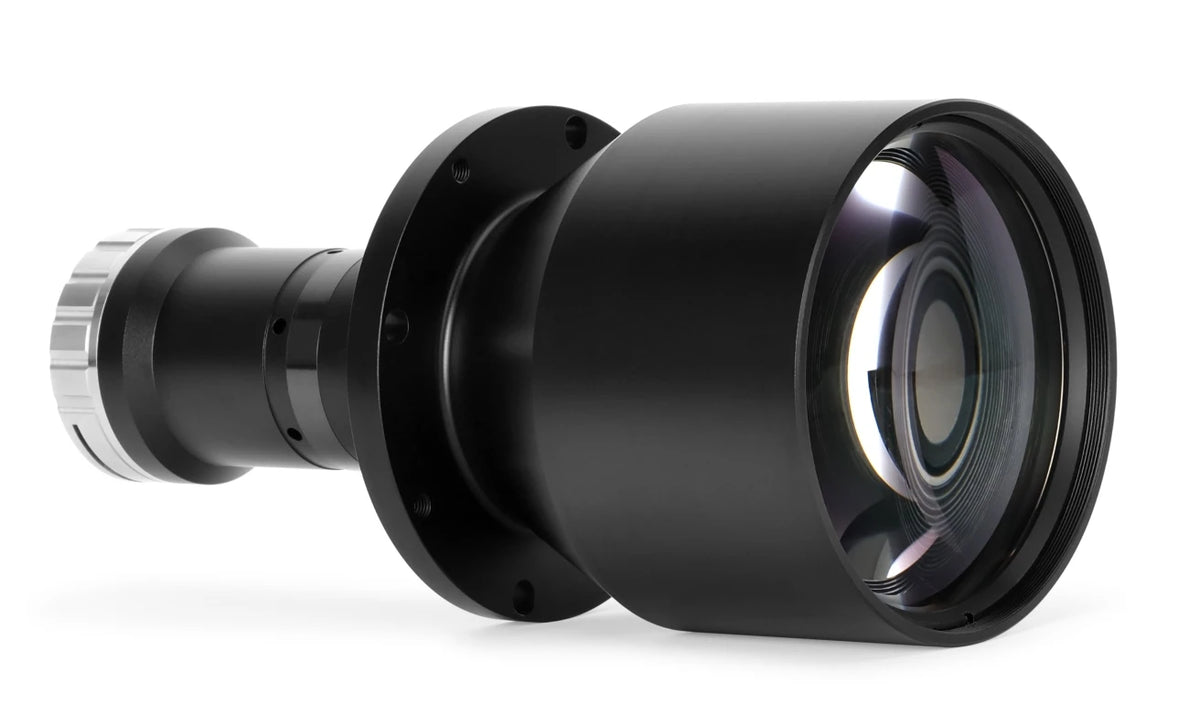

Representative photo of this series
Telecentric lenses
Bi-telecentric lens for 23x23mm sensor, 1.75x, WD 110 mm, F/M58-mount (LS-TCL-0468)
Model LS-TCL-0468
- Magnification1.75x
- MountF-mount
- Sensor1.5"
- Working distance110 mm
- ApertureF11
- Resolution25 million pixels
$2,139.00
In stock - ships the same business day (5 available, order by 2 PM ET)
1.18 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Bi-telecentric lens supporting target-face cameras up to 23 x 23 mm, with an ultra-low-distortion bilateral telecentric optical path, large depth of field and a hardware measurement error below 0.3 pixel over the full field of view.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-0468 |
|---|---|
| Lighting | non-coaxial |
| View distance maximum | 32.5 mm |
| WD (mm) | 110 |
| DOF (mm) | 0.3 |
| View distance maximum (mm) | 32.5 |
| View distance 1" (12.8x9.6) (mm) | 7.3x5.4 |
| View distance 1.1" (14.2x10.4) (mm) | 58x5.8 |
| View distance 4K linear array (28.7) (mm) | 13.1x13.1 |
Optics
| Magnification (x) | 1.75 |
|---|---|
| Aperture | F11 |
| MTF>0.3 (LP/mm) | 180 |
| Telecentricity (°) | <0.03° |
| Optical distortion (%) | <0.03° |
| Working distance (mm) | 110 |
| Field of view | 58x5.8 mm (on 1.1" sensor) |
Sensor and imaging
| Resolution | 25 million pixels |
|---|---|
| Sensor size (mm) | 23x23 dia.30 |
| Sensor format | 23x23 mm |
Mechanical
| Mount | F/M58 |
|---|---|
| Shipping weight | 1.18 kg |
Other models in the Bi-telecentric lens for 23x23mm sensor (LS-TCL-S34) series
See all 15 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-TCL-0467 | 1.4x, WD 110 mm, F/M58-mount | $1,489.00 | 3 in stock | View |
| LS-TCL-0472 | 0.9x, WD 175 mm, F/M58-mount | $1,679.00 | 5 in stock | View |
| LS-TCL-0466 | 0.8x, WD 110 mm, F/M58-mount | $1,739.00 | 2 in stock | View |
| LS-TCL-0469 | 0.68x, WD 120 mm, F/M58-mount | $1,839.00 | 2 in stock | View |
| LS-TCL-0470 | 0.63x, WD 130 mm, F/M58-mount | $1,899.00 | 4 in stock | View |
| LS-TCL-0476 | 0.55x, WD 250 mm, F/M58-mount | $2,009.00 | 2 in stock | View |
| LS-TCL-0471 | 0.45x, WD 158 mm, F/M58-mount | $2,189.00 | 5 in stock | View |
| LS-TCL-0473 | 0.36x, WD 230 mm, F/M58-mount | $2,449.00 | 3 in stock | View |
| LS-TCL-0475 | 0.31x, WD 250 mm, F/M58-mount | $2,659.00 | 3 in stock | View |
| LS-TCL-0474 | 0.26x, WD 250 mm, F/M58-mount | $2,839.00 | 2 in stock | View |
| LS-TCL-0477 | 0.21x, WD 285 mm, F/M58-mount | $3,209.00 | 5 in stock | View |
| LS-TCL-0478 | 0.19x, WD 300 mm, F/M58-mount | $3,609.00 | 4 in stock | View |
| LS-TCL-0479 | 0.17x, WD 320 mm, F/M58-mount | $3,899.00 | 4 in stock | View |
| LS-TCL-0480 | 0.12x, WD 410 mm, F/M58-mount | $5,039.00 | 3 in stock | View |
