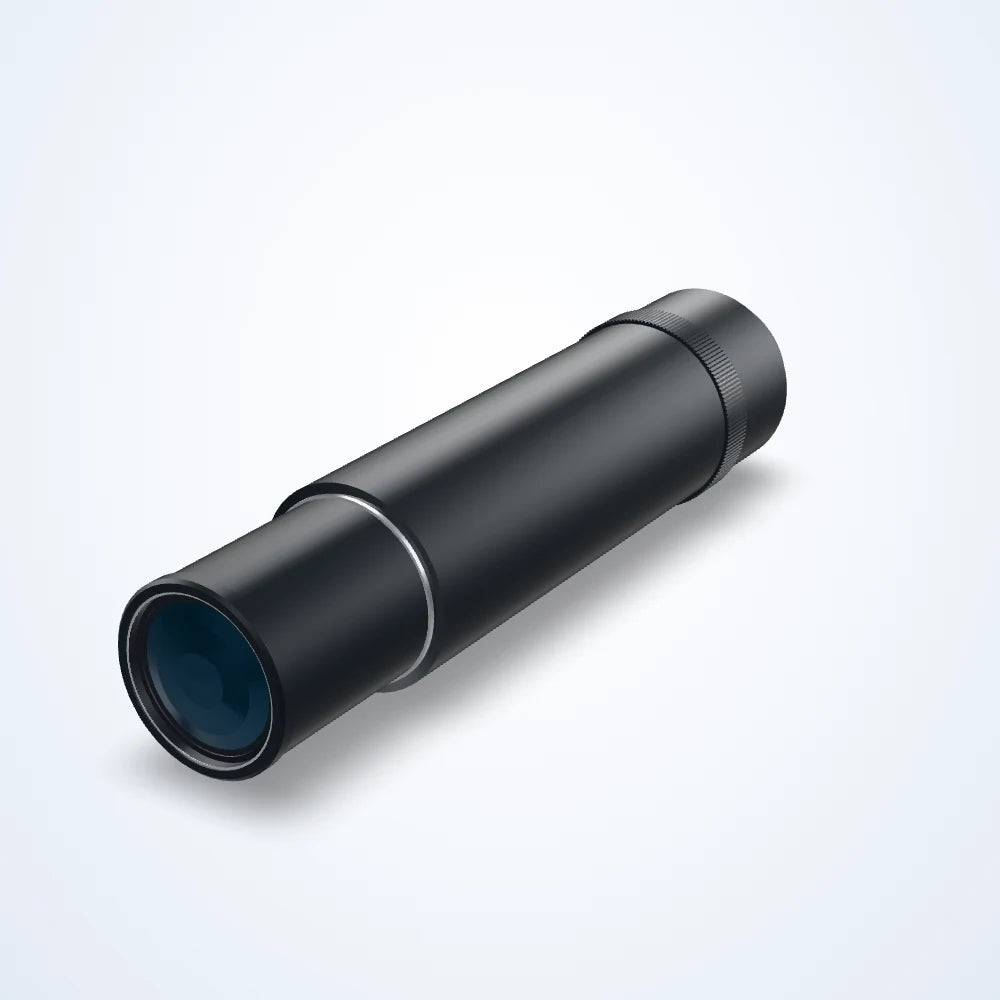

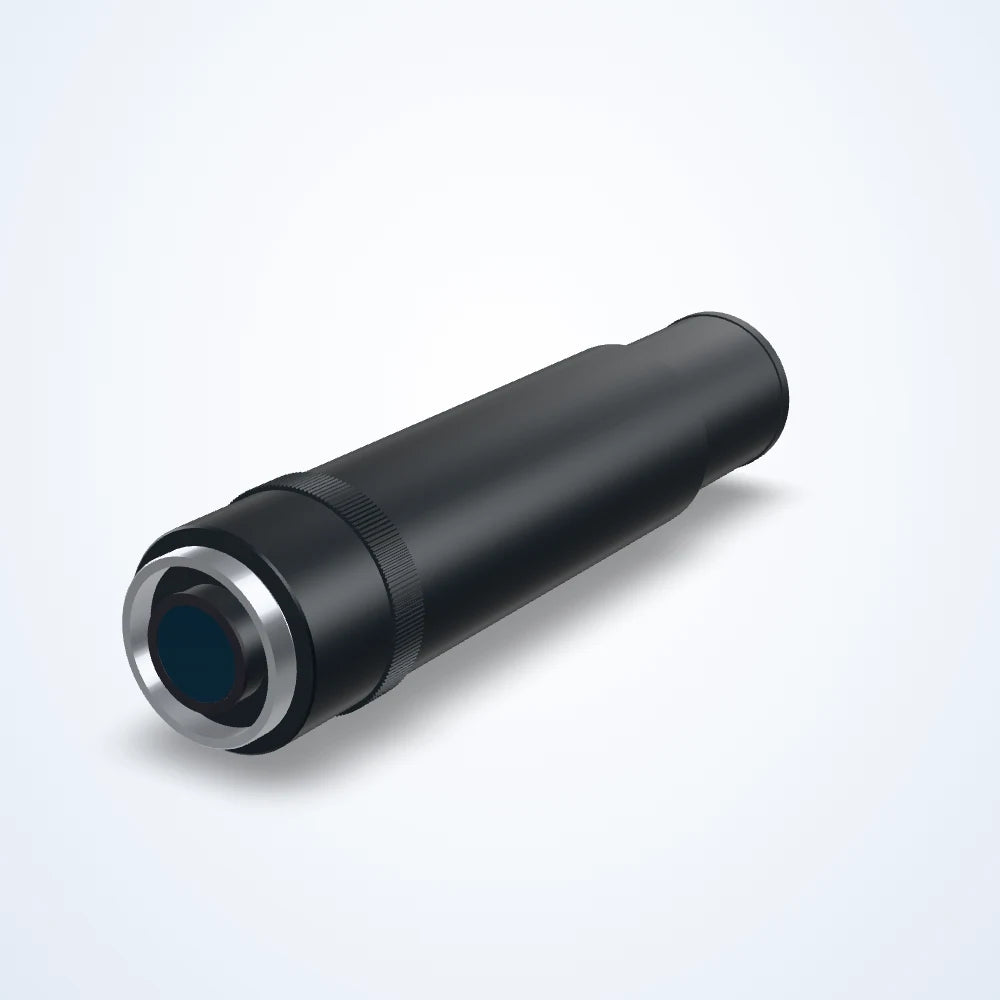

Telecentric lens (series view)
  • Telecentric lens (series view)
  • Telecentric lens (series view)

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.11x bi-telecentric lens, WD 465 mm, 2" (LS-TCL-1209)

Model LS-TCL-1209

  • Magnification0.110x
  • MountM42
  • SensorAPS-H
  • Working distance465±6 mm
  • Aperture7.8
  • Field of viewdia. 300 mm
$8,855.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Ships in 3-4 weeks

47.0 kg shipping weight

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Request a quote

0.11x bi-telecentric lens, WD 465 mm, 2" (LS-TCL-1209)LS-TCL-1209

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

0.11x bi-telecentric lens for non-contact measurement and gauging. Magnification 0.11x; working distance 465 mm; covers sensors up to 2".

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-1209

Optics

Working distance465±6 mm
Field of viewdia. 300 mm
Magnification0.110x
Aperture7.8
MTF>115 lp/mm
Depth of field±52.8@F16
Distortion<0.1 % max
Telecentricity<0.1 ° max
Object-to-image distance1197±6 mm

Sensor and imaging

Sensor format2"

Mechanical

Length716.0 mm
MountM42/M58
Weight47.1 kg

Other models in the Bi-telecentric lenses, 2" (LS-TCL-S53) series

See all 9 models
ModelSize / key dataPriceAvailabilityLink
LS-TCL-1217 0.917x, WD 110 mm, 2" $1,815.00 Ships in 3-4 weeks View
LS-TCL-1216 0.688x, WD 128 mm, 2" $2,035.00 Ships in 3-4 weeks View
LS-TCL-1215 0.516x, WD 158 mm, 2" $2,650.00 Ships in 3-4 weeks View
LS-TCL-1214 0.275x, WD 273 mm, 2" $3,585.00 Ships in 3-4 weeks View
LS-TCL-1213 0.243x, WD 288 mm, 2" $3,630.00 Ships in 3-4 weeks View
LS-TCL-1212 0.22x, WD 300 mm, 2" $3,850.00 Ships in 3-4 weeks View
LS-TCL-1211 0.174x, WD 330 mm, 2" $4,280.00 Ships in 3-4 weeks View
LS-TCL-1210 0.138x, WD 410 mm, 2" $7,315.00 Ships in 3-4 weeks View
