Telecentric lenses
1.5× telecentric lens, 2/3", C-mount, WD 132.3 mm (LS-TCL-0437)
Model LS-TCL-0437
- Magnification1.5×
- MountC-mount
- Sensor2/3"
- Working distance132.3 mm
- Resolution7 μm
$2,369.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 132.3 mm; depth of field 0.4 mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-0437 |
|---|---|
| FOV @ 1/1.8″ | 4.75 x 3.55 mm |
| Fov @ 1/2.0″ | 4.27 x 3.20 mm |
| Fov @ 1/2.5″ | 3.80 x 2.85 mm |
| FOV @ 1/2″ | 4.27 x 3.20 mm |
| Fov @ 1/3.0″ | 3.20 x 2.40 mm |
| FOV @ 2/3″ | 5.67 x 4.73 mm |
| Lens type | Telecentric |
| Working ƒ/n | f/16 |
Optics
| Magnification | 1.5× |
|---|---|
| Working distance | 132.3 mm |
| Depth of field | 0.4 mm |
| Distortion maximum (%) | < 0.1 |
| Distortion typical (%) | < 0.05 |
| Filter thread | No Filter Threads |
| Image circle | 11 mm |
| Telecentricity maximum | 0.06° |
| Telecentricity typical | < 0.04° |
Sensor and imaging
| Sensor format | 2/3" |
|---|---|
| Resolution (pixel size) | 7 μm |
Environment and compliance
| Operating temperature range | 0 to 40°C |
|---|---|
| Storage temperature range | 0 to 50°C |
Mechanical
| Mount | C-mount |
|---|---|
| Dimensions approximate | 140.4 x 37.7 x 37.7 mm |
| Front diameter | 37.7 mm |
| Weight | 373 Grams |

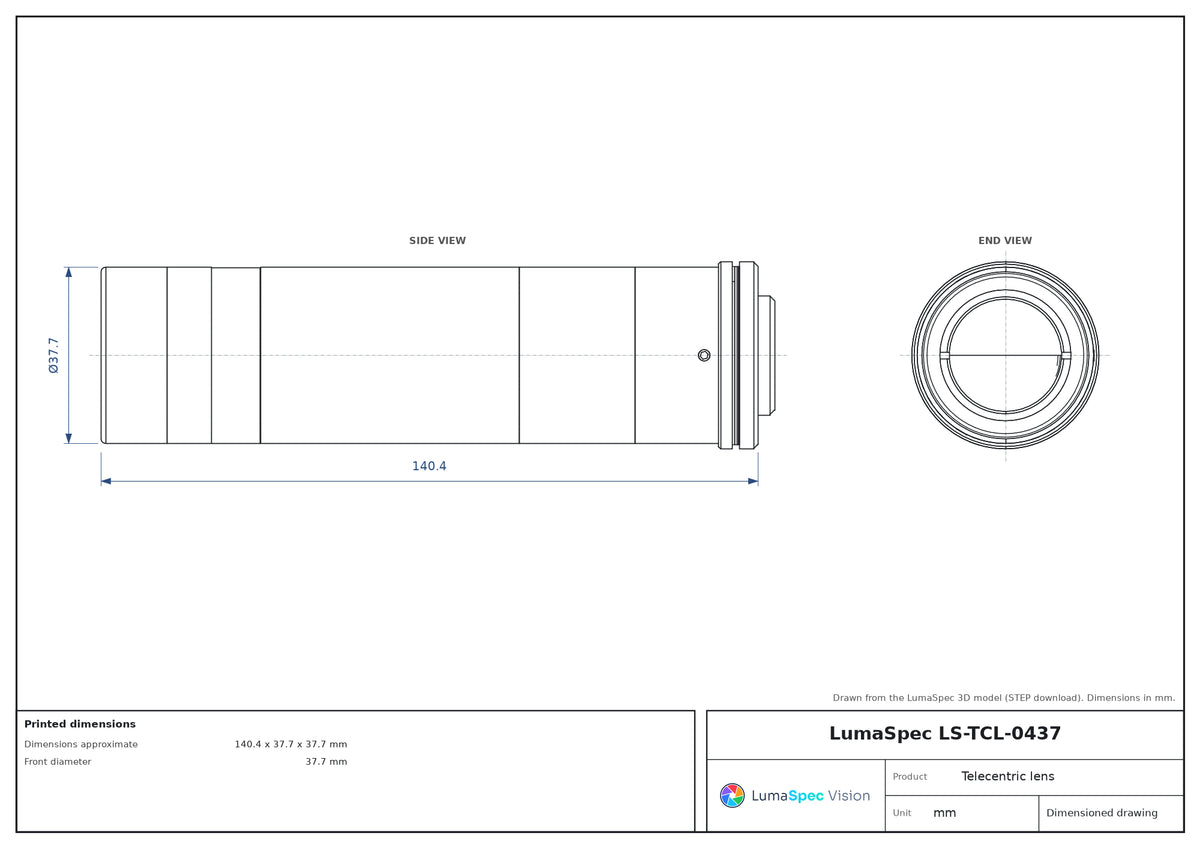

LS-TCL-0437

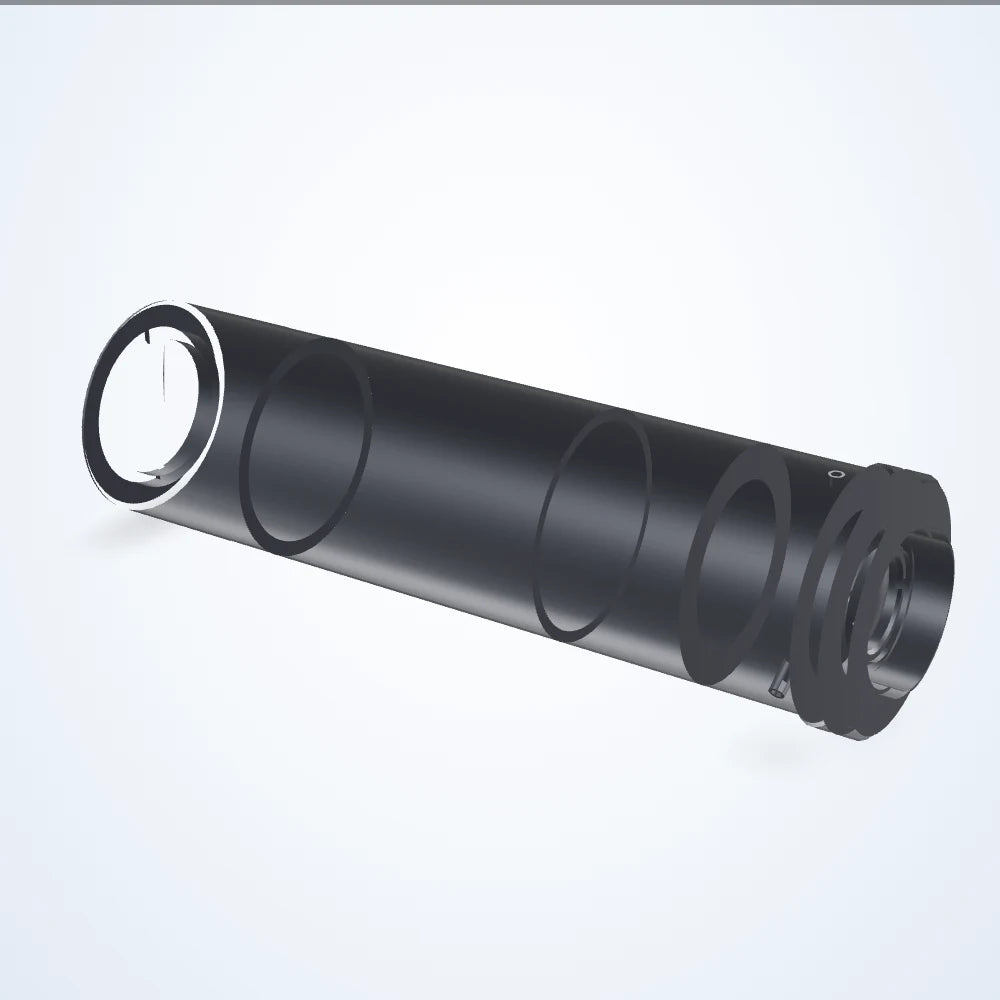

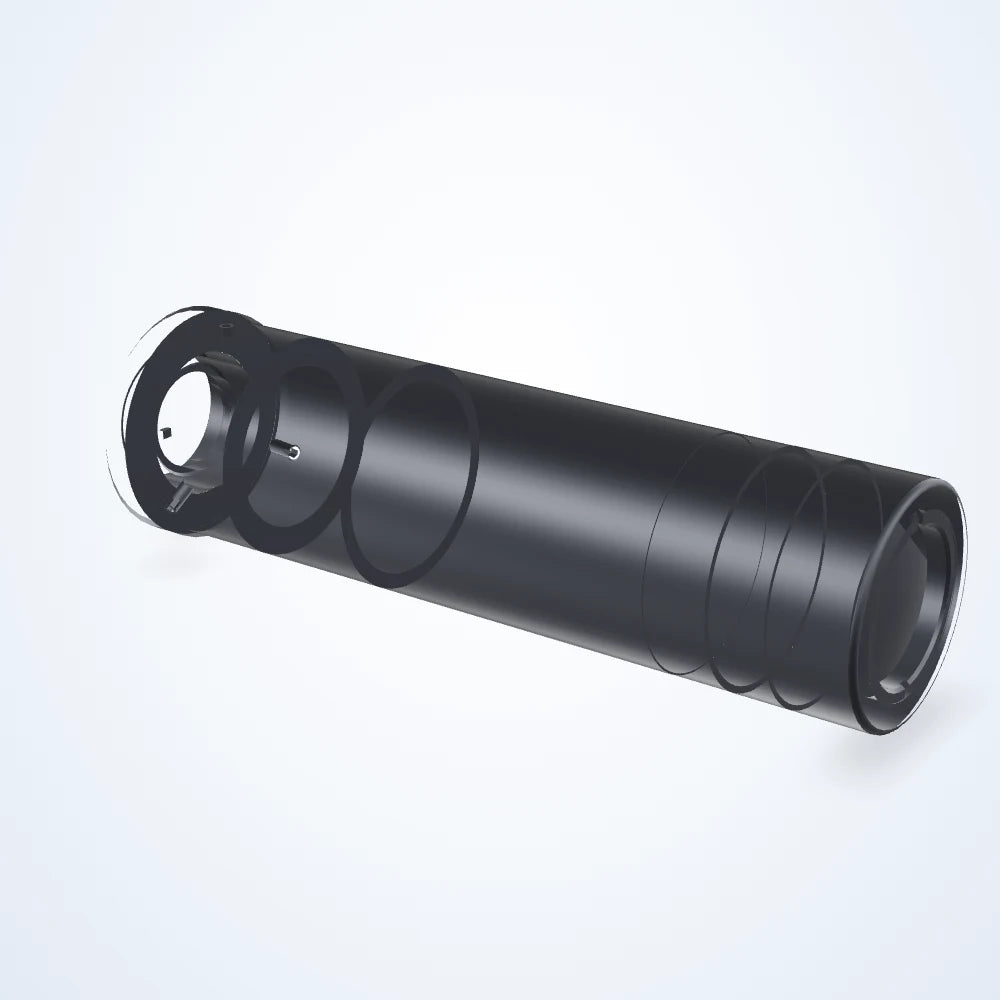

See this component from every angle.
CAD-based illustration; finish is representative.
Source CAD
FROM THE PRINTED SPECIFICATIONS
- Magnification
- 1.5×
- Sensor format
- 2/3"
- Mount
- C-mount
- Working distance
- 132.3 mm
Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.
