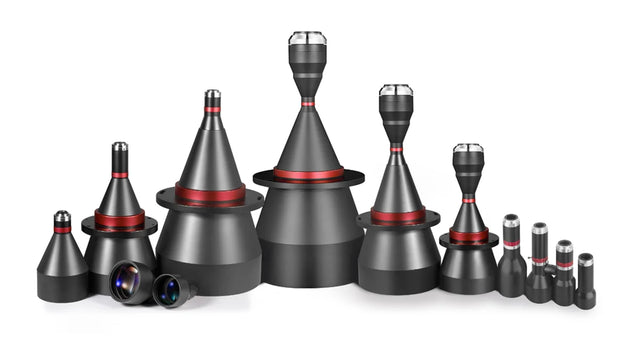

1/2-inch telecentric lenses

Telecentric and bi-telecentric lenses keep magnification constant through the depth of field, so parts measure the same size wherever they sit. Lenses rated for 1/2-inch sensors cover an image circle of at least 8 mm, so they also suit smaller sensors; on a larger sensor the corners go dark (vignetting).

All telecentric lenses · 4/3-inch telecentric lenses · 1.1-inch telecentric lenses · 1-inch telecentric lenses · 2/3-inch telecentric lenses · 1/1.8-inch telecentric lenses · 1/2.5-inch telecentric lenses · APS-C telecentric lenses · APS-H telecentric lenses · Full frame telecentric lenses

308 models Configure a systemAll lenses
1/2-inch telecentric lenses

1-24 of 308 models

Products

Compare
LS-TCL-10003x telecentric lens, WD 150 mm 3.0xC-mount1/2"150 mmF48.510.8 μm$235.00 Ships in 3-4 weeks
LS-TCL-10084x telecentric lens, coaxial port 4.0xC-mount1/2"110 mmF36.36.1 μm$235.00 Ships in 3-4 weeks
LS-TCL-09751.5x telecentric lens 1.5xC-mount1/2"110 mmF13.66.1 μm$235.00 Ships in 3-4 weeks
LS-TCL-09581x telecentric lens 1.0xC-mount1/2"113 mmF19.713.2 μm$235.00 Ships in 3-4 weeks
LS-TCL-09791.5x telecentric lens, coaxial port 1.5xC-mount1/2"110 mmF13.66.1 μm$235.00 Ships in 3-4 weeks
LS-TCL-09922x telecentric lens, WD 150 mm, coaxial port 2.0xC-mount1/2"150 mmF35.512.0 μm$235.00 Ships in 3-4 weeks
LS-TCL-09811.5x telecentric lens, WD 150 mm 1.5xC-mount1/2"150 mmF31.714.3 μm$235.00 Ships in 3-4 weeks
LS-TCL-09821.5x telecentric lens, WD 150 mm, coaxial port 1.5xC-mount1/2"150 mmF31.714.3 μm$235.00 Ships in 3-4 weeks
LS-TCL-10114x telecentric lens, WD 150 mm, coaxial port 4.0xC-mount1/2"150 mmF47.98.2 μm$235.00 Ships in 3-4 weeks
LS-TCL-09912x telecentric lens, WD 150 mm 2.0xC-mount1/2"150 mmF35.512.0 μm$235.00 Ships in 3-4 weeks
LS-TCL-09852x telecentric lens 2.0xC-mount1/2"110 mmF31.710.8 μm$235.00 Ships in 3-4 weeks
LS-TCL-09983x telecentric lens, coaxial port 3.0xC-mount1/2"110 mmF34.27.8 μm$235.00 Ships in 3-4 weeks
LS-TCL-10013x telecentric lens, WD 150 mm, coaxial port 3.0xC-mount1/2"150 mmF48.510.8 μm$235.00 Ships in 3-4 weeks
LS-TCL-10044x telecentric lens 4.0xC-mount1/2"110 mmF36.36.1 μm$235.00 Ships in 3-4 weeks
LS-TCL-09621x telecentric lens, coaxial port 1.0xC-mount1/2"113 mmF19.713.2 μm$235.00 Ships in 3-4 weeks
LS-TCL-09953x telecentric lens 3.0xC-mount1/2"110 mmF34.27.8 μm$235.00 Ships in 3-4 weeks
LS-TCL-10104x telecentric lens, WD 150 mm 4.0xC-mount1/2"150 mmF47.98.2 μm$235.00 Ships in 3-4 weeks
LS-TCL-09892x telecentric lens, coaxial port 2.0xC-mount1/2"110 mmF31.710.8 μm$235.00 Ships in 3-4 weeks
LS-TCL-09661x telecentric lens, WD 150 mm, coaxial port 1.0xC-mount1/2"150 mmF2718.2 μm$235.00 Ships in 3-4 weeks
LS-TCL-09651x telecentric lens, WD 150 mm 1.0xC-mount1/2"150 mmF2718.2 μm$235.00 Ships in 3-4 weeks
LS-TCL-09681x telecentric lens, WD 250 mm 1.0xC-mount1/2"250 mmF2013.4 μm$200.00 Ships in 3-4 weeks
LS-TCL-09490.8x telecentric lens, WD 250 mm 0.8xC-mount1/2"250 mmF17.514.6 μm$200.00 Ships in 3-4 weeks
LS-TCL-09831.5x telecentric lens, WD 250 mm 1.5xC-mount1/2"250 mmF29.713.4 μm$200.00 Ships in 3-4 weeks
LS-TCL-09932x telecentric lens, WD 250 mm 2.0xC-mount1/2"250 mmF4013.4 μm$200.00 Ships in 3-4 weeks
