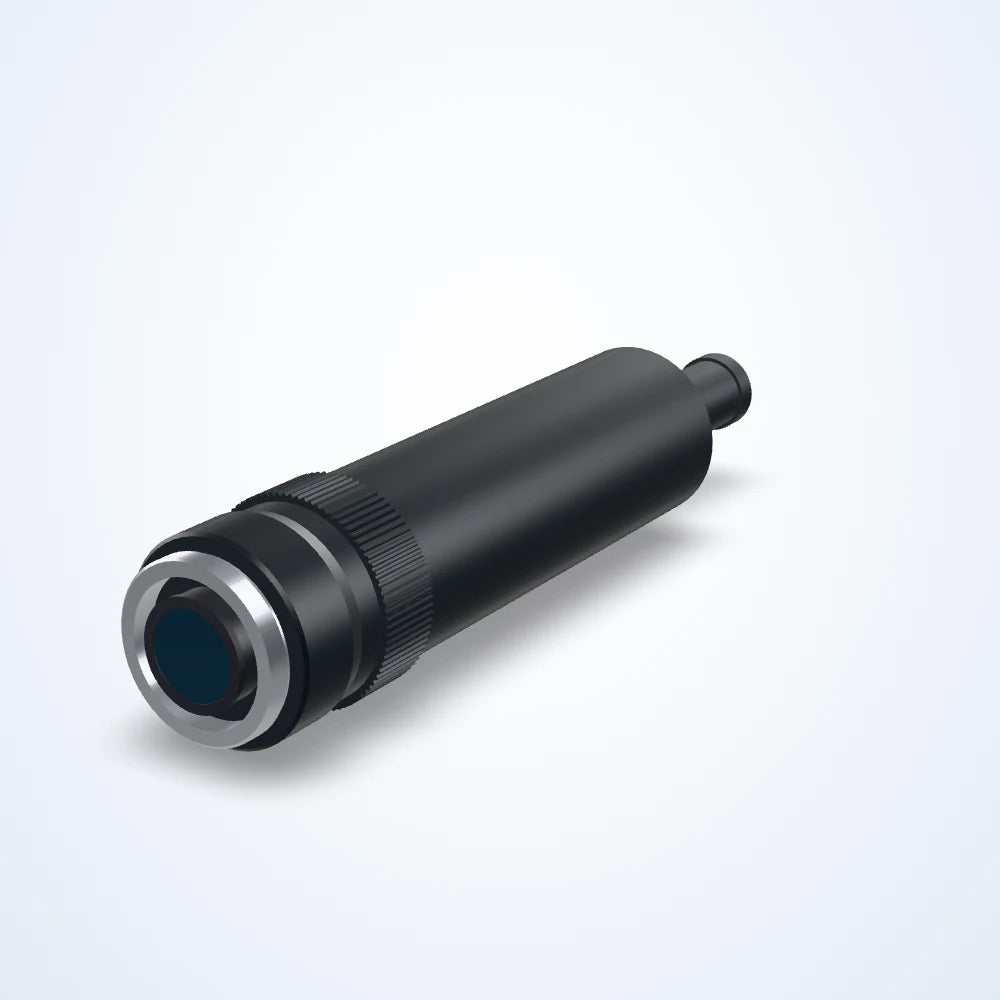

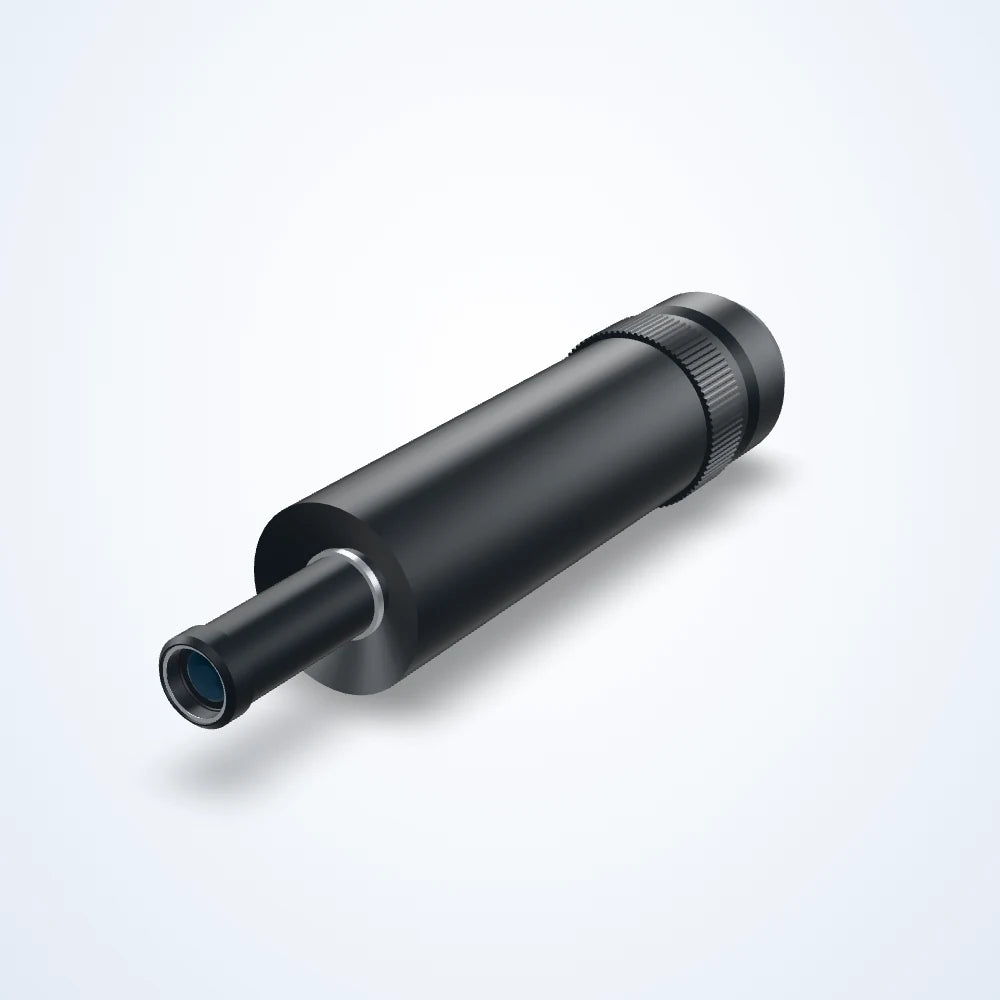

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

4x telecentric lens, WD 110 mm (LS-TCL-1004)

Model LS-TCL-1004

  • Magnification4.0x
  • MountC-mount
  • Sensor1/2"
  • Working distance110 mm
  • ApertureF36.3
  • Resolution6.1 μm
$235.00

Ships in 3-4 weeks

0.5 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

4x telecentric lens, WD 110 mm (LS-TCL-1004)LS-TCL-1004

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

LS-TCL-1004: magnification 4.0x, working distance 110 mm, depth of field 0.3 mm, sensor format 1/2".

4x telecentric lens for non-contact measurement and gauging. Magnification 4x.

  • Tracked worldwide shippingTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-1004

Optics

Coaxial illumination portNo
Magnification4.0x
Depth of field0.3 mm
Working distance110 mm
Field of view1/4" (3.2*2.4) 0.8x0.6 1/3" (4.8*3.6) 1.2x0.9
ApertureF36.3
Object-side NA0.0552

Sensor and imaging

Sensor format1/2"
Max sensor size (dia. mm)8.0
Resolution6.1 μm

Environment and compliance

Operating temperature-10 to 50 °C
Storage temperature-20 to 60 °C

Mechanical

MountC-mount
Length132.5 mm
Shipping weight0.50 kg

Engineering data

Field of view with the LS-TCL-1004

Worked out from this lens's own magnification and image circle: the field it sees on each sensor format.

Image circleØ 8 mmCovers sensors up to 1/2"
Magnification4×
Working distance110 mmDepth of field 0.3 mm
Total length132.5 mm
NA0.0552object side
Field of view (width × height) by sensor format
Sensor format4×
1/3"4.8 × 3.6 mm1.2 × 0.9 mm
1/2.9"4.98 × 3.74 mm1.2 × 0.9 mm
1/2"6.4 × 4.8 mm1.6 × 1.2 mm

Field of view = sensor size ÷ magnification. Sensor sizes are typical for each optical format.
