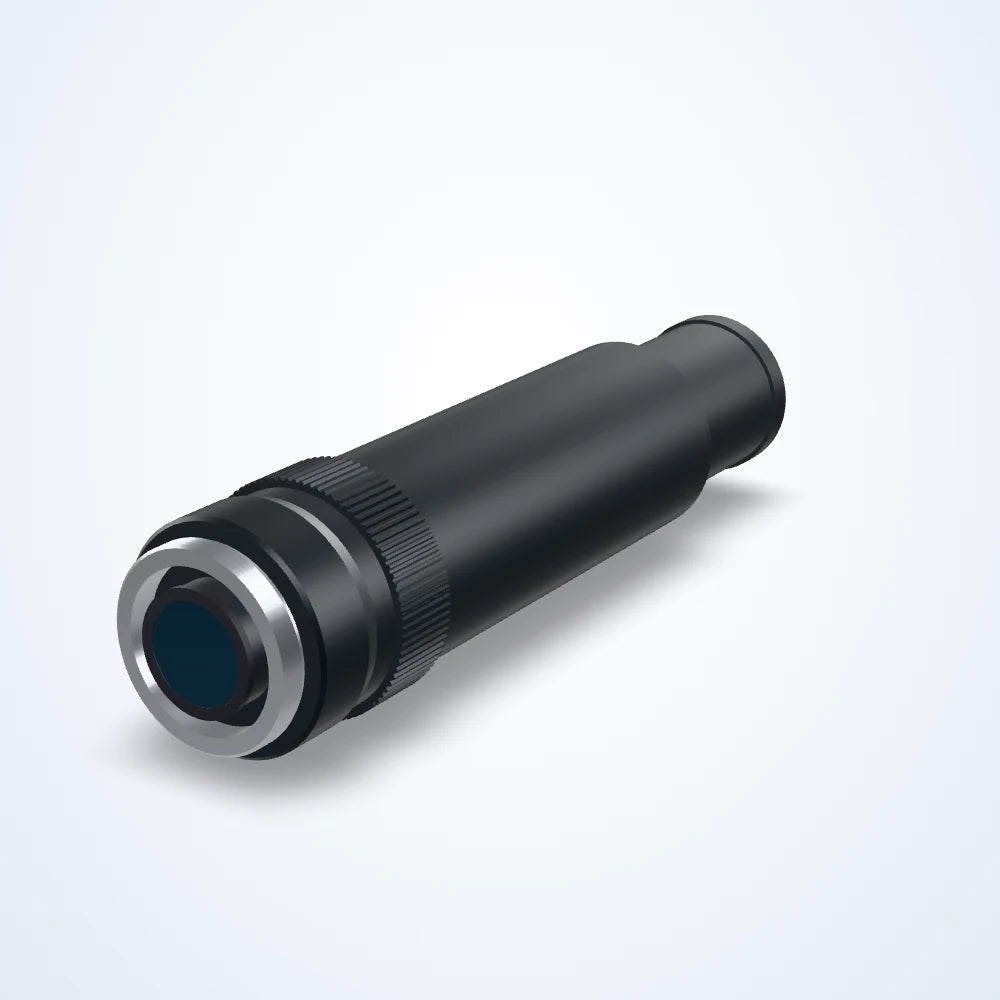

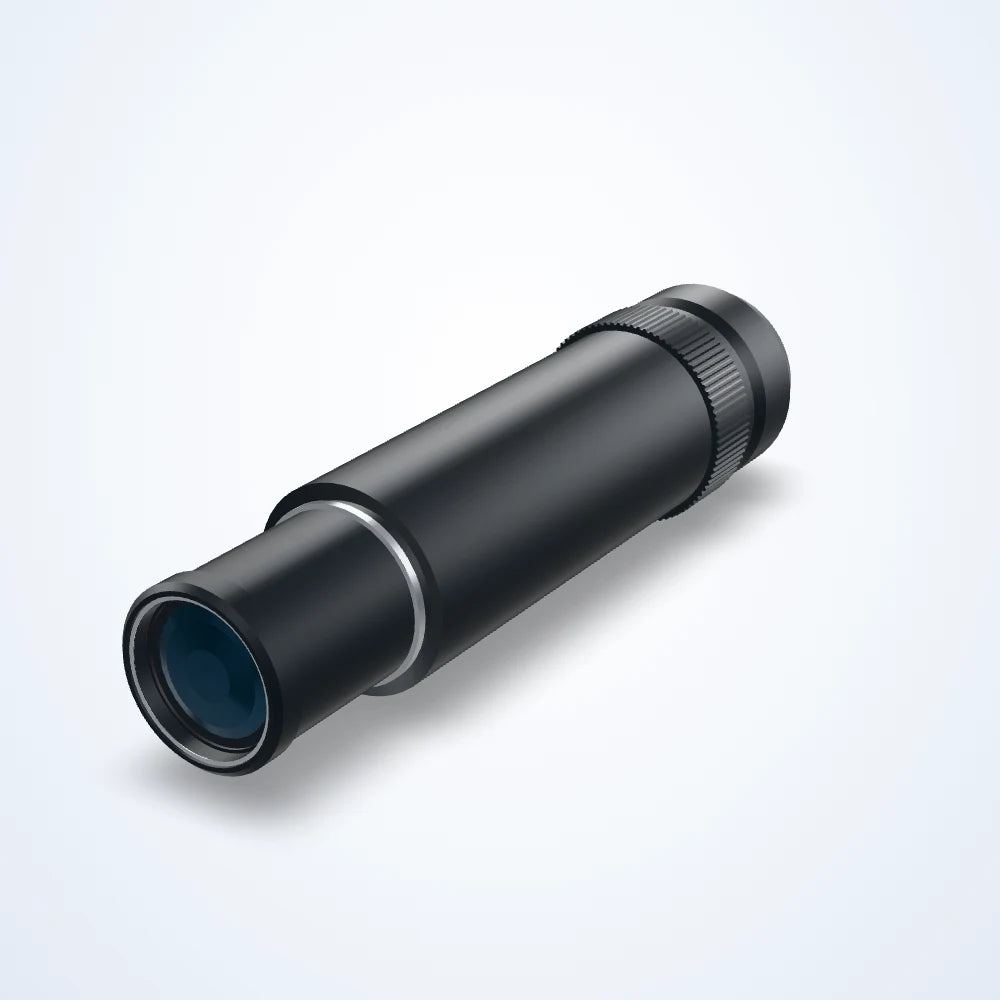

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.8x telecentric lens, WD 130 mm (LS-TCL-0943)
Model LS-TCL-0943
- Magnification0.8x
- MountC-mount
- Sensor2/3"
- Working distance130±2 mm
- ApertureF12.6
- Resolution10.6 μm
$345.00
Ships in 3-4 weeks
1.0 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
0.8x telecentric lens for non-contact measurement and gauging. Magnification 0.8x; working distance 130 mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-0943 |
|---|
Optics
| Magnification | 0.8x |
|---|---|
| Working distance | 130±2 mm |
| Field of view | 1/2” (6.4x4.8) 8.0x6.0 1/1.8” (7.13x5.37) 8.9x6.7 2/3” (8.8x6.6) 11.0x8.3 |
| Aperture | F12.6 |
| MTF | >65lp/mm |
| Distortion | <0.1% |
| Telecentricity | <0.1° |
| Object-side NA | 0.0316 |
| Depth of field | 1.6 mm |
| Coaxial illumination port | No |
| Variable Iris | No |
Sensor and imaging
| Sensor format | 11.0 Φmm(2/3") |
|---|---|
| Resolution | 10.6 μm |
Environment and compliance
| Operating temperature | -10 - 50°C(Operating), -20 - 60°C(Storage) |
|---|
Mechanical
| Length | 117.1 / 121.4 mm |
|---|---|
| Mount | C-mount |
| Shipping weight | 1.00 kg |
