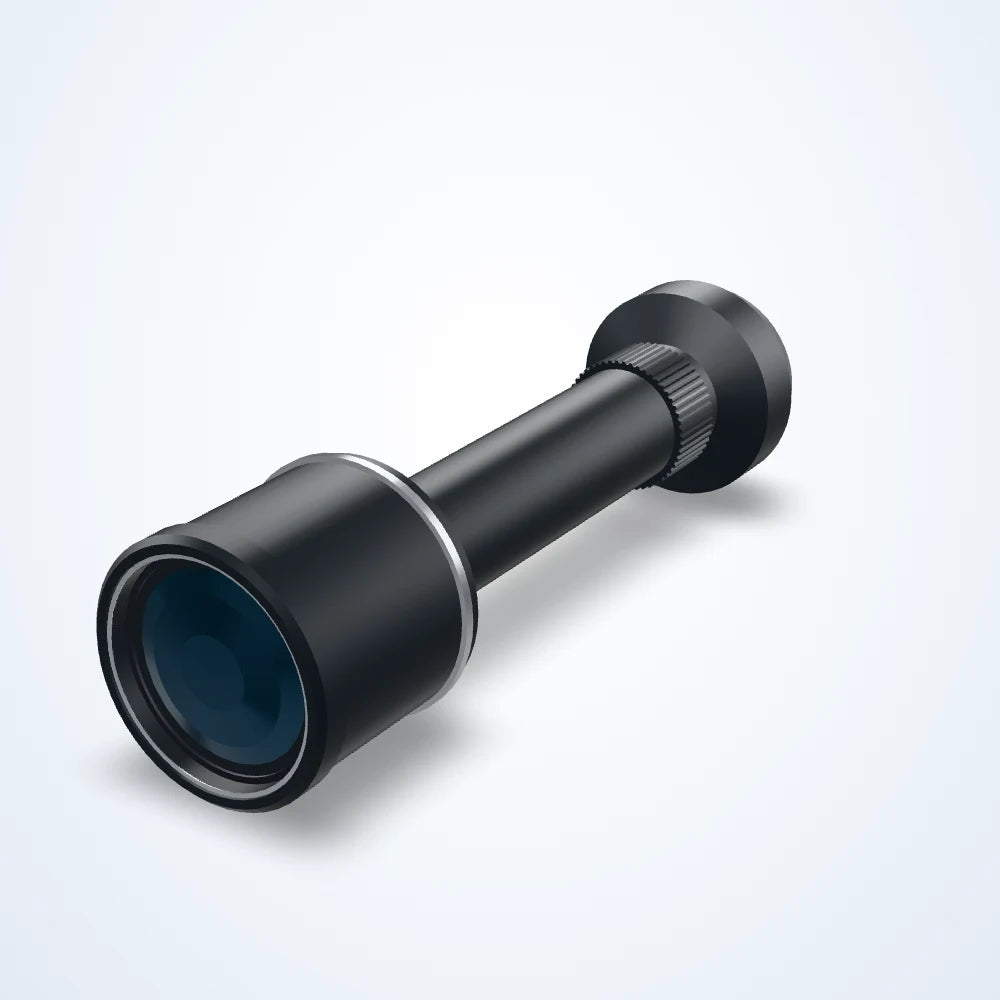

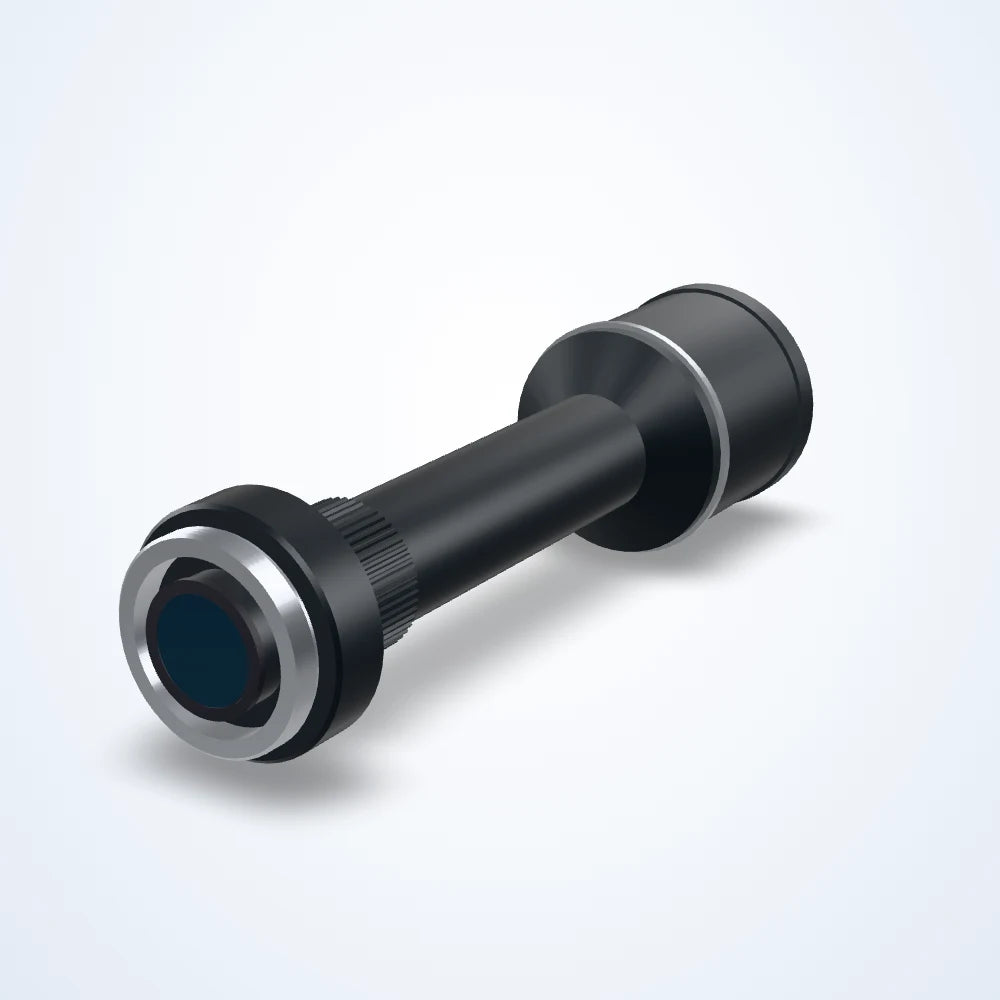

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
4x telecentric lens, WD 150 mm, coaxial port (LS-TCL-1011)
Model LS-TCL-1011
- Magnification4.0x
- MountC-mount
- Sensor1/2"
- Working distance150 mm
- ApertureF47.9
- Resolution8.2 μm
$235.00
Ships in 3-4 weeks
1.5 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
4x telecentric lens for non-contact measurement and gauging. Magnification 4x; working distance 150 mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-1011 |
|---|
Optics
| Working distance | 150 mm |
|---|---|
| Coaxial illumination port | Yes |
| Magnification | 4.0x |
| Depth of field | 0.3 mm |
| Field of view | 1/4" (3.2*2.4) 0.8x0.6 1/3" (4.8*3.6) 1.2x0.9 |
| Aperture | F47.9 |
| Object-side NA | 0.0410 |
Sensor and imaging
| Sensor format | 8.0 Φmm(1/2") |
|---|---|
| Resolution | 8.2 μm |
Environment and compliance
| Operating temperature | -10 - 50°C(Operating), -20 - 60°C(Storage) |
|---|
Mechanical
| Mount | C-mount |
|---|---|
| Length | 172.4 mm |
| Shipping weight | 1.50 kg |
