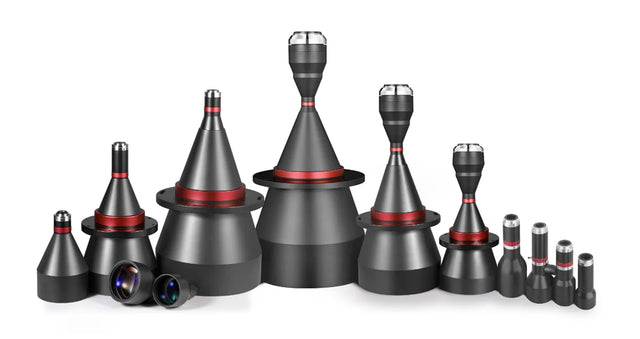

2/3-inch telecentric lenses

Telecentric and bi-telecentric lenses keep magnification constant through the depth of field, so parts measure the same size wherever they sit. Lenses rated for 2/3-inch sensors cover an image circle of at least 11 mm, so they also suit smaller sensors; on a larger sensor the corners go dark (vignetting).

All telecentric lenses · 4/3-inch telecentric lenses · 1.1-inch telecentric lenses · 1-inch telecentric lenses · 1/1.8-inch telecentric lenses · 1/2-inch telecentric lenses · 1/2.5-inch telecentric lenses · APS-C telecentric lenses · APS-H telecentric lenses · Full frame telecentric lenses

842 models Configure a systemAll lenses
2/3-inch telecentric lenses

1-24 of 842 models

Products

Compare
LS-TCL-09310.7x telecentric lens, WD 145 mm, Variable Iris 0.7xC-mount2/3"145±2 mmF16.816.2 μm$345.00 Ships in 3-4 weeks
LS-TCL-09450.8x telecentric lens, WD 130 mm, Coaxial 0.8xC-mount2/3"130±2 mmF12.610.6 μm$355.00 Ships in 3-4 weeks
LS-TCL-09440.8x telecentric lens, WD 130 mm, Variable Iris 0.8xC-mount2/3"130±2 mmF12.610.6 μm$345.00 Ships in 3-4 weeks
LS-TCL-09320.7x telecentric lens, WD 145 mm, Coaxial 0.7xC-mount2/3"145±2 mmF16.816.2 μm$355.00 Ships in 3-4 weeks
LS-TCL-09430.8x telecentric lens, WD 130 mm 0.8xC-mount2/3"130±2 mmF12.610.6 μm$345.00 Ships in 3-4 weeks
LS-TCL-09330.7x telecentric lens, WD 145 mm, Coaxial, Variable Iris 0.7xC-mount2/3"145±2 mmF16.816.2 μm$355.00 Ships in 3-4 weeks
LS-TCL-09300.7x telecentric lens, WD 145 mm 0.7xC-mount2/3"145±2 mmF16.816.2 μm$345.00 Ships in 3-4 weeks
LS-TCL-09460.8x telecentric lens, WD 130 mm, Coaxial, Variable Iris 0.8xC-mount2/3"130±2 mmF12.610.6 μm$355.00 Ships in 3-4 weeks
LS-TCL-09150.5x telecentric lens 0.5xC-mount2/3"---$310.00 Ships in 3-4 weeks
LS-TCL-12200.048x bi-telecentric lens, WD 410 mm, 2/3" 0.048xC-mount2/3"410±6 mmF4.9-$5,060.00 Ships in 3-4 weeks
LS-TCL-12180.038x bi-telecentric lens, WD 465 mm, 2/3" 0.038xC-mount2/3"465±6 mmF4.9-$8,500.00Quote Ships in 3-4 weeks
LS-TCL-12934x liquid-focus telecentric lens, WD 62.8 mm, 2/3", C-mount 4.0xC-mount2/3"62.778 mm17-$2,500.00 Ships in 3-4 weeks
LS-TCL-12190.044x bi-telecentric lens, WD 338 mm, 2/3" 0.044xC-mount2/3"338±5 mm4.9-$6,380.00 Ships in 3-4 weeks
LS-TCL-12210.053x bi-telecentric lens, WD 372 mm, 2/3" 0.053xC-mount2/3"372±5 mm4.9-$4,730.00 Ships in 3-4 weeks
LS-TCL-12620.5x liquid-focus telecentric lens, WD 110 mm, 2/3", C-mount 0.5xC-mount2/3"110-120 mm10-$2,400.00 Ships in 3-4 weeks
LS-TCL-12220.06x bi-telecentric lens, WD 330 mm, 2/3" 0.06xC-mount2/3"330±5 mmF4.9-$3,520.00 Ships in 3-4 weeks
LS-TCL-12240.076x bi-telecentric lens, WD 300 mm, 2/3" 0.076xC-mount2/3"300±5 mmF4.9-$2,200.00 Ships in 3-4 weeks
LS-TCL-12894x liquid-focus telecentric lens, 2/3", C-mount 4.0xC-mount2/3"-17-$2,400.00 Ships in 3-4 weeks
LS-TCL-12230.067x bi-telecentric lens, WD 318 mm, 2/3" 0.067xC-mount2/3"318±5 mm4.9-$3,000.00 Ships in 3-4 weeks
LS-TCL-12290.127x bi-telecentric lens, WD 208 mm, 2/3" 0.127xC-mount2/3"208±3 mmF4.9-$1,210.00 Ships in 3-4 weeks
LS-TCL-12944x liquid-focus telecentric lens, WD 64.7 mm, 2/3", C-mount 4.0xC-mount2/3"64.7 mm17-$2,500.00 Ships in 3-4 weeks
LS-TCL-12250.084x bi-telecentric lens, WD 288 mm, 2/3" 0.084xC-mount2/3"288±5 mm4.9-$2,785.00 Ships in 3-4 weeks
LS-TCL-12610.5x liquid-focus telecentric lens, WD 100 mm, 2/3", C-mount 0.5xC-mount2/3"100-120 mm10-$2,400.00 Ships in 3-4 weeks
LS-TCL-12520.4x liquid-focus telecentric lens, WD 100 mm, 2/3", C-mount 0.4xC-mount2/3"100-120 mm6.5-$2,400.00 Ships in 3-4 weeks
