Lenses

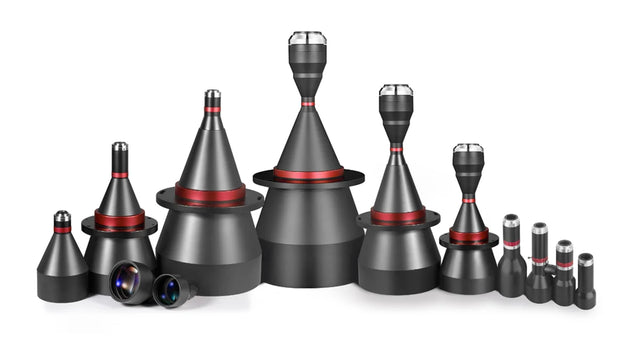

1.5x telecentric lenses

Telecentric and bi-telecentric lenses keep magnification constant through the depth of field, so parts measure the same size wherever they sit. At 1.5x a 2/3-inch sensor (8.8 x 6.6 mm) sees a field of view of about 5.9 x 4.4 mm, and a telecentric lens keeps that size constant through its depth of field.

All telecentric lenses · 0.1x telecentric lenses · 0.2x telecentric lenses · 0.3x telecentric lenses · 0.4x telecentric lenses · 0.5x telecentric lenses · 0.6x telecentric lenses · 0.7x telecentric lenses · 0.8x telecentric lenses · 1x telecentric lenses · 2x telecentric lenses · 2.5x telecentric lenses · 3x telecentric lenses · 4x telecentric lenses · 6x telecentric lenses

103 models Configure a systemAll lenses
1.5x telecentric lenses

1-24 of 103 models

Products

Compare
LS-TCL-09811.5x telecentric lens, WD 150 mm 1.5xC-mount1/2"150 mmF31.714.3 μm$235.00 Ships in 3-4 weeks
LS-TCL-09821.5x telecentric lens, WD 150 mm, coaxial port 1.5xC-mount1/2"150 mmF31.714.3 μm$235.00 Ships in 3-4 weeks
LS-TCL-09751.5x telecentric lens 1.5xC-mount1/2"110 mmF13.66.1 μm$235.00 Ships in 3-4 weeks
LS-TCL-09801.5x telecentric lens, coaxial port 1.5xC-mount1/3"65 mmF12.05.4 μm$220.00 Ships in 3-4 weeks
LS-TCL-09771.5x telecentric lens 1.5xC-mount-40 mm-0.008 μm$210.00 Ships in 3-4 weeks
LS-TCL-09791.5x telecentric lens, coaxial port 1.5xC-mount1/2"110 mmF13.66.1 μm$235.00 Ships in 3-4 weeks
LS-TCL-09831.5x telecentric lens, WD 250 mm 1.5xC-mount1/2"250 mmF29.713.4 μm$200.00 Ships in 3-4 weeks
LS-TCL-11091.5x bi-telecentric lens, WD 110 mm, 1.1" 1.5xC-mount1.1"110±2 mmF1010 MP$620.00 Ships in 3-4 weeks
LS-TCL-09781.5x telecentric lens 1.5xC-mount-40 mm-0.008 μm$220.00 Ships in 3-4 weeks
LS-TCL-09841.5x telecentric lens, WD 250 mm, coaxial port 1.5xC-mount1/3"250 mmF29.713.4 μm$215.00 Ships in 3-4 weeks
LS-TCL-12791.5x telecentric lens, 2/3" 1.5xC-mount2/3"-f11.9-$328.00 Ships in 3-4 weeks
LS-TCL-12781.5x telecentric lens, 2/3" 1.5xC-mount2/3"-10-$350.00 Ships in 3-4 weeks
LS-TCL-09761.5x telecentric lens 1.5xC-mount1/3"65 mmF125.4 μm$210.00 Ships in 3-4 weeks
LS-TCL-12771.5x telecentric lens, 2/3" 1.5xC-mount2/3"-10-$290.00 Ships in 3-4 weeks
LS-TCL-04371.5× telecentric lens, 2/3", C-mount, WD 132.3 mm 1.5×C-mount2/3"132.3 mm-7 μm$2,369.00Quote Lead time confirmed with your quote
LS-TCL-04291.5× telecentric lens, 2/3", C-mount, WD 118 mm 1.5×C-mount2/3"118.0 - 142.0 mm-7 μm$3,149.00Quote Lead time confirmed with your quote
LS-TCL-04241.5× telecentric lens, 2/3", C-mount, wavelength 6000 K, WD 78 mm 1.5×C-mount2/3"78 mm-7 μm$3,959.00Quote Lead time confirmed with your quote
LS-TCL-04231.5× telecentric lens, 2/3", C-mount, wavelength 525 nm, WD 78 mm 1.5×C-mount2/3"78 mm-7 μm$3,959.00Quote Lead time confirmed with your quote
LS-TCL-04001.5× telecentric lens, 2/3", C-mount, wavelength 6000 K, WD 132.3 mm 1.5×C-mount2/3"132.3 mm-7 μm$3,089.00Quote Lead time confirmed with your quote
LS-TCL-03991.5× telecentric lens, 2/3", C-mount, wavelength 525 nm, WD 132.3 mm 1.5×C-mount2/3"132.3 mm-7 μm$3,089.00Quote Lead time confirmed with your quote
LS-TCL-0797Object-Side Telecentric Lens, 1.5x, 63 mm WD, 2/3", coaxial light port 1.5C-mount2/3"63 mmF7.5-$679.00 Ships in 2-3 weeks
LS-TCL-0800Object-Side Telecentric Lens, 1.5x, 200 mm WD, 2/3" 1.5C-mount2/3"200 mmF15.8-$679.00 Ships in 2-3 weeks
LS-TCL-0799Object-Side Telecentric Lens, 1.5x, 108 mm WD, 2/3", coaxial light port 1.5C-mount2/3"108 mmF7.3-$679.00 Ships in 2-3 weeks
LS-TCL-0798Object-Side Telecentric Lens, 1.5x, 108 mm WD, 2/3" 1.5C-mount2/3"108 mmF7.3-$679.00 Ships in 2-3 weeks
