Telecentric lenses

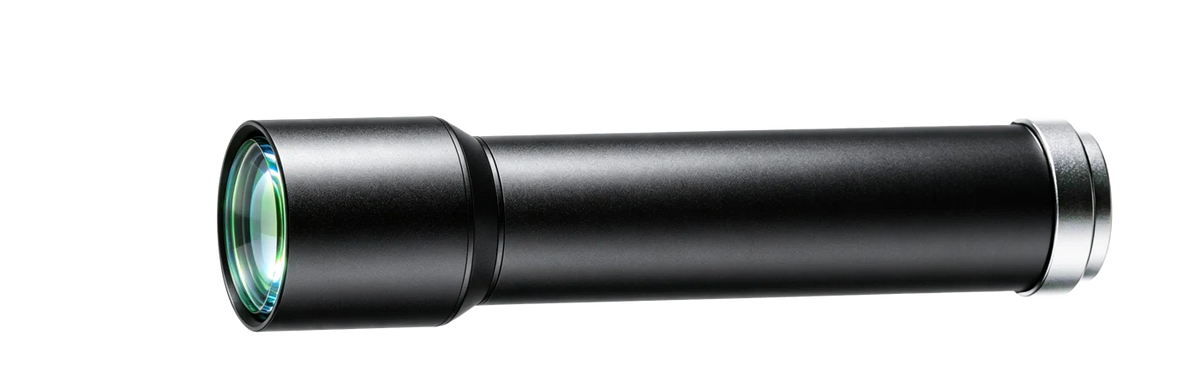

Object-Side Telecentric Lens, 1.5x, 200 mm WD, 2/3" (LS-TCL-0800)
Model LS-TCL-0800
- Magnification1.5
- MountC-mount
- Sensor2/3"
- Working distance200 mm
- ApertureF15.8
$679.00
In stock - ships the same business day (2 available, order by 2 PM ET)
0.66 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Object-Side Telecentric Lens, 1.5x, 200 mm WD, 2/3". Excellent image quality with an optimized fixed-magnification design Supports cameras up to 2/3"
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-0800 |
|---|
Optics
| Magnification | 1.5 |
|---|---|
| Working distance | 200 mm |
| F-number | F15.8 |
| Image size | Φ11 mm |
| Depth of field | 0.6 mm |
| Distortion | ≤0.03% |
| Object-side resolution | 7.1 μm |
| Object-side telecentricity | ≤0.1° |
| Coaxial light | Not supported |
Interfaces and I/O
| Connector type | C-Mount |
|---|
Environment and compliance
| Temperature | -10 ~ 50 °C |
|---|---|
| Certification | RoHS2.0 |
Mechanical

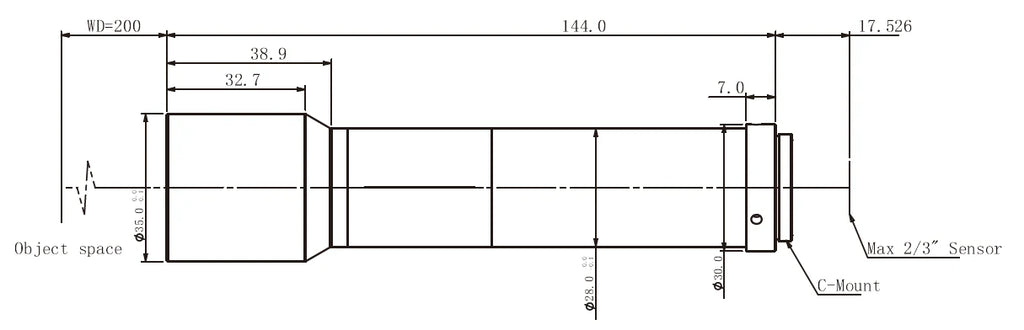

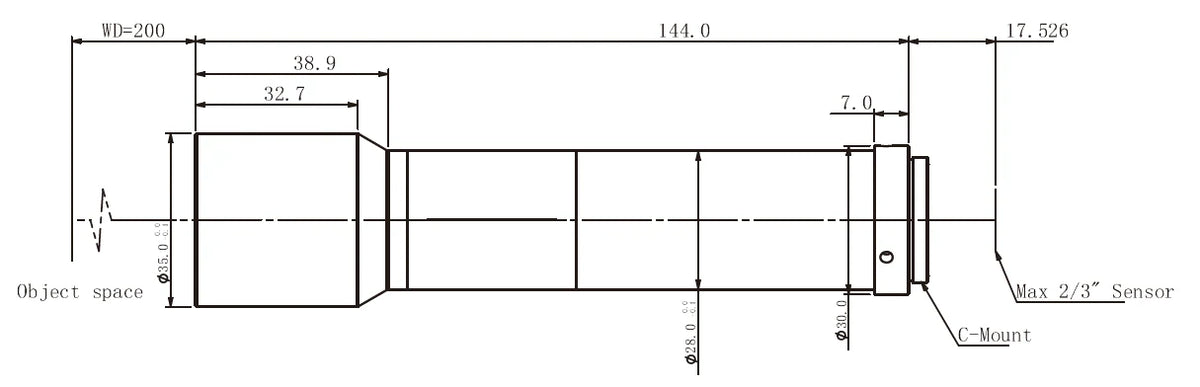

| Dimension | 144 mm × Φ35 mm |
|---|---|
| Shipping weight (estimated) | 0.66 kg |
