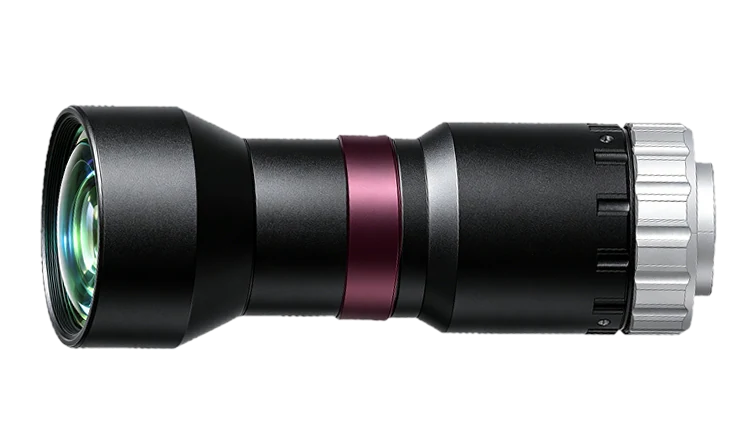

Bi-Telecentric Lens, 0.377x, 82 mm WD, 1" (LS-TCL-0556)
  • Bi-Telecentric Lens, 0.377x, 82 mm WD, 1" (LS-TCL-0556)

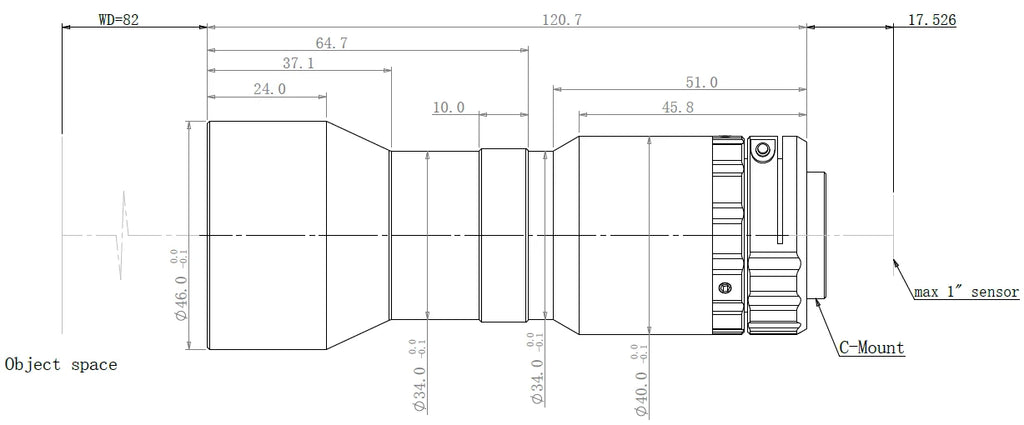

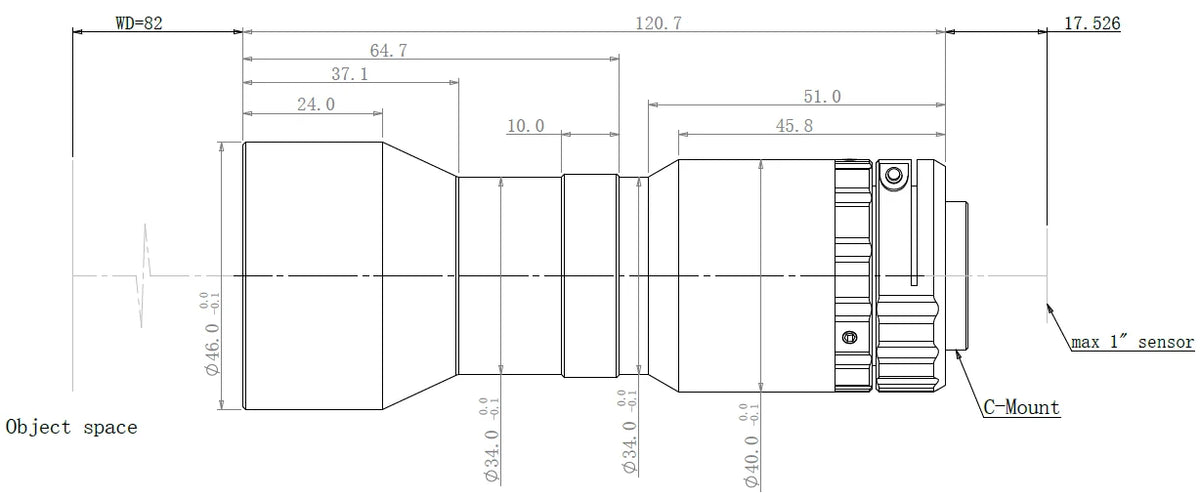

  • LS-TCL-0556 dimensions (mm)

Telecentric lenses

Bi-Telecentric Lens, 0.377x, 82 mm WD, 1" (LS-TCL-0556)

Model LS-TCL-0556

  • Magnification0.377
  • MountC-mount
  • Sensor1"
  • Working distance82 mm
  • ApertureF6.5
$1,029.00

In stock - ships the same business day (4 available, order by 2 PM ET)

0.66 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Bi-Telecentric Lens, 0.377x, 82 mm WD, 1" (LS-TCL-0556)LS-TCL-0556

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Bi-Telecentric Lens, 0.377x, 82 mm WD, 1". High resolution with consistent sharpness across the image Low distortion and high telecentricity for high-precision measurement and positioning

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-0556

Optics

Magnification0.377
Working distance82 mm
F-numberF6.5
Depth of field±3.1 @F11
Distortion< 0.1%
Object-side resolution10.2 μm
Object-side telecentricity< 0.1%
Image size1"
Coaxial lightNot supported

Interfaces and I/O

Connector typeC-Mount

Environment and compliance

Temperature-10~50°C
CertificationRoHS2.0

Mechanical

Dimension120.7 mm × Φ46 mm
Shipping weight (estimated)0.66 kg

Other models in the LS-TCL-S37 Series Bi-Telecentric lenses series

See all 37 models
ModelSize / key dataPriceAvailabilityLink
LS-TCL-0566 0.806x, 110 mm WD, 1.75" $859.00 3 in stock View
LS-TCL-0561 0.503x, 48 mm WD, 1" $929.00 5 in stock View
LS-TCL-0563 0.634x, 45 mm WD, 1.1" $999.00 3 in stock View
LS-TCL-0565 0.708x, 73 mm WD, 1.1" $999.00 5 in stock View
LS-TCL-0564 0.638x, 73 mm WD, 1" $999.00 4 in stock View
LS-TCL-0562 0.511x, 110 mm WD, 1.1" $1,019.00 5 in stock View
LS-TCL-0531 0.69x, 118 mm WD, 1.75" $1,109.00 3 in stock View
LS-TCL-0530 0.46x, 110 mm WD, 1" $1,169.00 2 in stock View
LS-TCL-0560 0.438x, 118 mm WD, 1.1" $1,269.00 2 in stock View
LS-TCL-0558 0.395x, 118 mm WD, 1" $1,279.00 5 in stock View
LS-TCL-0557 0.383x, 128 mm WD, 1.1" $1,379.00 3 in stock View
LS-TCL-0553 0.329x, 138 mm WD, 1.1" $1,379.00 3 in stock View
LS-TCL-0554 0.346x, 128 mm WD, 1" $1,379.00 5 in stock View
LS-TCL-0559 0.403x, 178 mm WD, 1.75" $1,519.00 4 in stock View
LS-TCL-0550 0.296x, 138 mm WD, 1" $1,599.00 5 in stock View
LS-TCL-0549 0.288x, 158 mm WD, 1.1" $1,609.00 2 in stock View
LS-TCL-0547 0.256x, 178 mm WD, 1.1" $1,649.00 3 in stock View
LS-TCL-0540 0.175x, 160 mm WD, 1.1" $1,649.00 5 in stock View
LS-TCL-0552 0.322x, 208 mm WD, 1.75" $1,749.00 3 in stock View
LS-TCL-0548 0.259x, 158 mm WD, 1" $1,759.00 5 in stock View
LS-TCL-0546 0.231x, 178 mm WD, 1" $1,789.00 2 in stock View
LS-TCL-0555 0.363x, 228 mm WD, 1.75" $1,809.00 3 in stock View
LS-TCL-0545 0.23x, 228 mm WD, 1.1" $1,909.00 2 in stock View
LS-TCL-0544 0.208x, 228 mm WD, 1" $1,929.00 2 in stock View
