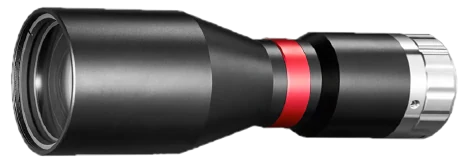

Bi-Telecentric Lens, 0.46x, 110 mm WD, 1" (LS-TCL-0530)
  • Bi-Telecentric Lens, 0.46x, 110 mm WD, 1" (LS-TCL-0530)

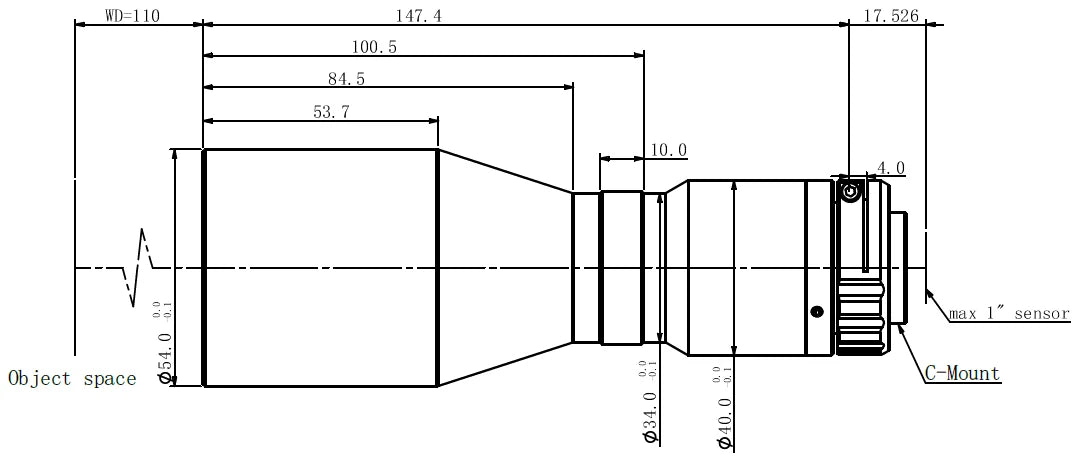

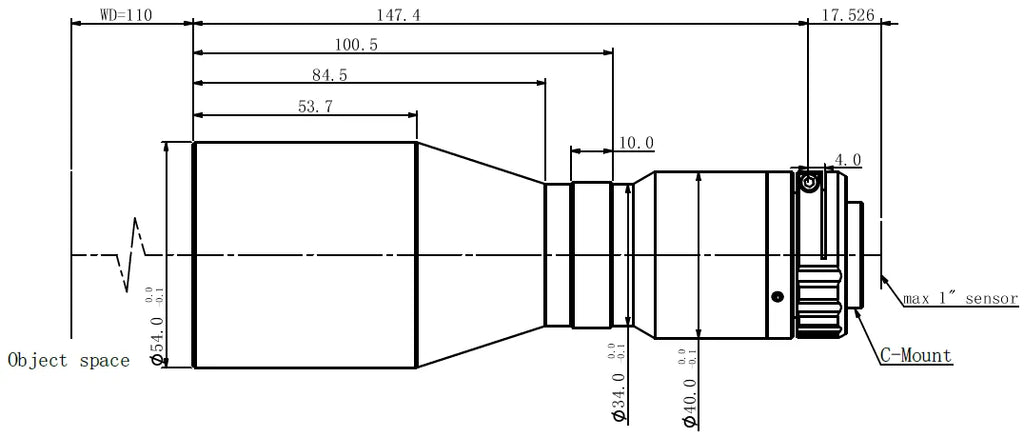

  • LS-TCL-0530 dimensions (mm)

Telecentric lenses

Bi-Telecentric Lens, 0.46x, 110 mm WD, 1" (LS-TCL-0530)

Model LS-TCL-0530

  • Magnification0.46
  • MountC-mount
  • Sensor1"
  • Working distance110 mm
  • ApertureF7.8
$1,169.00

Ships in 2-3 weeks

0.66 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Bi-Telecentric Lens, 0.46x, 110 mm WD, 1" (LS-TCL-0530)LS-TCL-0530

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Bi-Telecentric Lens, 0.46x, 110 mm WD, 1". High resolution with consistent sharpness across the image Low distortion and high telecentricity for high-precision measurement and positioning

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-0530

Optics

Magnification0.46
Working distance110 mm
F-numberF7.8
Depth of field±3.0 @F16
Distortion< 0.1%
Object-side resolution10.9 μm
Object-side telecentricity< 0.1%
Image size1"
Coaxial lightNot supported

Interfaces and I/O

Connector typeC-Mount

Environment and compliance

Temperature-10~50°C
CertificationRoHS2.0

Mechanical

Dimension147.4 mm × Φ54 mm
Shipping weight (estimated)0.66 kg
