Telecentric lenses

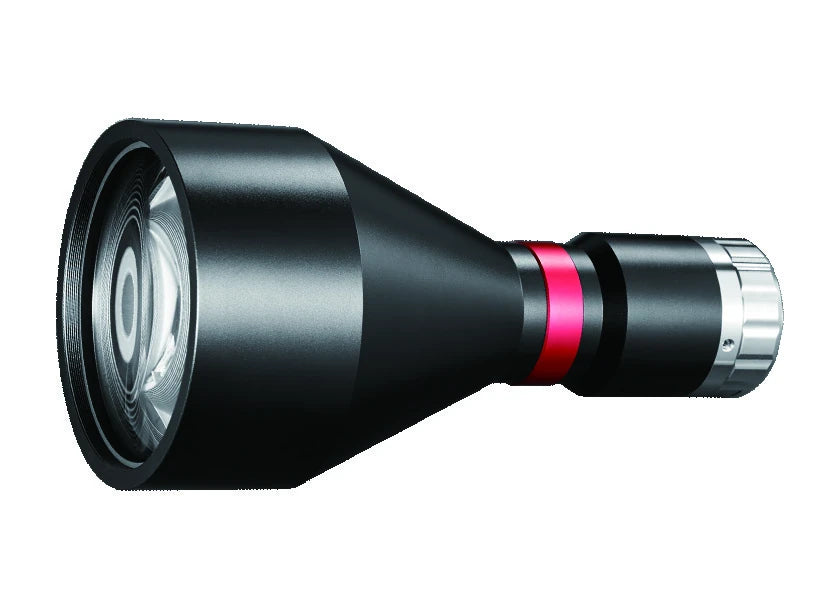

Bi-telecentric lens for 1.1" cameras, 0.26x, WD 178 mm, C-Mount (LS-TCL-2467)

Model LS-TCL-2467

Magnification0.260x
MountC-mount
Sensor1.1"
Working distance178±2
Field of view54.3x40.7

$2,449.00

Ships in 2-3 weeks

1.92 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Bi-telecentric lens series for sensors up to 1.1" (18.5 mm dia. in the table, 18.4 on the model cards), C-Mount. Models are named by object field of view (dia. mm); each lists magnification, working distance, F/#, MTF30, depth of field, distortion <0.1% and telecentricity <0.1°.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-TCL-2467

Optics

Distortion (% max)	<0.1
Telecentricity (deg max)	<0.1
F/#	6.3
MTF30 (lp/mm)	>130
Magnification (x)	0.260
Working distance (mm)	178±2
Depth of field (mm)	±3
Field of view on 1.1" IMX304(14.13x10.6) (mm x mm)	54.3x40.7
Field of view (dia. mm)	72
Object-to-image distance I/O (mm)	417±3
Best Aperture (F/#)	6.2
Field of view with IMX253 (14.19x10.38 sensor) (mm x mm)	55.4x40.6
Compatible telecentric led lighting	LS-CLM-0075

Sensor and imaging

Max sensor size (dia. mm)	18.5(1.1")
Sensor format	1.1"

Mechanical

Mount	C-Mount
Length (mm)	218
Weight (kg)	1.3

Downloads

Datasheet (PDF)LS-TCL-2467 · 2.3 MB

Features

Matrix design with extremely high imaging quality
Standard FOV from 26 to 240 mm, covering almost all industrial imaging applications
Compatible with all C-mount cameras from 1/2.5" to 1.1", and F/M-mount cameras from 4/3" to 59 mm
More than 168 standard types and hundreds of customised items
Excellent F-number, high telecentricity, extremely low distortion, very large DoF
Each lens comes with an imaging quality test report
Lens mount with conveniently adjustable flange distance (AL)
Matrix-design with extremely high imaging quality
Compatible with all C mount cameras from 1/2.5" to 1.1", and F/M mount cameras from 4/3" to 59 mm
Excellent F number, high telecentricity, extremely low distortion, super large DoF
Each LS-TCL-S71 series lens comes with an imaging quality test report
Optimized for 1/2.5"~1.1" C-Mount cameras
Large FOV from 26mm upto 300mm
Excellent resolution for high pixel cameras
Low distortion, good telecentricity,big aperture and big depth of field for high end application.

Applications

Industrial imaging applications (standard FOV 26 to 240 mm)

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Build a system with this part Configure a system Ask an engineer

Other models in the Bi-telecentric lens for 1.1" cameras (LS-TCL-S71) series

See all 23 models

Model	Size / key data	Price	Availability	Link
LS-TCL-2459	0.72x, WD 72 mm, 1.1", C-Mount	$1,399.00	Ships in 2-3 weeks	View
LS-TCL-2460	0.516x, WD 111 mm, 1.1", C-Mount	$1,629.00	Ships in 2-3 weeks	View
LS-TCL-2461	0.444x, WD 119 mm, 1.1", C-Mount	$1,769.00	Ships in 2-3 weeks	View
LS-TCL-2463	0.383x, WD 138 mm, 1.1", C-mount	$1,899.00	Ships in 2-3 weeks	View
LS-TCL-2462	0.389x, WD 128 mm, 1.1", C-Mount	$1,909.00	Ships in 2-3 weeks	View
LS-TCL-2464	0.334x, WD 138 mm, 1.1", C-Mount	$2,069.00	Ships in 2-3 weeks	View
LS-TCL-2465	0.293x, WD 187 mm, 1.1", C-Mount	$2,259.00	Ships in 2-3 weeks	View
LS-TCL-2466	0.292x, WD 159 mm, 1.1", C-Mount	$2,259.00	Ships in 2-3 weeks	View
LS-TCL-2469	0.233x, WD 229 mm, 1.1", C-Mount	$2,619.00	Ships in 2-3 weeks	View
LS-TCL-2468	0.233x, WD 229 mm, 1.1", C-Mount	$2,639.00	Ships in 2-3 weeks	View
LS-TCL-2470	0.204x, WD 208 mm, 1.1", C-mount	$2,889.00	Ships in 2-3 weeks	View
LS-TCL-2471	0.201x, WD 254 mm, 1.1", C-Mount	$2,969.00	Ships in 2-3 weeks	View
LS-TCL-2472	0.168x, WD 251 mm, 1.1", C-Mount	$3,399.00	Ships in 2-3 weeks	View
LS-TCL-2473	0.153x, WD 273 mm, 1.1", C-mount	$3,629.00	Ships in 2-3 weeks	View
LS-TCL-2474	0.138x, WD 288 mm, 1.1", C-Mount	$4,009.00	Ships in 2-3 weeks	View
LS-TCL-2475	0.125x, WD 301 mm, 1.1", C-Mount	$4,319.00	Ships in 2-3 weeks	View
LS-TCL-2476	0.11x, WD 318 mm, 1.1", C-Mount	$4,779.00	Ships in 2-3 weeks	View
LS-TCL-2477	0.097x, WD 330 mm, 1.1", C-mount	$5,379.00	Ships in 2-3 weeks	View
LS-TCL-2478	0.085x, WD 372 mm, 1.1", C-mount	$6,029.00	Ships in 2-3 weeks	View
LS-TCL-2480	0.069x, WD 438 mm, 1.1", C-Mount	$6,039.00	Ships in 2-3 weeks	View
LS-TCL-2479	0.078x, WD 410 mm, 1.1", C-Mount	$6,599.00	Ships in 2-3 weeks	View
LS-TCL-2481	0.061x, WD 465 mm, 1.1", C-mount	$8,689.00 Quote	Ships in 2-3 weeks	View
