Telecentric lenses

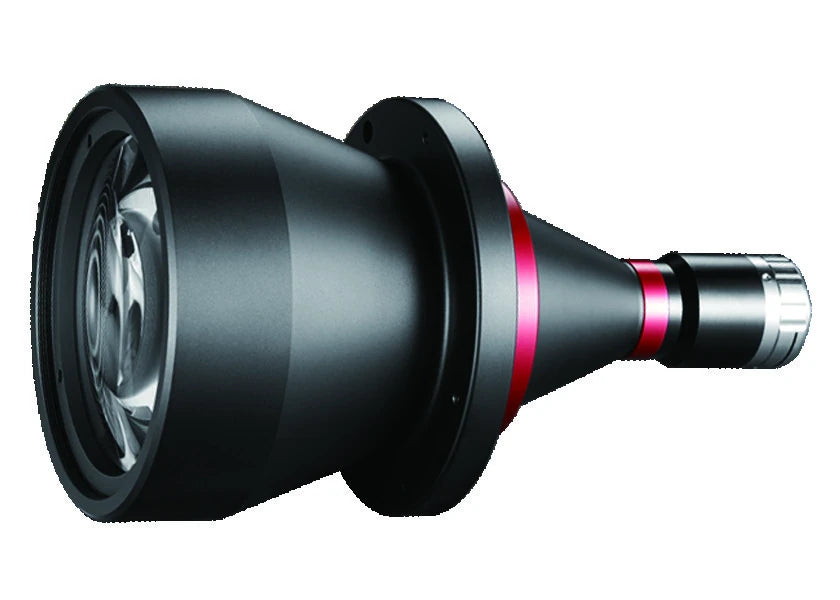

Bi-telecentric lens for 1.1" cameras, 0.061x, WD 465 mm, C-mount (LS-TCL-2481)

Model LS-TCL-2481

Magnification0.061x
MountC-mount
Sensor1.1"
Working distance465±6
Field of view232.6x170.2

$8,689.00

Quote

Quoted price: add to quote for lead time and volume pricing.

Ships in 2-3 weeks

65.48 kg shipping weight

Quantity

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Bi-telecentric lens series for sensors up to 1.1" (18.5 mm dia. in the table, 18.4 on the model cards), C-Mount. Models are named by object field of view (dia. mm); each lists magnification, working distance, F/#, MTF30, depth of field, distortion <0.1% and telecentricity <0.1°.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-TCL-2481
FOV	300mm

Optics

Distortion (% max)	<0.1
Telecentricity (deg max)	<0.1
Working distance (mm)	465±6
Best Aperture (F/#)	6.2
MTF30 (lp/mm)	>145
Depth of field (mm)	±118@F11
Field of view with IMX253 (14.19x10.38 sensor) (mm x mm)	232.6x170.2
Magnification (x)	0.061
Compatible telecentric led lighting	LS-CLM-0092

Sensor and imaging

Max sensor size (dia. mm)	18.5(1.1")

Interfaces and I/O

Length of I/O (mm)	1145±6

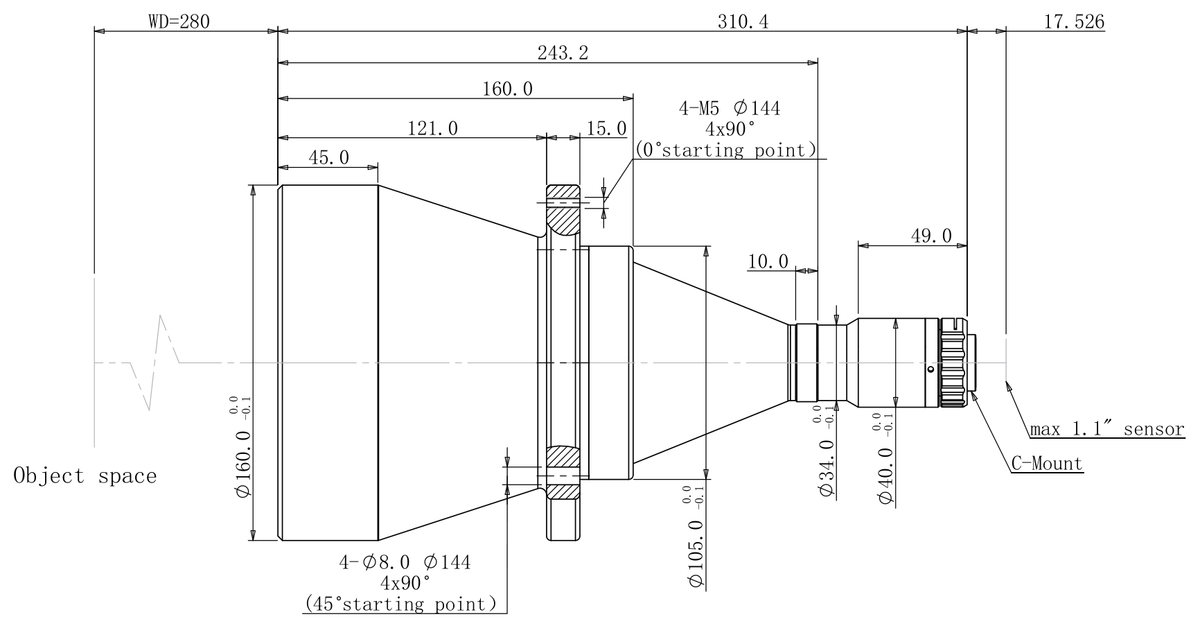

Mechanical

Mount	C-Mount
Length (mm)	662.7
Weight (kg)	46.7

Downloads

Datasheet (PDF)LS-TCL-2481 · 2.3 MB

Features

Matrix design with extremely high imaging quality
Standard FOV from 26 to 240 mm, covering almost all industrial imaging applications
Compatible with all C-mount cameras from 1/2.5" to 1.1", and F/M-mount cameras from 4/3" to 59 mm
More than 168 standard types and hundreds of customised items
Excellent F-number, high telecentricity, extremely low distortion, very large DoF
Each lens comes with an imaging quality test report
Lens mount with conveniently adjustable flange distance (AL)
Matrix-design with extremely high imaging quality
Compatible with all C mount cameras from 1/2.5" to 1.1", and F/M mount cameras from 4/3" to 59 mm
Excellent F number, high telecentricity, extremely low distortion, super large DoF
Each LS-TCL-S71 series lens comes with an imaging quality test report
Optimized for 1/2.5"~1.1" C-Mount cameras
Large FOV from 26mm upto 300mm
Excellent resolution for high pixel cameras
Low distortion, good telecentricity,big aperture and big depth of field for high end application.

Applications

Industrial imaging applications (standard FOV 26 to 240 mm)
