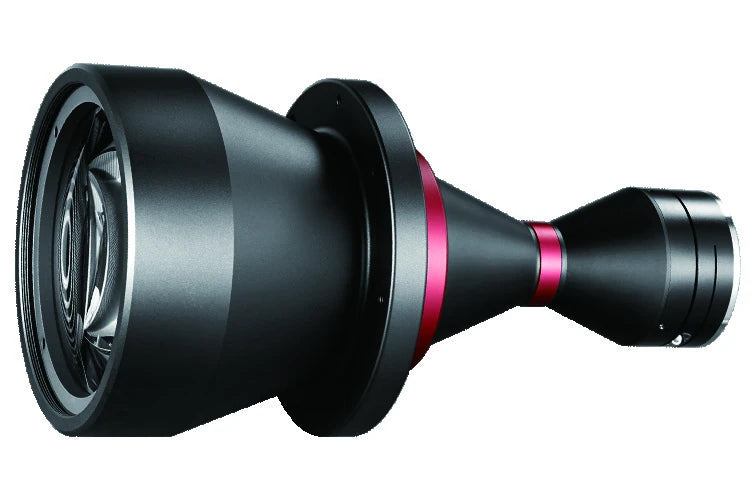

Bi-telecentric lens for 1.75" cameras, 0.097x, WD 465 mm, 1.75", F or Other-mount (LS-TCL-2644)
  • Bi-telecentric lens for 1.75" cameras, 0.097x, WD 465 mm, 1.75", F or Other-mount (LS-TCL-2644)

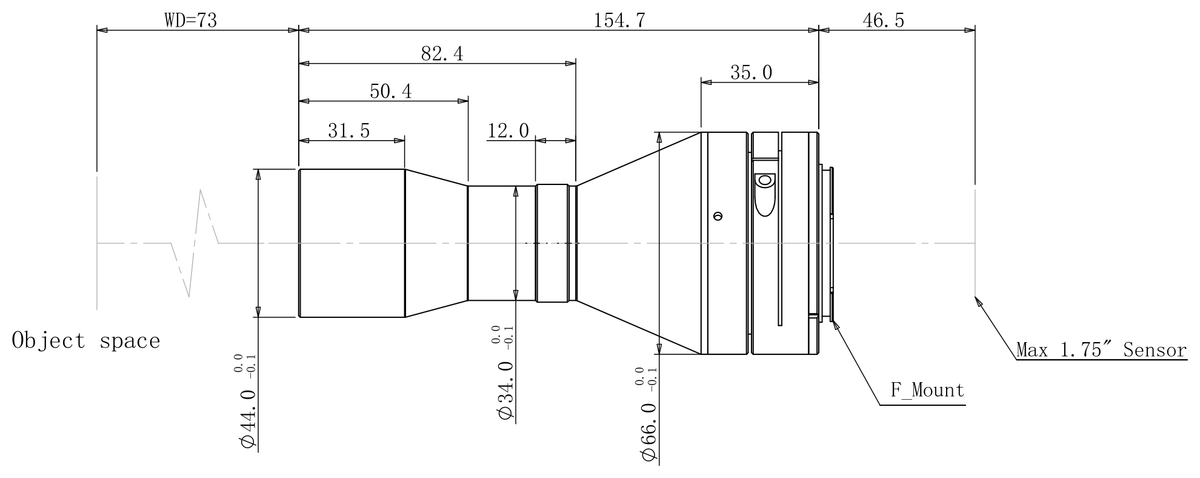

  • LS-TCL-2644 dimensions (mm)

Telecentric lenses

Bi-telecentric lens for 1.75" cameras, 0.097x, WD 465 mm, 1.75", F or Other-mount (LS-TCL-2644)

Model LS-TCL-2644

  • Magnification0.097x
  • MountF-mount
  • Sensor1.75"
  • Working distance465±6
  • Field of view300
$8,699.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Ships in 2-3 weeks

65.9 kg shipping weight

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Request a quote

Bi-telecentric lens for 1.75" cameras, 0.097x, WD 465 mm, 1.75", F or Other-mount (LS-TCL-2644)LS-TCL-2644

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Bi-telecentric lens series for sensors up to 1.75" (29 mm dia.), F-Mount/Other. Models are named by object field of view (dia. mm); each lists magnification, working distance, F/#, MTF30, depth of field, distortion <0.1% and telecentricity <0.1°.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-2644

Optics

Distortion (% max)<0.1
Telecentricity (deg max)<0.1
Magnification (x)0.097
Object field of view (dia. mm)300
Working distance (mm)465±6
Best Aperture (F/#)8.5
MTF30 (lp/mm)>105
Depth of field (mm)±68@F16
Field of view with CMV12000 (22.53x16.90 sensor) (mm x mm)232.3x174.2
Field of view with PYTHON16k (18.43x18.43 sensor) (mm x mm)190.0x190.0
Field of view with LineScan-2k/4k/8k (28.8mm sensor) (mm x mm)296.9mm
Compatible telecentric led lightingLS-CLM-0092

Sensor and imaging

Max sensor size (dia. mm)29(1.75")

Interfaces and I/O

Length of I/O (mm)1181±6

Mechanical

MountF-Mount/Other
Length (mm)669.8
Weight (kg)47.0
