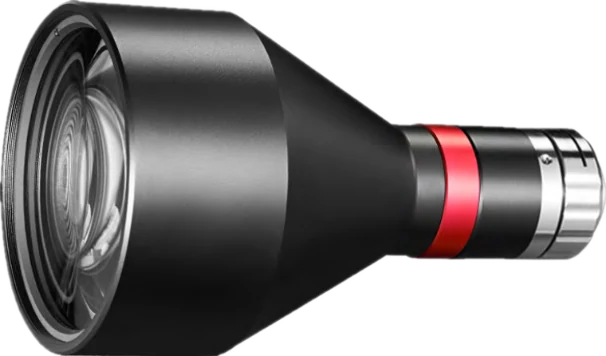

Bi-Telecentric Lens, 0.158x, 178 mm WD, 2/3" (LS-TCL-0708)
  • Bi-Telecentric Lens, 0.158x, 178 mm WD, 2/3" (LS-TCL-0708)

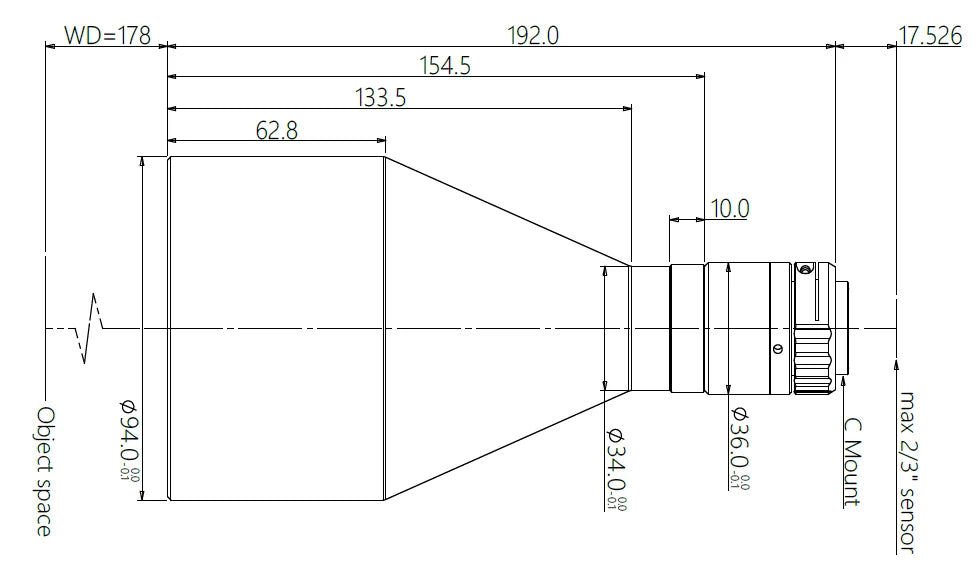

  • LS-TCL-0708 dimensions (mm)

Telecentric lenses

Bi-Telecentric Lens, 0.158x, 178 mm WD, 2/3" (LS-TCL-0708)

Model LS-TCL-0708

  • Magnification0.158
  • MountC-mount
  • Sensor2/3"
  • Working distance178 mm
  • ApertureF4.9
$1,689.00

Ships in 2-3 weeks

0.66 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Bi-Telecentric Lens, 0.158x, 178 mm WD, 2/3" (LS-TCL-0708)LS-TCL-0708

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Bi-Telecentric Lens, 0.158x, 178 mm WD, 2/3". High resolution with consistent sharpness across the image Low distortion and high telecentricity for high-precision measurement and positioning

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-0708

Optics

Magnification0.158
Working distance178 mm
F-numberF4.9
Image size2/3"
Depth of field±17.6 mm@F11
Distortion≤ 0.1%
Object-side resolution17.6 μm
Object-side telecentricity≤ 0.1°
Coaxial lightNot supported

Interfaces and I/O

Connector typeC-Mount

Environment and compliance

Temperature-10~50°C
CertificationRoHS2.0

Mechanical

Dimension192.0 mm × Φ94 mm
Shipping weight (estimated)0.66 kg

Other models in the LS-TCL-S40 Series Bi-Telecentric lenses series

See all 9 models
ModelSize / key dataPriceAvailabilityLink
LS-TCL-0706 0.500x, 65 mm WD, 2/3" $929.00 Ships in 2-3 weeks View
LS-TCL-0714 0.438x, 73 mm WD, 2/3" $1,029.00 Ships in 2-3 weeks View
LS-TCL-0713 0.317x, 110 mm WD, 2/3" $1,039.00 Ships in 2-3 weeks View
LS-TCL-0712 0.271x, 118 mm WD, 2/3" $1,279.00 Ships in 2-3 weeks View
LS-TCL-0711 0.238x, 128 mm WD, 2/3" $1,379.00 Ships in 2-3 weeks View
LS-TCL-0710 0.204x, 138 mm WD, 2/3" $1,409.00 Ships in 2-3 weeks View
LS-TCL-0709 0.178x, 158 mm WD, 2/3" $1,649.00 Ships in 2-3 weeks View
LS-TCL-0707 0.095x, 273 mm WD, 2/3" $2,529.00 Quote Ships in 2-3 weeks View
