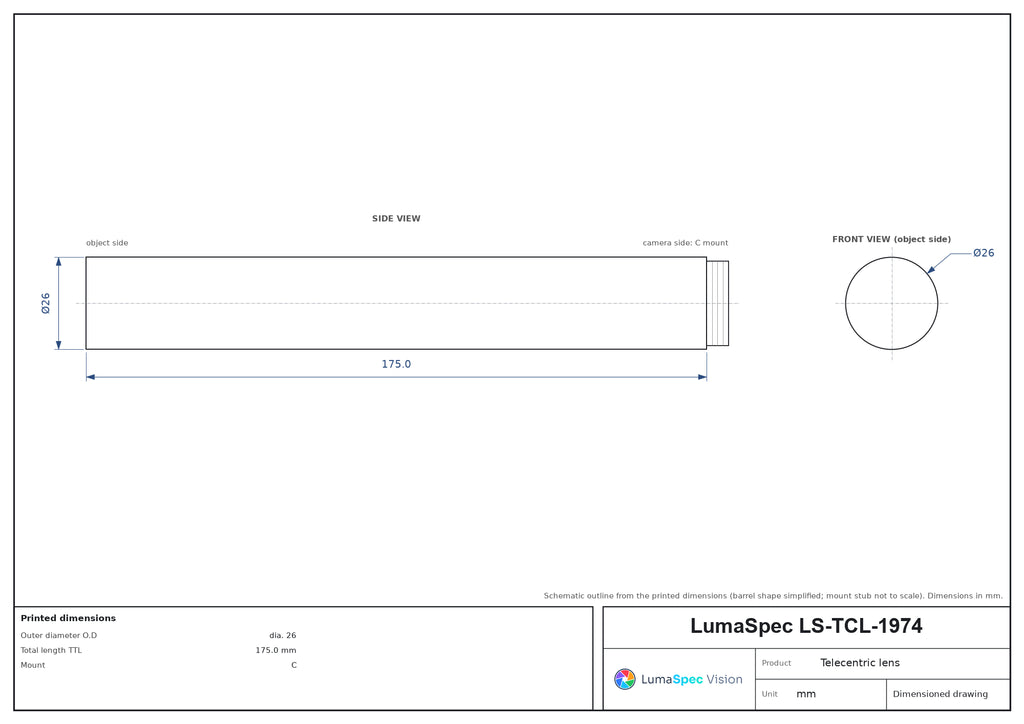

LS-TCL-1974 dimensions (mm)

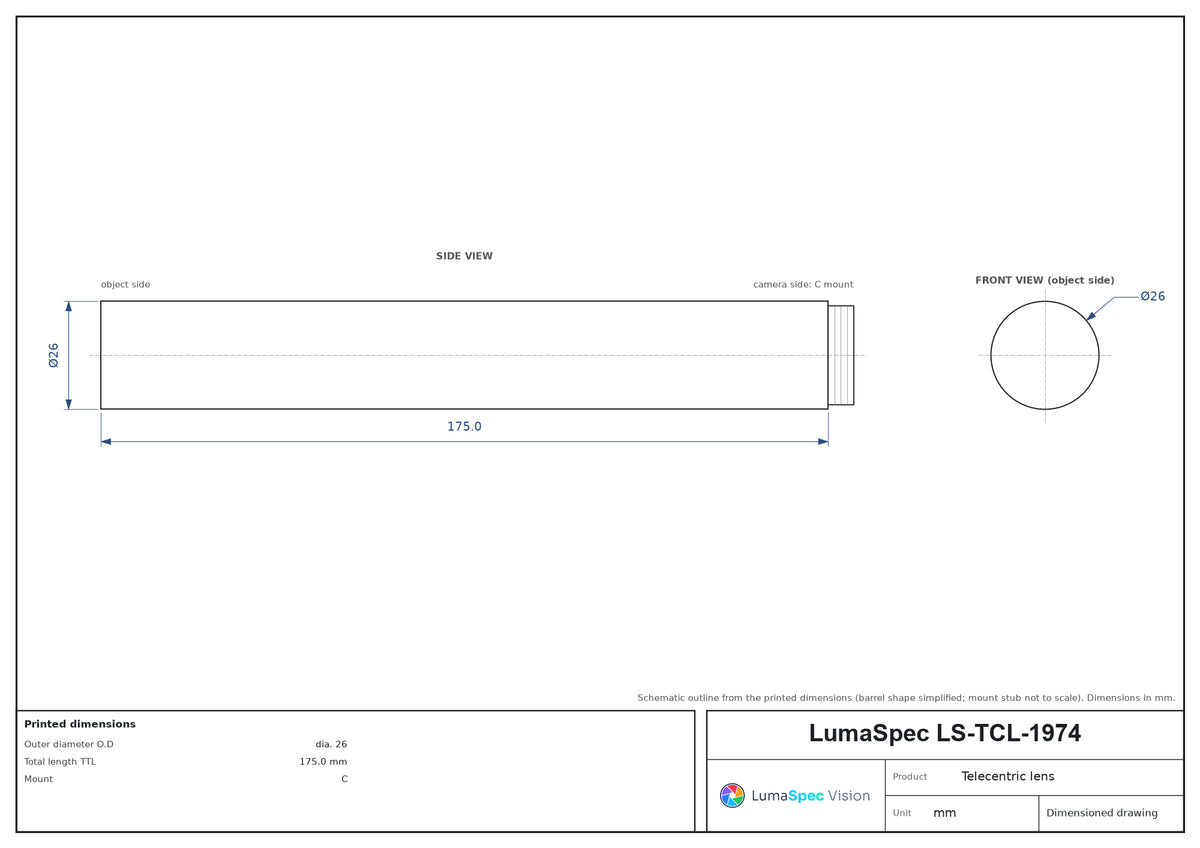

  • LS-TCL-1974 dimensions (mm)
  • 1x, WD 510 mm, 2/3", C-mount telecentric lens, length 175.0 mm (LS-TCL-1974)

Main picture: this model's dimensioned drawing, from its printed dimensions. The photo shows representative lenses of this series, not this exact model; size and shape differ by model.

Telecentric lenses

1x, WD 510 mm, 2/3", C-mount telecentric lens, length 175.0 mm (LS-TCL-1974)

Model LS-TCL-1974

  • Magnification1.0x
  • MountC-mount
  • Sensor2/3"
  • Working distance510 mm
  • Aperture25.7
$1,239.00

Ships in 2-3 weeks

0.59 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

1x, WD 510 mm, 2/3", C-mount telecentric lens, length 175.0 mm (LS-TCL-1974)LS-TCL-1974

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

LS-TCL-1974: magnification 1.0x, working distance 510 mm, NA 0.0197, theoretical depth of field 2.06 mm, total length TTL 175.0 mm.

1x, WD 510 mm, 2/3", C-mount Telecentric Lens. At a glance: magnification 1.0x; working distance 510 mm; max sensor size 11.0 mm (2/3"); object-side resolution 17.0 µm; image-side f/# 25.7.

  • Tracked worldwide shippingTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-1974

Optics

Magnification (x)1.0
Working distance (mm)510
Image-side F/#25.7
Object-side telecentricity (deg max)<0.1
Image-side distortion (% max)<0.1
Numerical aperture NA0.0197
Object-side resolution (um)17.0
Theoretical depth of field (mm)2.06
Image-side MTF30 (lp/mm)32
Total length TTL (mm)175.0
Front filter threadM25x0.5 after removing the front lens retaining ring

Sensor and imaging

Sensor format2/3"
Max sensor size (dia. mm)11.0

Mechanical

MountC
Outer diameter O.D (mm)dia. 26
Shipping weight (estimated)0.59 kg

Photo shows a representative model of this series; see the specifications for this model.

Engineering data

Field of view with the LS-TCL-1974

Worked out from this lens's own magnification and image circle: the field it sees on each sensor format.

Image circleØ 11 mmCovers sensors up to 2/3"
Magnification1×
Working distance510 mmDepth of field 2.06 mm
Distortion< 0.1 %
Total length175.0 mm
SizeØ 26 mm
NA0.0197
Filter threadM25 × 0.5behind the front retaining ring
MTF32 lp/mmimage side, at 30 % contrast
Field of view (width × height) by sensor format
Sensor format1×
1/2.5"5.76 × 4.29 mm5.8 × 4.3 mm
1/2"6.4 × 4.8 mm6.4 × 4.8 mm
1/1.8"7.07 × 5.3 mm7.1 × 5.3 mm
2/3"8.8 × 6.6 mm8.8 × 6.6 mm

Field of view = sensor size ÷ magnification. Sensor sizes are typical for each optical format.

Compatible parts

Fits with this part

Checked with the configurator's fit rules: lens mount, image circle, resolution and spectral band, and the camera's printed connector for cables.

Build the full system with this part

Cameras this lens fits

7.1 mm sensor diagonal; this lens covers up to 11 mm

9.5 mm sensor diagonal; this lens covers up to 11 mm

6.6 mm sensor diagonal; this lens covers up to 11 mm

8 mm sensor diagonal; this lens covers up to 11 mm

8.9 mm sensor diagonal; this lens covers up to 11 mm

8.8 mm sensor diagonal; this lens covers up to 11 mm

Adapters

For CS-mount cameras
