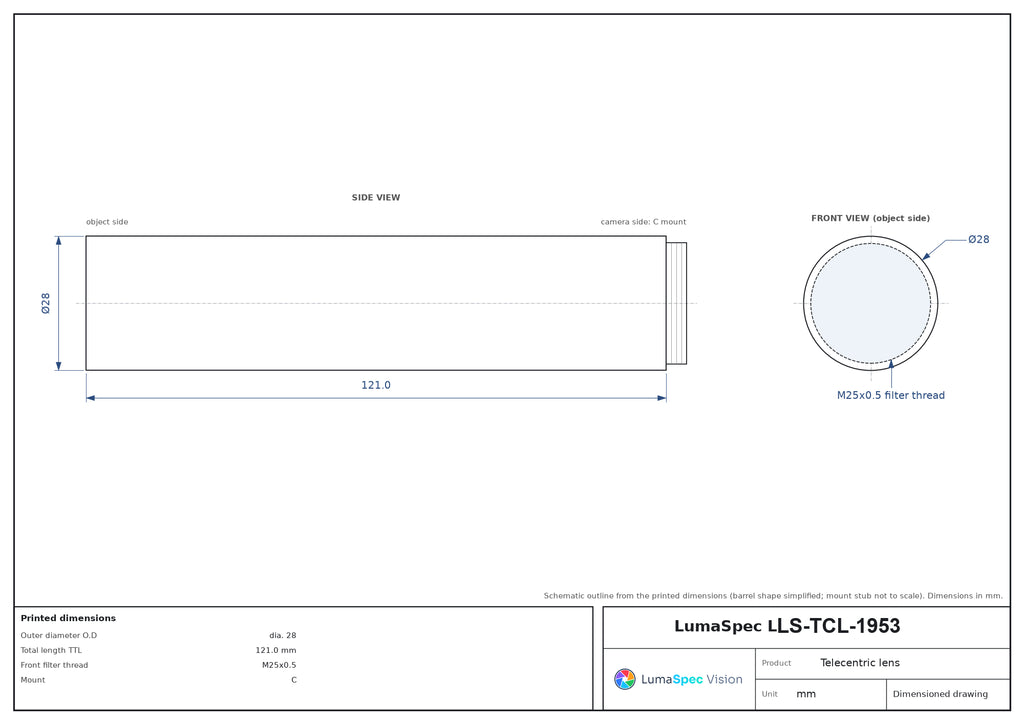

  • LS-TCL-1953 dimensions (mm)

Telecentric lenses

1.3x, WD 210 mm, 1/1.8", C-mount Telecentric Lens (LS-TCL-1953)

Model LS-TCL-1953

  • Magnification1.3x
  • MountC-mount
  • Sensor1/1.8"
  • Working distance210 mm
  • Aperture28.9
$1,249.00

Ships in 2-3 weeks

0.54 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

1.3x, WD 210 mm, 1/1.8", C-mount Telecentric Lens (LS-TCL-1953)LS-TCL-1953

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

1.3x, WD 210 mm, 1/1.8", C-mount Telecentric Lens. At a glance: magnification 1.3x; working distance 210 mm; max sensor size 9 mm (1/1.8"); object-side resolution 15.0 µm; image-side f/# 28.9.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-1953

Optics

Magnification (x)1.3
Working distance (mm)210
Image-side F/#28.9
Object-side telecentricity (deg max)<0.1
Image-side distortion (% max)0.3
Numerical aperture NA0.02241
Object-side resolution (um)15.0
Theoretical depth of field (mm)1.37
Image-side MTF30 (lp/mm)30
Total length TTL (mm)121.0
Front filter threadM25x0.5

Sensor and imaging

Max sensor size (dia. mm)9(1/1.8")

Mechanical

MountC
Outer diameter O.D (mm)dia. 28
Shipping weight (estimated)0.54 kg

Photo shows a representative model of this series; see the specifications for this model.
