Telecentric lenses
1.5x, WD 410 mm, 1/3", C-mount Telecentric Lens (LS-TCL-1943)
Model LS-TCL-1943
- Magnification1.5x
- MountC-mount
- Sensor1/3"
- Working distance410 mm
- Aperture40
$1,299.00
In stock - ships the same business day (2 available, order by 2 PM ET)
0.5 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
1.5x, WD 410 mm, 1/3", C-mount Telecentric Lens. At a glance: magnification 1.5x; working distance 410 mm; max sensor size 6 mm (1/3"); object-side resolution 18.1 µm; image-side f/# 40.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-1943 |
|---|
Optics
| Magnification (x) | 1.5 |
|---|---|
| Working distance (mm) | 410 |
| Image-side F/# | 40 |
| Object-side telecentricity (deg max) | <0.1 |
| Image-side distortion (% max) | <0.1 |
| Numerical aperture NA | 0.01853 |
| Object-side resolution (um) | 18.1 |
| Theoretical depth of field (mm) | 1.42 |
| Image-side MTF30 (lp/mm) | 24 |
| Total length TTL (mm) | 194.1 |
| Front filter thread | M25x0.5 after removing the front lens retaining ring |
Sensor and imaging
| Max sensor size (dia. mm) | 6(1/3") |
|---|

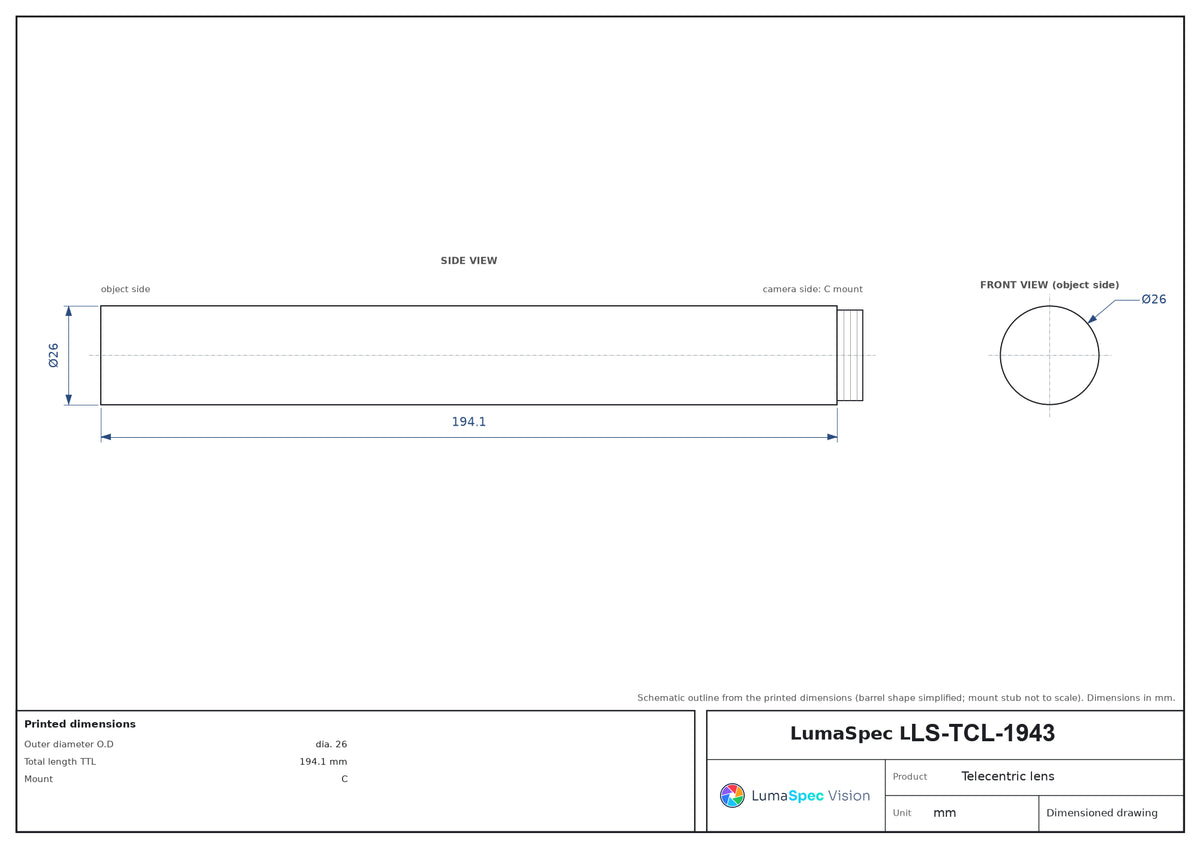

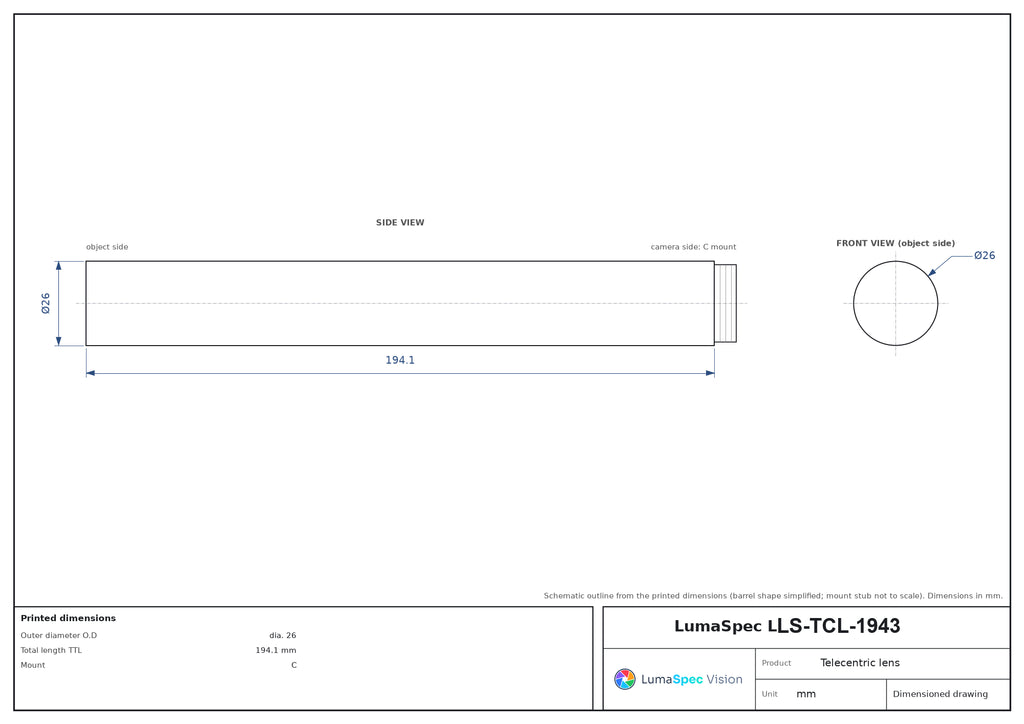

Mechanical
| Mount | C |
|---|---|
| Outer diameter O.D (mm) | dia. 26 |
| Shipping weight (estimated) | 0.50 kg |
Photo shows a representative model of this series; see the specifications for this model.
