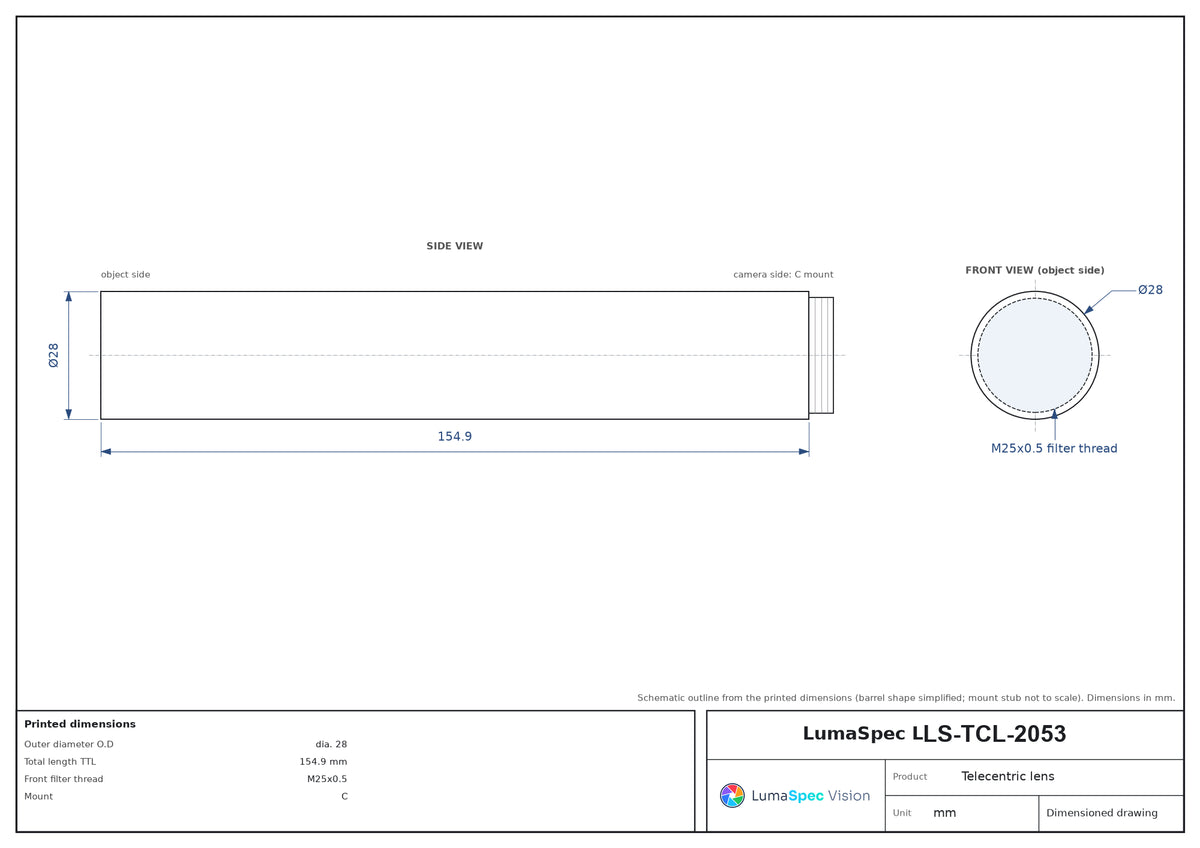

  • LS-TCL-2053 dimensions (mm)

Telecentric lenses

1.5x, WD 110 mm, 2/3", C-mount Telecentric Lens, length 154.9 mm (LS-TCL-2053)

Model LS-TCL-2053

  • Magnification1.5x
  • MountC-mount
  • Sensor2/3"
  • Working distance110 mm
  • Aperture20.1
$1,239.00

Ships in 2-3 weeks

0.54 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

1.5x, WD 110 mm, 2/3", C-mount Telecentric Lens, length 154.9 mm (LS-TCL-2053)LS-TCL-2053

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

1.5x, WD 110 mm, 2/3", C-mount Telecentric Lens. At a glance: magnification 1.5x; working distance 110 mm; max sensor size 11.0 mm (2/3"); object-side resolution 9.1 µm; image-side f/# 20.1.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-2053

Optics

Magnification (x)1.5
Working distance (mm)110
Image-side F/#20.1
Object-side telecentricity (deg max)<0.1
Image-side distortion (% max)1.4
Numerical aperture NA0.0368
Object-side resolution (um)9.1
Theoretical depth of field (mm)0.71
Image-side MTF30 (lp/mm)45
Total length TTL (mm)154.9
Front filter threadM25x0.5

Sensor and imaging

Max sensor size (dia. mm)11.0(2/3")

Mechanical

MountC
Outer diameter O.D (mm)dia. 28
Shipping weight (estimated)0.54 kg

Photo shows a representative model of this series; see the specifications for this model.
