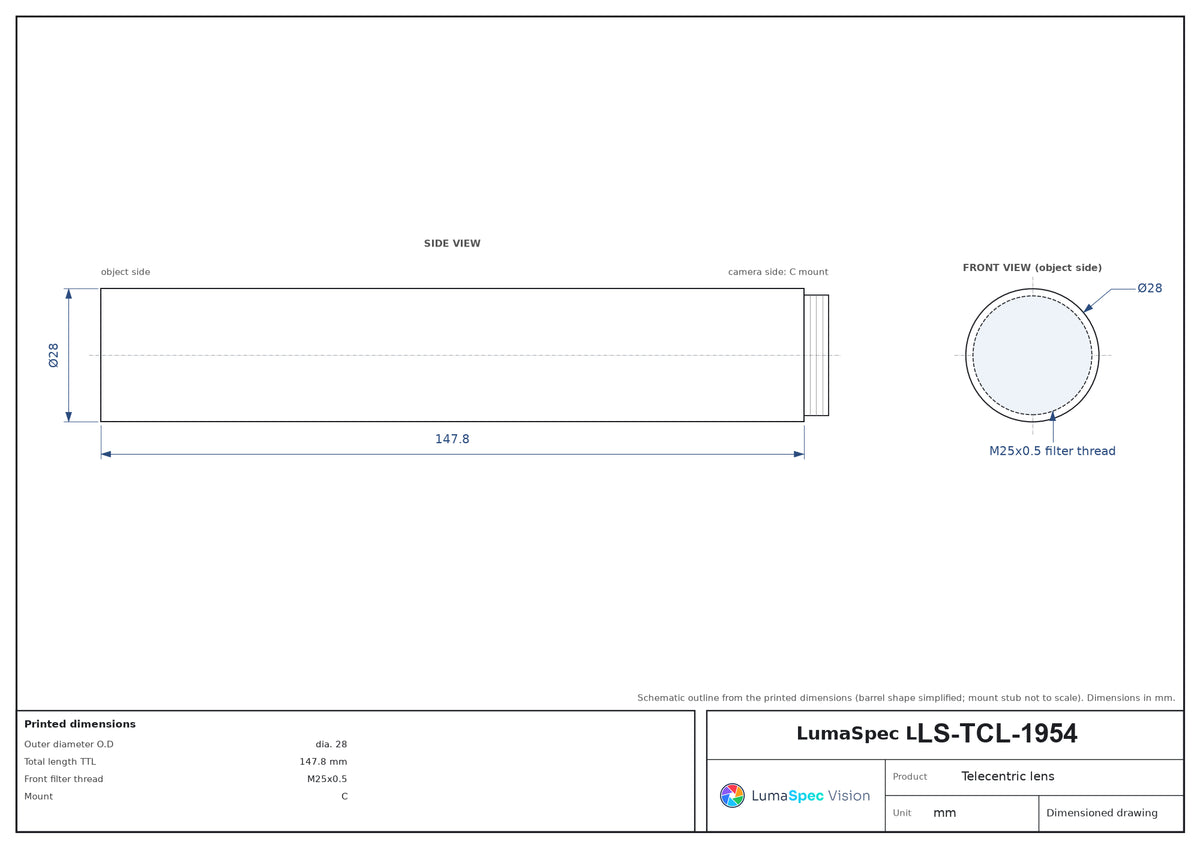

  • LS-TCL-1954 dimensions (mm)

Telecentric lenses

2x, WD 200 mm, 1/2.5", C-mount Telecentric Lens, length 147.8 mm (LS-TCL-1954)

Model LS-TCL-1954

  • Magnification2.0x
  • MountC-mount
  • Sensor1/2.5"
  • Working distance200 mm
  • Aperture29.6
$1,239.00

Ships in 2-3 weeks

0.5 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

2x, WD 200 mm, 1/2.5", C-mount Telecentric Lens, length 147.8 mm (LS-TCL-1954)LS-TCL-1954

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

2x, WD 200 mm, 1/2.5", C-mount Telecentric Lens. At a glance: magnification 2.0x; working distance 200 mm; max sensor size 7.2 mm (1/2.5"); object-side resolution 12.6 µm; image-side f/# 29.6.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-1954

Optics

Magnification (x)2.0
Working distance (mm)200
Image-side F/#29.6
Object-side telecentricity (deg max)<0.1
Image-side distortion (% max)<0.4
Numerical aperture NA0.02673
Object-side resolution (um)12.6
Theoretical depth of field (mm)0.6
Image-side MTF30 (lp/mm)20
Total length TTL (mm)147.8
Front filter threadM25x0.5

Sensor and imaging

Max sensor size (dia. mm)7.2(1/2.5")

Mechanical

MountC
Outer diameter O.D (mm)dia. 28
Shipping weight (estimated)0.50 kg

Photo shows a representative model of this series; see the specifications for this model.
