Telecentric lenses
1.5x, WD 330 mm, 2/3", C-mount Telecentric Lens, length 209.5 mm (LS-TCL-2061)
Model LS-TCL-2061
- Magnification1.5x
- MountC-mount
- Sensor2/3"
- Working distance330 mm
- Aperture30.2
$1,239.00
Ships in 2-3 weeks
0.54 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
1.5x, WD 330 mm, 2/3", C-mount Telecentric Lens. At a glance: magnification 1.5x; working distance 330 mm; max sensor size 11.0 mm (2/3"); object-side resolution 14.1 µm; image-side f/# 30.2.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-2061 |
|---|
Optics
| Magnification (x) | 1.5 |
|---|---|
| Working distance (mm) | 330 |
| Image-side F/# | 30.2 |
| Object-side telecentricity (deg max) | <0.1 |
| Image-side distortion (% max) | 1.5 |
| Numerical aperture NA | 0.0238 |
| Object-side resolution (um) | 14.1 |
| Theoretical depth of field (mm) | 1.07 |
| Image-side MTF30 (lp/mm) | 25 |

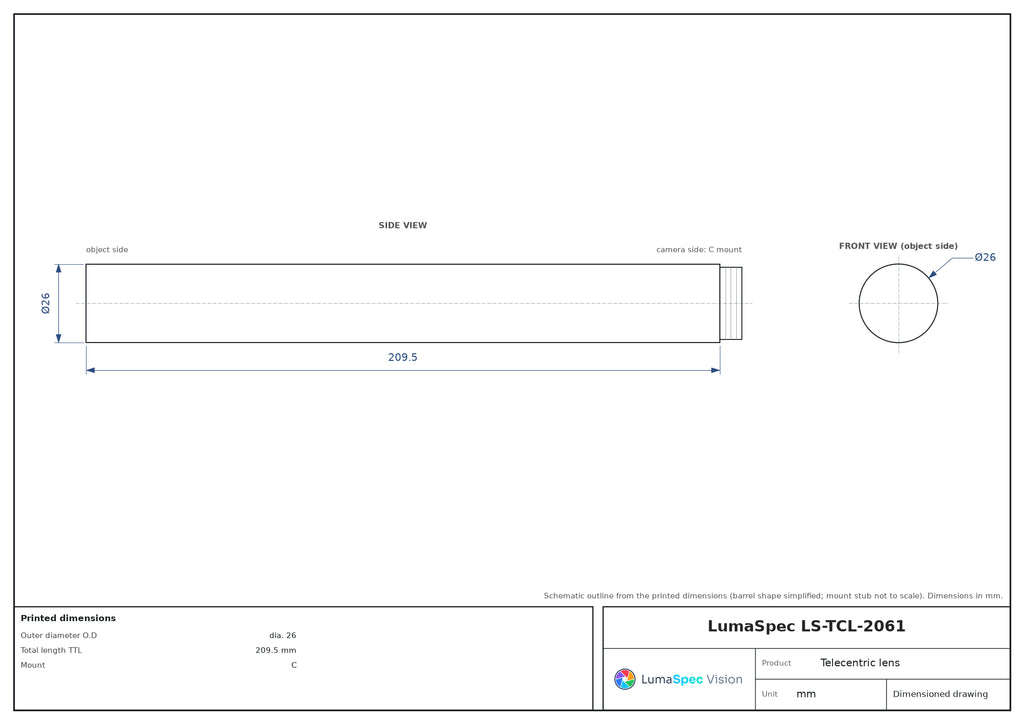

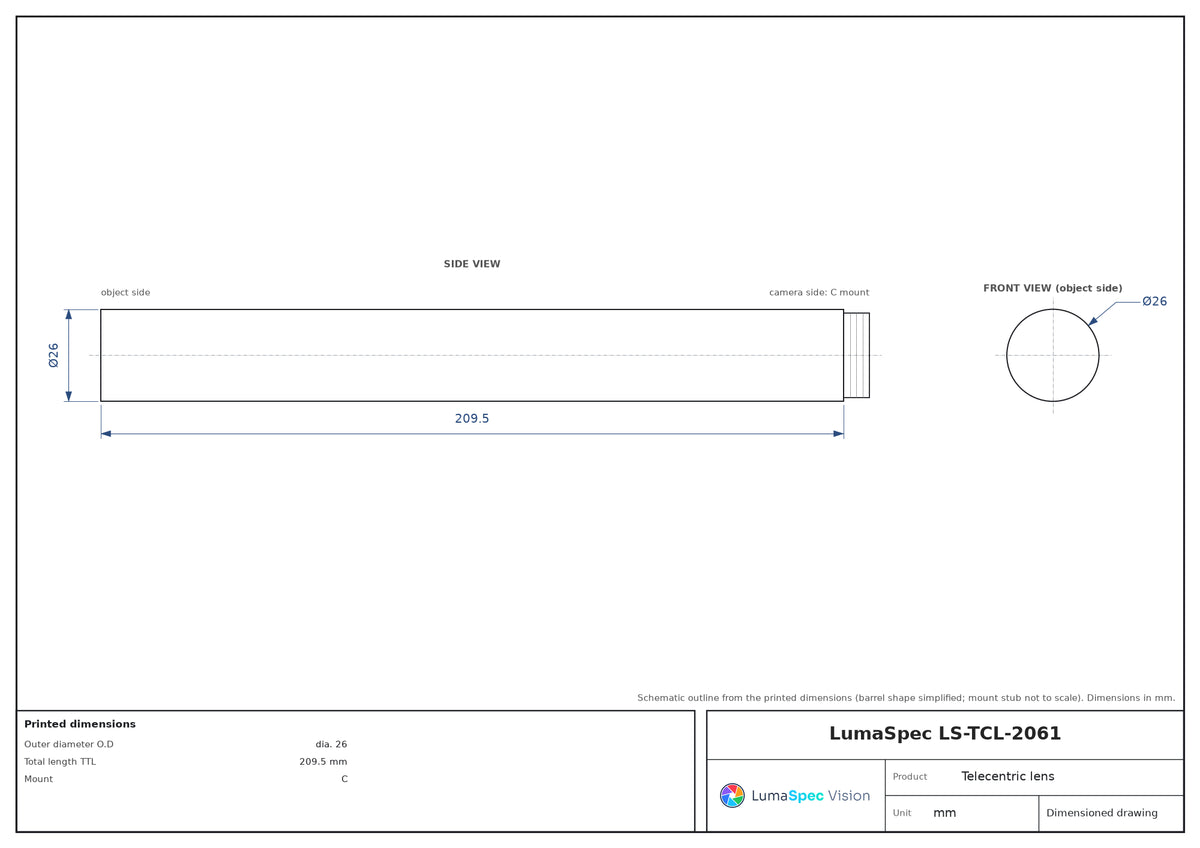

| Total length TTL (mm) | 209.5 |
| Front filter thread | M25x0.5 after removing the front lens retaining ring |
Sensor and imaging
| Max sensor size (dia. mm) | 11.0(2/3") |
|---|
Mechanical
| Mount | C |
|---|---|
| Outer diameter O.D (mm) | dia. 26 |
| Shipping weight (estimated) | 0.54 kg |
Photo shows a representative model of this series; see the specifications for this model.
