Telecentric lenses
0.75x, WD 220 mm, 2/3", C-mount Telecentric Lens (LS-TCL-2082)
Model LS-TCL-2082
- Magnification0.75x
- MountC-mount
- Sensor2/3"
- Working distance220 mm
- Aperture10
$1,139.00
In stock - ships the same business day (4 available, order by 2 PM ET)
0.63 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
0.75x, WD 220 mm, 2/3", C-mount Telecentric Lens. At a glance: magnification 0.75x; working distance 220 mm; max sensor size 11.0 mm (2/3"); object-side resolution 9.0 µm; image-side f/# 10.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-2082 |
|---|
Optics
| Magnification (x) | 0.75 |
|---|---|
| Working distance (mm) | 220 |
| Image-side F/# | 10 |
| Object-side telecentricity (deg max) | 0.2 |
| Image-side distortion (% max) | 0.05 |
| Numerical aperture NA | 0.03746 |
| Object-side resolution (um) | 9.0 |
| Theoretical depth of field (mm) | 1.42 |
| Image-side MTF30 (lp/mm) | 90 |
| Total length TTL (mm) | 140.3 |
Sensor and imaging
| Max sensor size (dia. mm) | 11.0(2/3") |
|---|

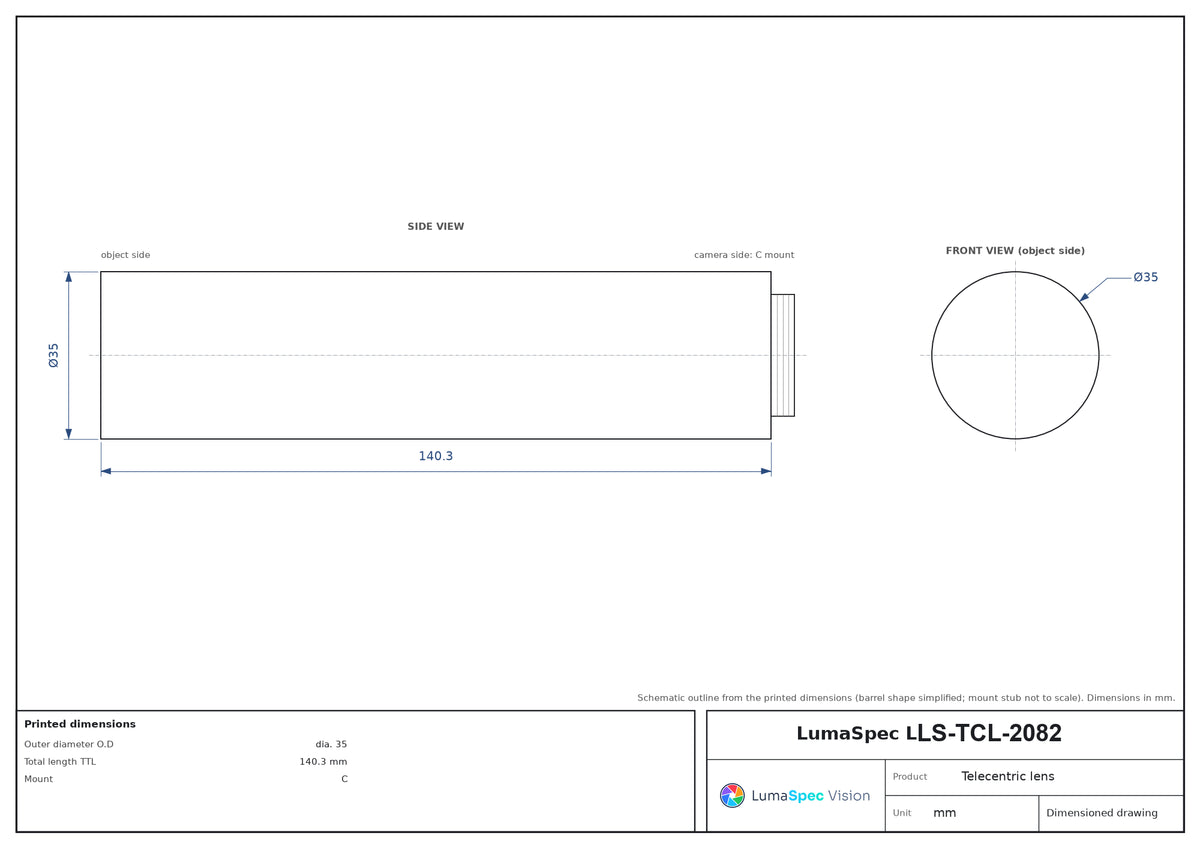

Mechanical
| Mount | C |
|---|---|
| Outer diameter O.D (mm) | dia. 35 |
| Shipping weight (estimated) | 0.63 kg |
Photo shows a representative model of this series; see the specifications for this model.
