Telecentric lenses
6x, WD 110 mm, 2/3", C-mount Telecentric Lens, length 152.7 mm (LS-TCL-2018)
Model LS-TCL-2018
- Magnification6.0x
- MountC-mount
- Sensor2/3"
- Working distance110 mm
- Aperture38.9
$849.00
In stock - ships the same business day (4 available, order by 2 PM ET)
0.47 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
6x, WD 110 mm, 2/3", C-mount Telecentric Lens. At a glance: magnification 6.0x; working distance 110 mm; max sensor size 11.0 mm (2/3"); object-side resolution 4.5 µm; image-side f/# 38.9.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-2018 |
|---|
Optics
| Magnification (x) | 6.0 |
|---|---|
| Working distance (mm) | 110 |
| Image-side F/# | 38.9 |
| Object-side telecentricity (deg max) | <0.1 |
| Image-side distortion (% max) | <0.1 |
| Numerical aperture NA | 0.075 |
| Object-side resolution (um) | 4.5 |
| Theoretical depth of field (mm) | 0.09 |
| Image-side MTF30 (lp/mm) | 23 |
| Total length TTL (mm) | 152.7 |
| Front filter thread | M25x0.5 |
Sensor and imaging
| Max sensor size (dia. mm) | 11.0(2/3") |
|---|

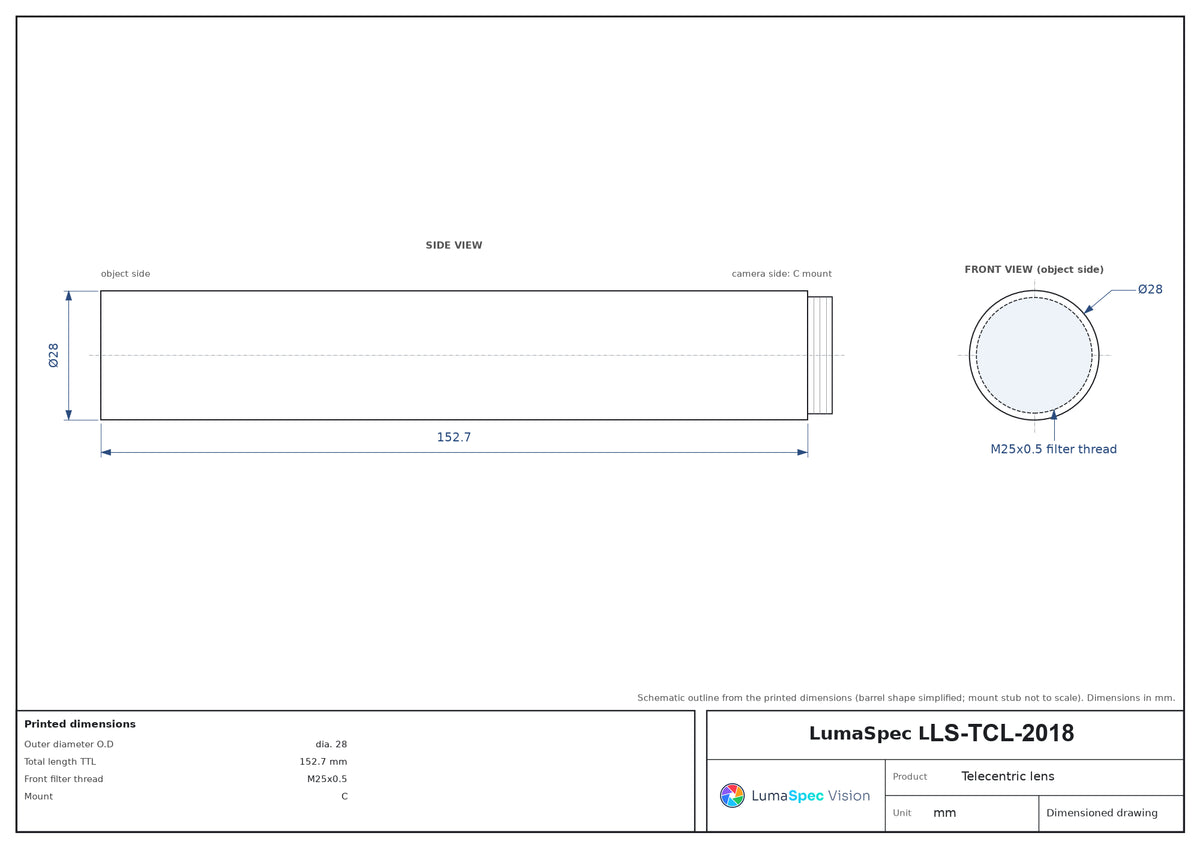

Mechanical
| Mount | C |
|---|---|
| Outer diameter O.D (mm) | dia. 28 |
| Shipping weight (estimated) | 0.47 kg |
Photo shows a representative model of this series; see the specifications for this model.
