Machine vision lenses

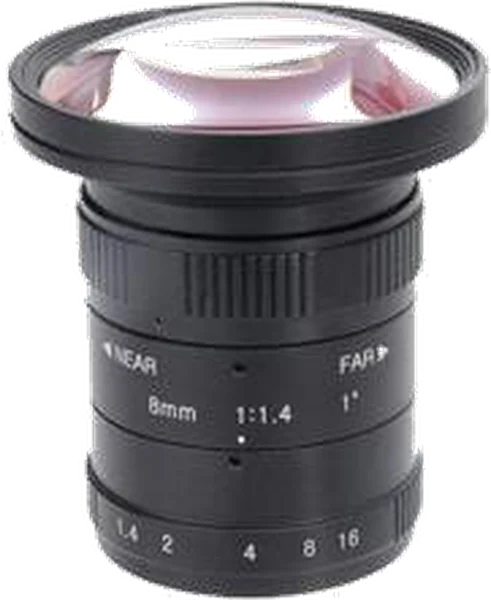

1" machine vision lenses (LS-FFL-S89)
- 40 models
- from $289.00
- Series LS-FFL-S89
The 1" machine vision lenses (LS-FFL-S89) is a range of 40 machine vision lenses from LumaSpec Vision, from $289.00. It comes in 20 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 8 mm, 1", 10 MP, C-mount, 8 mm, 1", 5 MP, C-mount, 8.5 mm, 1", 10 MP, C-mount, 12 mm, 1", 10 MP, C-mount, 12 mm, 1", 5 MP, C-mount, 16 mm, 1", 10 MP, C-mount, 16 mm, 1", 12 MP, C-mount, 16 mm, 1", 5 MP, C-mount, 20 mm, 1", 5 MP, C-mount, 20 mm, 1", 8 MP, C-mount, 25 mm, 1", 10 MP, C-mount, 25 mm, 1", 5 MP, C-mount, 35 mm, 1", 10 MP, C-mount, 35 mm, 1", 5 MP, C-mount, 50 mm, 1", 10 MP, C-mount, 50 mm, 1", 12 MP, C-mount and 4 more
- Type
- Machine vision fixed
- Mount
- C-mount
- Resolution
- 5 MP, 6-10 MP, 12 MP
- Image circle
- 11-16 mm
- Focal length
- 6-12 mm, 12-25 mm, 25-50 mm, 50-100 mm, 100 mm +
- Sensor format
- 1"
Features
- High resolution: 5.0 megapixel cover all 4K & 1080P
- Large format: 1" size covering 1", 3/4, 2/3", 1/1.8", 1/2" camera
- Big aperture: F1.4 big aperture makes imaging far better
- Low distortion: <1.5% low distortion use machine vision ITS
- High resolution: 5 megapixel, covers 4K and 1080P
- Large format: 1" image size, covers 1", 3/4", 2/3", 1/1.8" and 1/2" cameras
- Large F1.4 aperture for better imaging
- Low distortion: 1.8%, for machine vision and ITS
Typical uses
- Automation
- Machine vision
- Medical
- Life science
- ITS
- SMT
All 40 models in the 1" machine vision lenses (LS-FFL-S89)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-FFL-0599 | dia. 57.5 x 63.76 mm | 5.0 Megapixel | 8 mm | F1.4-16 Manual iris | $289.00 | View |
| LS-FFL-0603 | dia. 50 x 64.9 mm | 5.0 Megapixel | 12 mm | F1.4 Manual Iris | $299.00 | View |
| LS-FFL-0604 | dia. 50 x 64.4 mm | 5.0 Megapixel | 12 mm | F1.4 Manual iris | $299.00 | View |
| LS-FFL-0605 | dia. 43 x 57.6 mm | 5.0 Megapixel | 12 mm | F1.6 Manual iris | $299.00 | View |
| LS-FFL-0614 | dia. 48.5 x 56.3 mm | 8.0 MP | 20 mm | F1.6 ~ C Manual iris | $309.00 | View |
| LS-FFL-0615 | dia. 43 x 58.6 mm | 5.0 Megapixel | 20 mm | F1.6 Manual iris | $309.00 | View |
| LS-FFL-0617 | dia. 39 x 39 mm | 5.0 Megapixel | 25 mm | F1.4 Manual iris | $319.00 | View |
| LS-FFL-0618 | dia. 44.8 x 53.3 mm | 5.0 Megapixel | 25 mm | F1.4 Manual iris | $319.00 | View |
| LS-FFL-0620 | dia. 44.9 x 52.31 mm | 5.0 Megapixel | 25 mm | F1.6 Manual iris | $319.00 | View |
| LS-FFL-0608 | dia. 41 x 55.6 mm | 5.0 Megapixel | 16 mm | F1.4 Manual Iris | $339.00 | View |
| LS-FFL-0609 | dia. 50 x 62.2 mm | 5.0 Megapixel | 16 mm | F1.4 Manual iris | $339.00 | View |
| LS-FFL-0611 | dia. 43 x 58.6 mm | 5.0 Megapixel | 16 mm | F1.6 Manual iris | $339.00 | View |
| LS-FFL-0612 | dia. 41.5 x 55.65 mm | 5.0 Megapixel | 16 mm | F2.0-C Manual iris | $339.00 | View |
| LS-FFL-0623 | dia. 52 x 59.5 mm | 5.0 Megapixel | 35 mm | F1.4 Manual iris | $339.00 | View |
| LS-FFL-0625 | dia. 44.3 x 50.8 mm | 5.0 Megapixel | 35 mm | F1.6 Manual iris | $339.00 | View |
| LS-FFL-0626 | dia. 37 x 41 mm | 5.0 Megapixel | 35 mm | F2.0 Manual Iris | $339.00 | View |
| LS-FFL-0629 | dia. 52 x 63.1 mm | 5.0 Megapixel | 50 mm | F1.4 Manual iris | $369.00 | View |
| LS-FFL-0631 | dia. 45 x 60 mm | 5.0 Megapixel | 50 mm | F2.0 Manual Iris | $369.00 | View |
| LS-FFL-0600 | dia. 57.5 x 63.76 mm | 10 Megapixel | 8 mm | F1.4-16 Manual iris | $429.00 | View |
| LS-FFL-0601 | dia. 56.8 x 54.9 mm | 10 Megapixel | 8 mm | F1.8 Manual iris | $429.00 | View |
| LS-FFL-0602 | dia. 80 x 67.1 mm | 10 Megapixel | 8.5 mm | F2.4 Manual iris | $429.00 | View |
| LS-FFL-0606 | dia. 37.7 x 48.9 mm | 10 Megapixel | 12 mm | F2.0 Manual iris | $429.00 | View |
| LS-FFL-0634 | dia. 60 x 94.6 mm | 5.0 Megapixel | 75 mm | F1.8 Manual iris | $429.00 | View |
| LS-FFL-0638 | dia. 46 x 72.9 mm | 10 MP | 16 mm | F1.4 Manual Iris | $439.00 | View |
| LS-FFL-0607 | dia. 51 x 88.49 mm | 12 Megapixel | 16 mm | F1.3 Manual Iris | $439.00 | View |
| LS-FFL-0610 | dia. 40 x 64.4 mm | 10 Megapixel | 16 mm | F1.6 Manual iris | $439.00 | View |
| LS-FFL-0613 | dia. 37 x 45.9 mm | 10 Megapixel | 16 mm | F2.0 Manual iris | $439.00 | View |
| LS-FFL-0616 | dia. 52 x 78.86 mm | 10 MP | 25 mm | F1.2 manual iris | $459.00 | View |
| LS-FFL-0619 | dia. 40 x 42 mm | 10 Megapixel | 25 mm | F1.4 Manual iris | $459.00 | View |
| LS-FFL-0621 | dia. 33.5 x 36.8 mm | 10 Megapixel | 25 mm | F1.8 Manual iris | $459.00 | View |
| LS-FFL-0637 | dia. 42 x 58.5 mm | 8.0 Megapixel | 100 mm | F3.5 Manual Iris | $469.00 | View |
| LS-FFL-0622 | dia. 52 x 85.82 mm | 10 Megapixel | 35 mm | F1.2 Manual Iris | $479.00 | View |
| LS-FFL-0624 | dia. 43 x 59.35 mm | 10 Megapixel | 35 mm | F1.4 Manual iris | $479.00 | View |
| LS-FFL-0627 | dia. 34 x 35.2 mm | 10 Megapixel | 35 mm | F2.0 Manual iris | $479.00 | View |
| LS-FFL-0628 | dia. 57 x 66.58 mm | 12 MP | 50 mm | F1.3 manual iris | $499.00 | View |
| LS-FFL-0630 | dia. 55 x 66.2 mm | 12 Megapixel | 50 mm | F1.4-C Manual iris | $499.00 | View |
| LS-FFL-0632 | dia. 41.4 x 43.1 mm | 10 Megapixel | 50 mm | F2.0 Manual iris | $499.00 | View |
| LS-FFL-0633 | dia. 40 x 49.1 mm | 10 Megapixel | 50 mm | F2.4 Manual iris | $499.00 | View |
| LS-FFL-0635 | dia. 56.4 x 94.1 | 10 MP | 75 mm | F1.8 Manual Iris | $549.00 | View |
| LS-FFL-0636 | dia. 42.7 x 60.35 mm | 10 Megapixel | 75 mm | F2.8 Manual iris | $549.00 | View |
