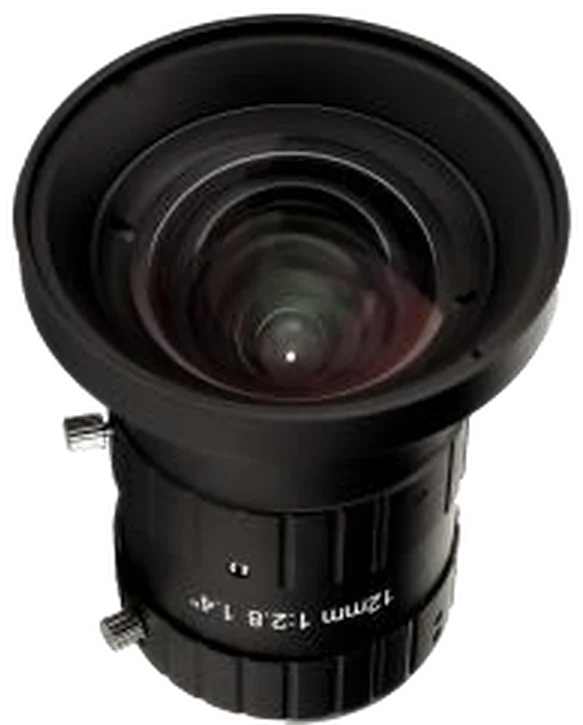

1.4" machine vision lenses (LS-FFL-S86)

Machine vision lenses

1.4" machine vision lenses (LS-FFL-S86)

  • 4 models
  • from $569.00
  • Series LS-FFL-S86

The 1.4" machine vision lenses (LS-FFL-S86) is a range of 4 machine vision lenses from LumaSpec Vision, from $569.00. It comes in 4 sizes or versions. Every model below has its own page with full specifications, drawings and price.

Build a system with this series See all 4 models Series datasheet (PDF)

The series at a glance

Sizes / versions
12 mm, 1.4", 45 MP, C-mount, 16 mm, 1.4", 45 MP, C-mount, 25 mm, 1.4", 45 MP, C-mount, 50 mm, 1.4", 45 MP, C-mount
Type
Machine vision fixed
Mount
C-mount
Resolution
29 MP +
Image circle
16-22 mm, 22-30 mm
Focal length
12-25 mm, 25-50 mm, 50-100 mm
Sensor format
4/3" - APS-C

Features

  • 45 megapixel resolution, covering 8K and 4K
  • Large 1.4" format, covers 4/3", 1.1", 2/3" and 1/1.8" cameras
  • 0.5% low distortion for machine vision
  • Designed for 2.3 um pixel sensors (Sony IMX492)

Typical uses

  • Automation
  • Machine vision
  • Medical
  • Life science
  • Electronics
  • SMT / AOI

All 4 models in the 1.4" machine vision lenses (LS-FFL-S86)

Link
LS-FFL-0579dia. 57 x 68.36 mm12 mmF2.8-16 Manual Iris610 x 502 x 337 mm$569.00View
LS-FFL-058016 mm, 1.4", 45 MP, C-mount16 mmF2.8$579.00View
LS-FFL-0581dia. 45.6 x 73.69 mm25 mmF2.8-16 Manual Iris284 x 235 x 160 mm$589.00View
LS-FFL-0582dia. 39.2 x 61.72 mm50 mmF2.8-16 Manual Iris165.3 x 137 x 93 mm$639.00View
