Machine vision lenses

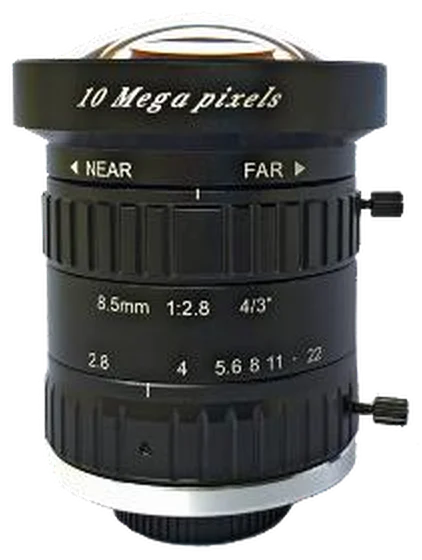

4/3" machine vision lenses (LS-FFL-S93)
- 12 models
- from $429.00
- Series LS-FFL-S93
The 4/3" machine vision lenses (LS-FFL-S93) is a range of 12 machine vision lenses from LumaSpec Vision, from $429.00. It comes in 12 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 8.5 mm, 4/3", 10 MP, C-mount, 12 mm, 4/3", 10 MP, C-mount, 12 mm, 4/3", 20 MP, C-mount, 16 mm, 4/3", 10 MP, C-mount, 16 mm, 4/3", 20 MP, C-mount, 25 mm, 4/3", 10 MP, C-mount, 25 mm, 4/3", 20 MP, C-mount, 35 mm, 4/3", 10 MP, C-mount, 35 mm, 4/3", 20 MP, C-mount, 50 mm, 4/3", 10 MP, C-mount, 50 mm, 4/3", 20 MP, C-mount, 85 mm, 4/3", 10 MP, C-mount
- Type
- Machine vision fixed
- Mount
- C-mount
- Resolution
- 6-10 MP, 16-25 MP
- Image circle
- Up to 8 mm, 16-22 mm
- Focal length
- 6-12 mm, 12-25 mm, 25-50 mm, 50-100 mm
- Sensor format
- 4/3" - APS-C
Features
- High resolution: 10 megapixel covering all 4K & 1080P
- Large format: 4/3" size covering 1", 3/4, 2/3", 1/1.8", 1/2" camera
- Low distortion: -4.66% low distortion
- Small size: Small size design makes it various application
- Low distortion: -2.4% low distortion
- Low distortion: -0.66% low distortion.
- Low distortion: -0.56% low distortion.
- Low distortion: -0.14% low distortion.
Typical uses
- Automation
- machine vision
- medical
- life science
- SMT
- AOI
All 12 models in the 4/3" machine vision lenses (LS-FFL-S93)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-FFL-0702 | dia. 58.61 x 72.08 mm | 10 MP | 8.5 mm | F2.8 manual iris | $429.00 | View |
| LS-FFL-0703 | dia. 80 x 83.7 mm | 10 MP | 12 mm | F2.0 manual iris | $429.00 | View |
| LS-FFL-0707 | dia. 51.8 x 86.7 mm | 10 MP | 25 mm | F2.0 manual iris | $459.00 | View |
| LS-FFL-0709 | dia. 42.6 x 65.5 mm | 10 MP | 35 mm | F2.0 manual iris | $479.00 | View |
| LS-FFL-0711 | dia. 42.6 x 67.3 mm | 10 MP | 50 mm | F2.0 manual iris | $499.00 | View |
| LS-FFL-0705 | dia. 60.2 x 89.9 mm | 10 MP | 16 mm | F2.0 manual iris | $519.00 | View |
| LS-FFL-0701 | dia. 80 x 111.7 mm | 10 Megapixel | 85 mm | F2.0 Manual iris | $569.00 | View |
| LS-FFL-0704 | dia. 48 x 76.27 mm | 20 Megapixel | 12 mm | F2.8 Manual Iris | $669.00 | View |
| LS-FFL-0706 | dia. 38 x 78.3 mm | 20 Megapixel | 16 mm | F2.8 Manual Iris | $679.00 | View |
| LS-FFL-0708 | dia. 37 x 78 mm | 20 Megapixel | 25 mm | F2.8 Manual Iris | $689.00 | View |
| LS-FFL-0710 | dia. 38 x 47.6 mm | 20 Megapixel | 35 mm | F2.8 Manual Iris | $709.00 | View |
| LS-FFL-0712 | dia. 38 x 53.9 mm | 20 Megapixel | 50 mm | F2.8 Manual Iris | $739.00 | View |
