Machine vision lenses
35 mm, 4/3", 20 MP, C-mount Machine Vision Lens (LS-FFL-0710)
Model LS-FFL-0710
- Focal length35 mm
- MountC-mount
- Sensor4/3"
- ApertureF2.8 Manual Iris
- Resolution20 Megapixel
$709.00
Ships in 2-3 weeks
0.56 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
35 mm, 4/3", 20 MP, C-mount Machine Vision Lens. High resolution: 20 megapixel covering all 4K & 1080P. Large format: 4/3" size covering 1", 3/4", 2/3", 1/1.8", 1/2" camera. Low distortion: <0.04% low distortion. At a glance: focal length 35 mm; format 4/3"; resolution 20 Megapixel; aperture F2.8 Manual Iris; mount C.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0710 |
|---|---|
| Format | 4/3" |
| Angle of view (4/3", DxHxV) | 35 x 28 x 21 deg |
| Angle of view (1", DxHxV) | 26 x 21 x 15.5 deg |
| Angle of view (2/3", DxHxV) | 18 x 14.3 x 11 deg |
| Flange back | 17.526 mm in air |
Optics
| Focal length | 35 mm |
|---|---|
| Back focal length | 22.9 mm |
| Aperture | F2.8 Manual Iris |
| M.O.D. | 0.2 m |
| Distortion | <0.04% |
| Filter thread | M35.5 x 0.5 |
| Iris range | F2.8 to F22 |
| Distortion (TV) by format | <0.04% (4/3"), <0.02% (1"), <0.01% (2/3") |
Sensor and imaging
| Resolution | 20 Megapixel |
|---|
Environment and compliance
| Operating temperature | -10 to +50 °C |
|---|---|
| Storage temperature | -20 to +60 °C |

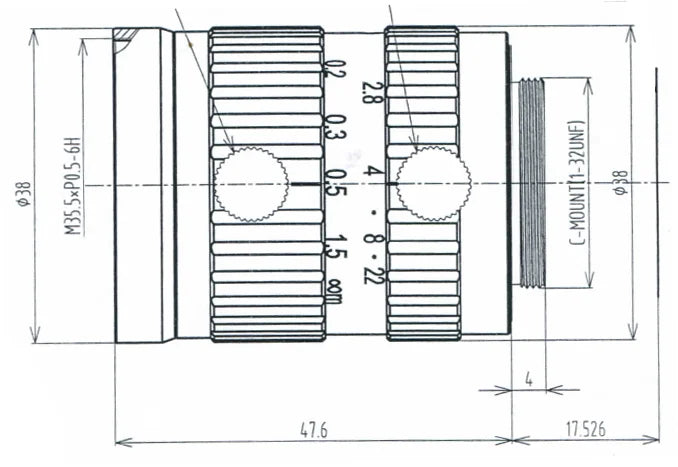

Mechanical
| Size | dia. 38 x 47.6 mm |
|---|---|
| Mount | C |
| Weight | 330 g |
| Front / rear effective diameter | dia. 23 mm / dia. 19.1 mm |
| Optical total length | 64.1 mm |
| Shipping weight (estimated) | 0.56 kg |
