Machine vision lenses
25 mm, 4/3", 20 MP, C-mount Machine Vision Lens (LS-FFL-0708)
Model LS-FFL-0708
- Focal length25 mm
- MountC-mount
- Sensor4/3"
- ApertureF2.8 Manual Iris
- Resolution20 Megapixel
$689.00
Ships in 2-3 weeks
0.56 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
25 mm, 4/3", 20 MP, C-mount Machine Vision Lens. High resolution: 20 megapixel covering all 4K & 1080P. Large format: 4/3" size covering 1", 3/4, 2/3", 1/1.8", 1/2" camera. Low distortion: <0.3% low distortion. At a glance: focal length 25 mm; format 4/3"; resolution 20 Megapixel; aperture F2.8 Manual Iris; mount C.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0708 |
|---|---|
| Format | 4/3" |
| Angle of view (4/3", DxHxV) | 46 x 38 x 29 deg |
| Angle of view (1", DxHxV) | 34.2 x 28 x 21 deg |
| Angle of view (2/3", DxHxV) | 24 x 19.2 x 15 deg |
| Flange back | 17.526 mm in air |
Optics
| Focal length | 25 mm |
|---|---|
| Back focal length | 29.6 mm |
| Aperture | F2.8 Manual Iris |
| M.O.D. | 0.1 m |
| Distortion | <0.3% |
| Filter thread | M35.5 x 0.5 |
| Iris range | F2.8 to F22 |
| Distortion (TV) by format | <0.3% (4/3"), <0.1% (1"), <0.03% (2/3") |
Sensor and imaging
| Resolution | 20 Megapixel |
|---|
Environment and compliance
| Operating temperature | -10 to +50 °C |
|---|---|
| Storage temperature | -20 to +60 °C |

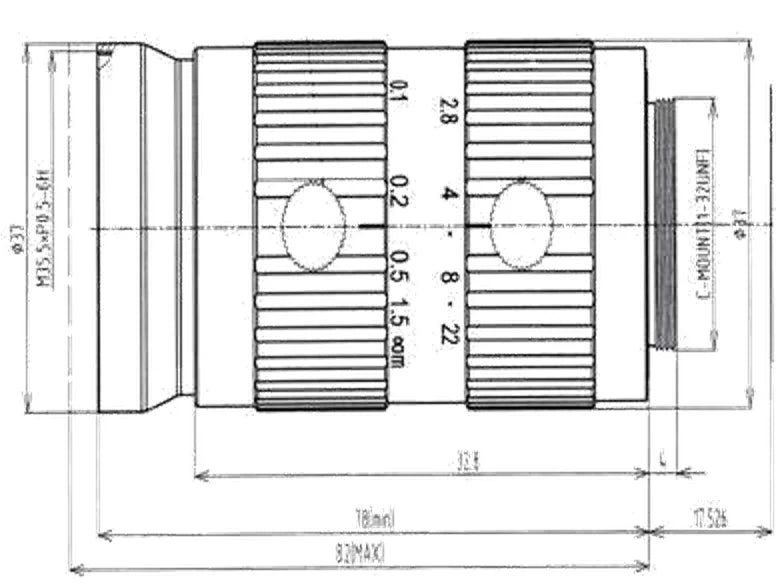

Mechanical
| Size | dia. 37 x 78 mm |
|---|---|
| Mount | C |
| Weight | 330 g |
| Front / rear effective diameter | dia. 28.4 mm / dia. 19.2 mm |
| Optical total length | 85.5 mm |
| Shipping weight (estimated) | 0.56 kg |
Other models in the 4/3" machine vision lenses (LS-FFL-S93) series
See all 12 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-FFL-0702 | 8.5 mm, 4/3", 10 MP, C-mount | $429.00 | Ships in 2-3 weeks | View |
| LS-FFL-0703 | 12 mm, 4/3", 10 MP, C-mount | $429.00 | Ships in 2-3 weeks | View |
| LS-FFL-0707 | 25 mm, 4/3", 10 MP, C-mount | $459.00 | Ships in 2-3 weeks | View |
| LS-FFL-0709 | 35 mm, 4/3", 10 MP, C-mount | $479.00 | Ships in 2-3 weeks | View |
| LS-FFL-0711 | 50 mm, 4/3", 10 MP, C-mount | $499.00 | Ships in 2-3 weeks | View |
| LS-FFL-0705 | 16 mm, 4/3", 10 MP, C-mount | $519.00 | Ships in 2-3 weeks | View |
| LS-FFL-0701 | 85 mm, 4/3", 10 MP, C-mount | $569.00 | Ships in 2-3 weeks | View |
| LS-FFL-0704 | 12 mm, 4/3", 20 MP, C-mount | $669.00 | Ships in 2-3 weeks | View |
| LS-FFL-0706 | 16 mm, 4/3", 20 MP, C-mount | $679.00 | Ships in 2-3 weeks | View |
| LS-FFL-0710 | 35 mm, 4/3", 20 MP, C-mount | $709.00 | Ships in 2-3 weeks | View |
| LS-FFL-0712 | 50 mm, 4/3", 20 MP, C-mount | $739.00 | Ships in 2-3 weeks | View |
