Machine vision lenses

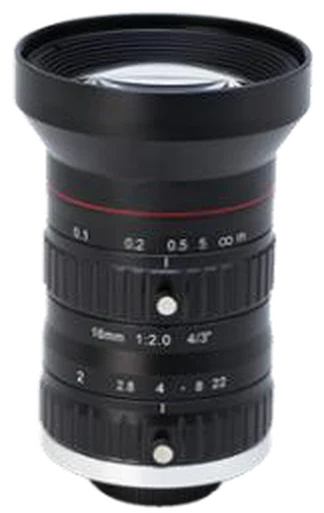

16 mm, 4/3", 10 MP, C-mount Machine Vision Lens (LS-FFL-0705)
Model LS-FFL-0705
- Focal length16 mm
- MountC-mount
- Sensor4/3"
- ApertureF2.0 manual iris
- Resolution10 MP
$519.00
Ships in 2-3 weeks
0.57 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
16 mm, 4/3", 10 MP, C-mount Machine Vision Lens. 16 mm 4/3" 10 MP C-mount machine vision lens with -2.8% distortion for automation, SMT, AOI, semiconductor, colour sorting and measurement; covers 4/3" down to 1/2" sensors. At a glance: focal length 16 mm; format 4/3"; resolution 10 MP; aperture F2.0 manual iris; mount C.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0705 |
|---|---|
| Format | 4/3" |
| Angle of view (4/3", DxHxV) | 73 x 61 x 47 deg |
| Angle of view (1", DxHxV) | 54 x 44 x 34 deg |
Optics
| Focal length | 16 mm |
|---|---|
| Aperture | F2.0 manual iris |
| Back focal length | 21 mm |
| M.O.D. | 0.1 m |
| Distortion | -2.8% |
| Filter thread | M58 x 0.75 |
Sensor and imaging
| Resolution | 10 MP |
|---|

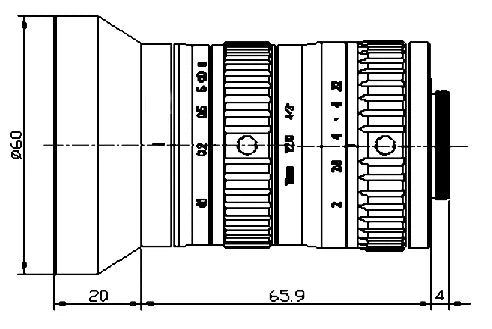

Mechanical
| Size | dia. 60.2 x 89.9 mm |
|---|---|
| Mount | C |
| Weight | 339 g |
| Optical total length | 99.9 mm |
| Shipping weight (estimated) | 0.57 kg |
Other models in the 4/3" machine vision lenses (LS-FFL-S93) series
See all 12 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-FFL-0702 | 8.5 mm, 4/3", 10 MP, C-mount | $429.00 | Ships in 2-3 weeks | View |
| LS-FFL-0703 | 12 mm, 4/3", 10 MP, C-mount | $429.00 | Ships in 2-3 weeks | View |
| LS-FFL-0707 | 25 mm, 4/3", 10 MP, C-mount | $459.00 | Ships in 2-3 weeks | View |
| LS-FFL-0709 | 35 mm, 4/3", 10 MP, C-mount | $479.00 | Ships in 2-3 weeks | View |
| LS-FFL-0711 | 50 mm, 4/3", 10 MP, C-mount | $499.00 | Ships in 2-3 weeks | View |
| LS-FFL-0701 | 85 mm, 4/3", 10 MP, C-mount | $569.00 | Ships in 2-3 weeks | View |
| LS-FFL-0704 | 12 mm, 4/3", 20 MP, C-mount | $669.00 | Ships in 2-3 weeks | View |
| LS-FFL-0706 | 16 mm, 4/3", 20 MP, C-mount | $679.00 | Ships in 2-3 weeks | View |
| LS-FFL-0708 | 25 mm, 4/3", 20 MP, C-mount | $689.00 | Ships in 2-3 weeks | View |
| LS-FFL-0710 | 35 mm, 4/3", 20 MP, C-mount | $709.00 | Ships in 2-3 weeks | View |
| LS-FFL-0712 | 50 mm, 4/3", 20 MP, C-mount | $739.00 | Ships in 2-3 weeks | View |
