Machine vision lenses

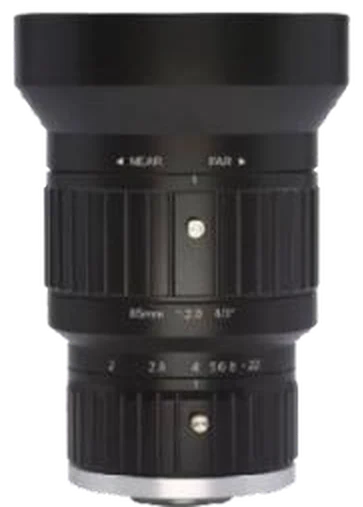

85 mm, 4/3", 10 MP, C-mount Machine Vision Lens (LS-FFL-0701)
Model LS-FFL-0701
- Focal length85 mm
- Magnification-0.075x
- MountC-mount
- Sensor4/3"
- ApertureF2.0 Manual iris
- Resolution10 Megapixel
$569.00
Ships in 2-3 weeks
1.06 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
85 mm, 4/3", 10 MP, C-mount Machine Vision Lens. An 85 mm, 4/3" format, 10 megapixel low-distortion (0.04%) lens for intelligent traffic, machine vision and surveillance in industrial automation. At a glance: magnification -0.075x; focal length 85 mm; format 4/3" (dia. 23 mm); resolution 10 Megapixel; aperture F2.0 Manual iris.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0701 |
|---|---|
| Format | 4/3" (dia. 23 mm) |
| Angle of view (4/3", DxHxV) | 15.4 x 12.1 x 9.3 deg (field 310 x 242 x 186 mm) |
| Angle of view (1", DxHxV) | 10.8 x 8.6 x 6.5 deg (field 215 x 172 x 129 mm) |
| Angle of view (1/2", DxHxV) | 5.4 x 4.3 x 3.3 deg (field 108 x 86 x 65 mm) |
| B.F.L. | 24.5 mm |
| T.T.L. | 113.9 mm |
Optics
| Focal length | 85 mm |
|---|---|
| Aperture | F2.0 Manual iris |
| M.O.D. | 1.2 m |
| Distortion | 0.04% @y=11.5 mm |
| Filter thread | M77 x 0.75 |
| Magnification | -0.075x |
Sensor and imaging
| Resolution | 10 Megapixel |
|---|
Mechanical

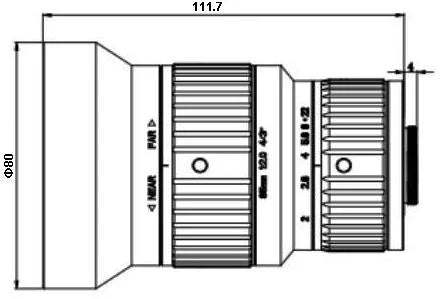

| Size | dia. 80 x 111.7 mm |
|---|---|
| Mount | C |
| Weight | 687 g |
| Optical total length | 113.9 mm |
| Shipping weight (estimated) | 1.06 kg |
Other models in the 4/3" machine vision lenses (LS-FFL-S93) series
See all 12 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-FFL-0702 | 8.5 mm, 4/3", 10 MP, C-mount | $429.00 | Ships in 2-3 weeks | View |
| LS-FFL-0703 | 12 mm, 4/3", 10 MP, C-mount | $429.00 | Ships in 2-3 weeks | View |
| LS-FFL-0707 | 25 mm, 4/3", 10 MP, C-mount | $459.00 | Ships in 2-3 weeks | View |
| LS-FFL-0709 | 35 mm, 4/3", 10 MP, C-mount | $479.00 | Ships in 2-3 weeks | View |
| LS-FFL-0711 | 50 mm, 4/3", 10 MP, C-mount | $499.00 | Ships in 2-3 weeks | View |
| LS-FFL-0705 | 16 mm, 4/3", 10 MP, C-mount | $519.00 | Ships in 2-3 weeks | View |
| LS-FFL-0704 | 12 mm, 4/3", 20 MP, C-mount | $669.00 | Ships in 2-3 weeks | View |
| LS-FFL-0706 | 16 mm, 4/3", 20 MP, C-mount | $679.00 | Ships in 2-3 weeks | View |
| LS-FFL-0708 | 25 mm, 4/3", 20 MP, C-mount | $689.00 | Ships in 2-3 weeks | View |
| LS-FFL-0710 | 35 mm, 4/3", 20 MP, C-mount | $709.00 | Ships in 2-3 weeks | View |
| LS-FFL-0712 | 50 mm, 4/3", 20 MP, C-mount | $739.00 | Ships in 2-3 weeks | View |
