Machine vision lenses
50 mm, 4/3", 20 MP, C-mount Machine Vision Lens (LS-FFL-0712)
Model LS-FFL-0712
- Focal length50 mm
- MountC-mount
- Sensor4/3"
- ApertureF2.8 Manual Iris
- Resolution20 Megapixel
$739.00
Ships in 2-3 weeks
0.43 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
50 mm, 4/3", 20 MP, C-mount Machine Vision Lens. High resolution: 20 megapixel cover all 8K & 4K. Large format: 4/3" size covering 1.1", 3/4, 2/3", 1/1.8", 1/2" camera. Low distortion: <0.1% low distortion use machine vision ITS. At a glance: focal length 50 mm; format 4/3"; resolution 20 Megapixel; aperture F2.8 Manual Iris; mount C.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0712 |
|---|---|
| Format | 4/3" |
| Angle of view (4/3", DxHxV) | 25 x 20 x 15 deg |
| Angle of view (1", DxHxV) | 18.2 x 15 x 11 deg |
| Angle of view (2/3", DxHxV) | 13 x 10.1 x 7.5 deg |
| Flange back | 17.526 mm in air |
Optics
| Focal length | 50 mm |
|---|---|
| Back focal length | 21.1 mm |
| Aperture | F2.8 Manual Iris |
| M.O.D. | 0.3 m |
| Distortion | <0.1% |
| Filter thread | M35.5 x P0.5 |
| Iris range | F2.8 to F22 |
| Distortion (TV) by format | <0.1% (4/3"), <0.04% (1"), <0.02% (2/3") |
Sensor and imaging
| Resolution | 20 Megapixel |
|---|
Environment and compliance
| Operating temperature | -10 to +50 °C |
|---|---|
| Storage temperature | -20 to +60 °C |
Mechanical

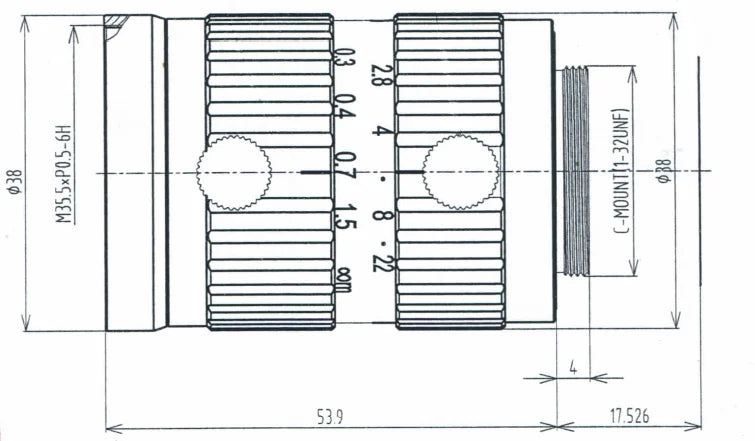

| Size | dia. 38 x 53.9 mm |
|---|---|
| Mount | C |
| Weight | 235 g |
| Front / rear effective diameter | dia. 24 mm / dia. 21.7 mm |
| Optical total length | 71.4 mm |
| Shipping weight (estimated) | 0.43 kg |
Other models in the 4/3" machine vision lenses (LS-FFL-S93) series
See all 12 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-FFL-0702 | 8.5 mm, 4/3", 10 MP, C-mount | $429.00 | Ships in 2-3 weeks | View |
| LS-FFL-0703 | 12 mm, 4/3", 10 MP, C-mount | $429.00 | Ships in 2-3 weeks | View |
| LS-FFL-0707 | 25 mm, 4/3", 10 MP, C-mount | $459.00 | Ships in 2-3 weeks | View |
| LS-FFL-0709 | 35 mm, 4/3", 10 MP, C-mount | $479.00 | Ships in 2-3 weeks | View |
| LS-FFL-0711 | 50 mm, 4/3", 10 MP, C-mount | $499.00 | Ships in 2-3 weeks | View |
| LS-FFL-0705 | 16 mm, 4/3", 10 MP, C-mount | $519.00 | Ships in 2-3 weeks | View |
| LS-FFL-0701 | 85 mm, 4/3", 10 MP, C-mount | $569.00 | Ships in 2-3 weeks | View |
| LS-FFL-0704 | 12 mm, 4/3", 20 MP, C-mount | $669.00 | Ships in 2-3 weeks | View |
| LS-FFL-0706 | 16 mm, 4/3", 20 MP, C-mount | $679.00 | Ships in 2-3 weeks | View |
| LS-FFL-0708 | 25 mm, 4/3", 20 MP, C-mount | $689.00 | Ships in 2-3 weeks | View |
| LS-FFL-0710 | 35 mm, 4/3", 20 MP, C-mount | $709.00 | Ships in 2-3 weeks | View |
