Machine vision lenses

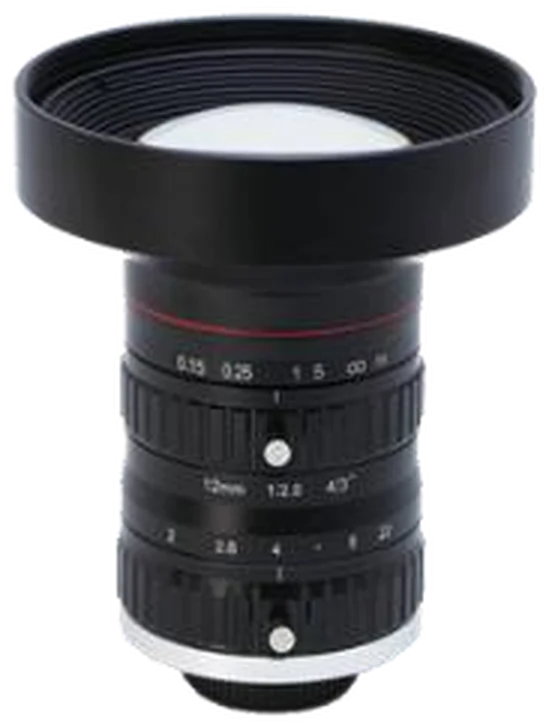

12 mm, 4/3", 10 MP, C-mount Machine Vision Lens (LS-FFL-0703)
Model LS-FFL-0703
- Focal length12 mm
- MountC-mount
- Sensor4/3"
- ApertureF2.0 manual iris
- Resolution10 MP
$429.00
Ships in 2-3 weeks
0.73 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
12 mm, 4/3", 10 MP, C-mount Machine Vision Lens. 12 mm 4/3" 10 MP C-mount machine vision lens with -2.4% distortion for automation, SMT, AOI, semiconductor, colour sorting and measurement; covers 4/3" down to 1/2" sensors. At a glance: focal length 12 mm; format 4/3" (dia. 23); resolution 10 MP; aperture F2.0 manual iris; mount C.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0703 |
|---|---|
| Format | 4/3" (dia. 23) |
| Angle of view (4/3", DxHxV) | 89 x 75.5 x 61 deg |
| Angle of view (1", DxHxV) | 69 x 57 x 44 deg |
Optics
| Focal length | 12 mm |
|---|---|
| Aperture | F2.0 manual iris |
| Back focal length | 18.93 mm |
| M.O.D. | 0.15 m |
| Distortion | -2.4% |
| Filter thread | M77 x 0.75 |
Sensor and imaging
| Resolution | 10 MP |
|---|

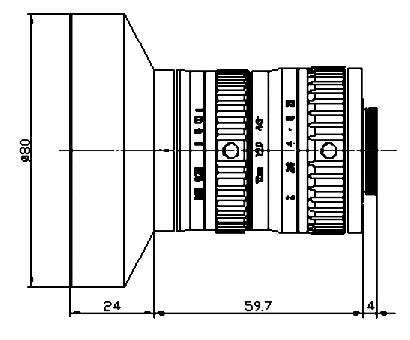

Mechanical
| Size | dia. 80 x 83.7 mm |
|---|---|
| Mount | C |
| Weight | 450 g |
| Optical total length | 95.3 mm |
| Shipping weight (estimated) | 0.73 kg |
