16 mm, 4/3", 20 MP, C-mount Machine Vision Lens (LS-FFL-0706)
  • 16 mm, 4/3", 20 MP, C-mount Machine Vision Lens (LS-FFL-0706)

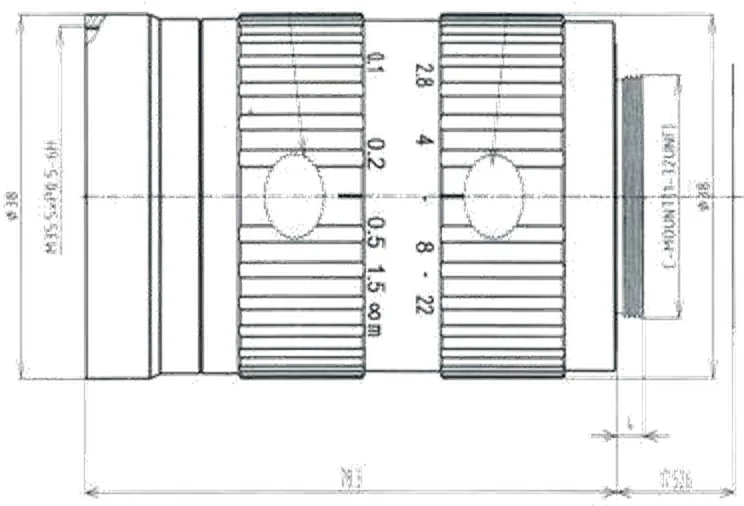

  • LS-FFL-0706 dimensions (mm)

Machine vision lenses

16 mm, 4/3", 20 MP, C-mount Machine Vision Lens (LS-FFL-0706)

Model LS-FFL-0706

  • Focal length16 mm
  • MountC-mount
  • Sensor4/3"
  • ApertureF2.8 Manual Iris
  • Resolution20 Megapixel
$679.00

Ships in 2-3 weeks

0.56 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

16 mm, 4/3", 20 MP, C-mount Machine Vision Lens (LS-FFL-0706)LS-FFL-0706

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

16 mm, 4/3", 20 MP, C-mount Machine Vision Lens. High resolution: 20 megapixel covering all 4K & 1080P. Large format: 4/3" size covering 1", 3/4, 2/3", 1/1.8", 1/2" camera. Low distortion: <1% low distortion. At a glance: focal length 16 mm; format 4/3"; resolution 20 Megapixel; aperture F2.8 Manual Iris; mount C.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-FFL-0706
Format4/3"
Angle of view (4/3", DxHxV)69 x 58 x 45 deg
Angle of view (1", DxHxV)53.1 x 44 x 33.4 deg
Angle of view (2/3", DxHxV)38 x 31 x 23.3 deg
Flange back17.526 mm in air

Optics

Focal length16 mm
Back focal length22.4 mm
ApertureF2.8 Manual Iris
M.O.D.0.1 m
Distortion<1%
Filter threadM35.5 x 0.5
Iris rangeF2.8 to F22
Distortion (TV) by format<1.0% (4/3"), <0.5% (1"), <0.3% (2/3")

Sensor and imaging

Resolution20 Megapixel

Environment and compliance

Operating temperature-10 to +50 °C
Storage temperature-20 to +60 °C

Mechanical

Sizedia. 38 x 78.3 mm
MountC
Weight330 g
Front / rear effective diameterdia. 26.7 mm / dia. 19.2 mm
Optical total length93.8 mm
Shipping weight (estimated)0.56 kg
