12 mm, 4/3", 20 MP, C-mount Machine Vision Lens (LS-FFL-0704)
  • 12 mm, 4/3", 20 MP, C-mount Machine Vision Lens (LS-FFL-0704)

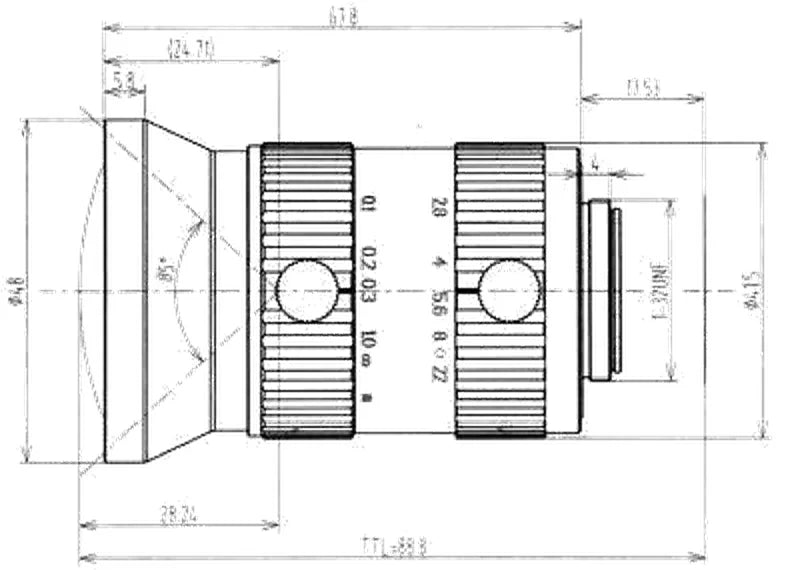

  • LS-FFL-0704 dimensions (mm)

Machine vision lenses

12 mm, 4/3", 20 MP, C-mount Machine Vision Lens (LS-FFL-0704)

Model LS-FFL-0704

  • Focal length12 mm
  • MountC-mount
  • Sensor4/3"
  • ApertureF2.8 Manual Iris
  • Resolution20 Megapixel
$669.00

Ships in 2-3 weeks

0.56 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

12 mm, 4/3", 20 MP, C-mount Machine Vision Lens (LS-FFL-0704)LS-FFL-0704

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

12 mm, 4/3", 20 MP, C-mount Machine Vision Lens. High resolution: 20 megapixel covering all 4K & 1080P. Large format: 4/3" size covering 1", 3/4, 2/3", 1/1.8", 1/2" camera. Low distortion: <2% low distortion. At a glance: focal length 12 mm; format 4/3"; resolution 20 Megapixel; aperture F2.8 Manual Iris; mount C.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-FFL-0704
Format4/3"
Angle of view (4/3", DxHxV)83.4 x 71 x 56.3 deg
Angle of view (1", DxHxV)66 x 55 x 42 deg
Angle of view (2/3", DxHxV)48 x 39 x 30 deg
Flange back17.526 mm in air

Optics

Focal length12 mm
Back focal length10.6 mm
ApertureF2.8 Manual Iris
M.O.D.0.1 m
Distortion<2%
Iris rangeF2.8 to F22
Distortion (TV) by format<2% (4/3"), <1.5% (1"), <1% (2/3")

Sensor and imaging

Resolution20 Megapixel

Environment and compliance

Operating temperature-10 to +50 °C
Storage temperature-20 to +60 °C

Mechanical

Sizedia. 48 x 76.27 mm
MountC
Weight330 g
Front / rear effective diameterdia. 42.9 mm / dia. 20.5 mm
Optical total length88.8 mm
Shipping weight (estimated)0.56 kg

Other models in the 4/3" machine vision lenses (LS-FFL-S93) series

See all 12 models
ModelSize / key dataPriceAvailabilityLink
LS-FFL-0702 8.5 mm, 4/3", 10 MP, C-mount $429.00 Ships in 2-3 weeks View
LS-FFL-0703 12 mm, 4/3", 10 MP, C-mount $429.00 Ships in 2-3 weeks View
LS-FFL-0707 25 mm, 4/3", 10 MP, C-mount $459.00 Ships in 2-3 weeks View
LS-FFL-0709 35 mm, 4/3", 10 MP, C-mount $479.00 Ships in 2-3 weeks View
LS-FFL-0711 50 mm, 4/3", 10 MP, C-mount $499.00 Ships in 2-3 weeks View
LS-FFL-0705 16 mm, 4/3", 10 MP, C-mount $519.00 Ships in 2-3 weeks View
LS-FFL-0701 85 mm, 4/3", 10 MP, C-mount $569.00 Ships in 2-3 weeks View
LS-FFL-0706 16 mm, 4/3", 20 MP, C-mount $679.00 Ships in 2-3 weeks View
LS-FFL-0708 25 mm, 4/3", 20 MP, C-mount $689.00 Ships in 2-3 weeks View
LS-FFL-0710 35 mm, 4/3", 20 MP, C-mount $709.00 Ships in 2-3 weeks View
LS-FFL-0712 50 mm, 4/3", 20 MP, C-mount $739.00 Ships in 2-3 weeks View
