Machine vision lenses

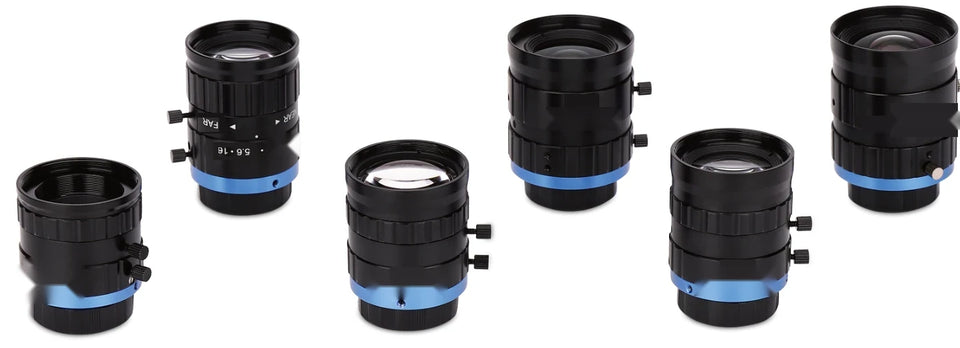

2/3" high resolution 5 MP prime lens (LS-FFL-S75)
- 7 models
- from $169.00
- Series LS-FFL-S75
The 2/3" high resolution 5 MP prime lens (LS-FFL-S75) is a range of 7 machine vision lenses from LumaSpec Vision, from $169.00. It comes in 6 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 8 mm, 2/3", C-mount, 12 mm, 2/3", C-mount, 16 mm, 2/3", C-mount, 25 mm, 2/3", C-mount, 35 mm, 2/3", C-mount, 50 mm, 2/3", C-mount
- Mount
- C-mount
- Resolution
- 5 MP
- Image circle
- 8-11 mm
- Focal length
- 6-12 mm, 12-25 mm, 25-50 mm, 50-100 mm
- Sensor format
- 2/3"
Features
- 5MP high resolution
- Low distortion
- Large amount of light to get in
- Lenticule design
- Short working distance range design
- Compact structure
- Extensive use in location and inspection industry
- High cost-effective
Typical uses
- Automatic optical inspection in electronic industry
- Semiconductor package
- Code reading and recognition
- Printing inspection
- Location system
- AOI inspection
All 7 models in the 2/3" high resolution 5 MP prime lens (LS-FFL-S75)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-FFL-0402 | 8 mm, 2/3", C-mount | 8 | 100-1500 | 1.6-16 | $169.00 | View |
| LS-FFL-0401 | 8 mm, 2/3", C-mount | 8 | 100-1500 | 1.4-16 | $169.00 | View |
| LS-FFL-0403 | 12 mm, 2/3", C-mount | 12 | 100-1500 | 1.6-16 | $179.00 | View |
| LS-FFL-0405 | 25 mm, 2/3", C-mount | 25 | 100-1500 | 1.6-16 | $199.00 | View |
| LS-FFL-0404 | 16 mm, 2/3", C-mount | 16 | 100-1500 | 1.6-16 | $209.00 | View |
| LS-FFL-0406 | 35 mm, 2/3", C-mount | 35 | 150-1500 | 1.6-16 | $219.00 | View |
| LS-FFL-0407 | 50 mm, 2/3", C-mount | 50 | 300-None | 2-16 | $249.00 | View |
