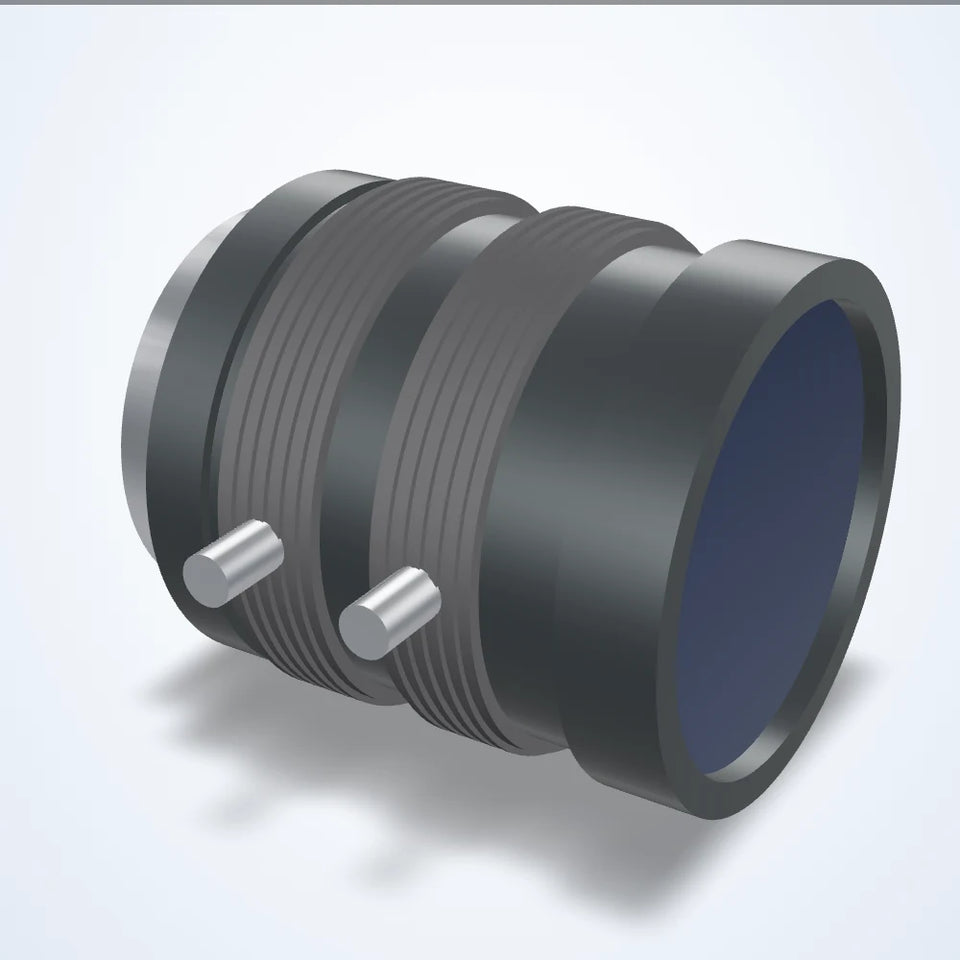

Lens series, 1/1.7", C-mount

Machine vision lenses

Lens series, 1/1.7", C-mount

  • 7 models
  • from $339.00
  • Series LS-FFL-S42

The Lens series, 1/1.7", C-mount is a range of 7 machine vision lenses from LumaSpec Vision, from $339.00. It comes in 7 sizes or versions. Every model below has its own page with full specifications, drawings and price.

Build a system with this series See all 7 models Series datasheet (PDF)

The series at a glance

Sizes / versions
6 mm, 8 mm, 12 mm, 16 mm, 25 mm, 35 mm, 50 mm
Mount
C-mount
Image circle
8-11 mm
Focal length
6-12 mm, 12-25 mm, 25-50 mm, 50-100 mm
Sensor format
1/1.8" - 1/1.56"

All 7 models in the Lens series, 1/1.7", C-mount

Link
LS-FFL-02778 mm2.4-1632.5 x 33.952.2 x 39.5 deg$339.00quoteView
LS-FFL-027916 mm2.4-1629 x 30.7826.1 x 19.7 deg$379.00quoteView
LS-FFL-028025 mm2.4-1629 x 35.9517.4 x 13.1 deg$379.00quoteView
LS-FFL-028135 mm2.4-1629 x 4612.6 x 9.5 deg$379.00quoteView
LS-FFL-028250 mm2.8-1629 x 45.298.9 x 6.7 deg$379.00quoteView
LS-FFL-027812 mm2.4-1629 x 27.7834.3 x 25.9 deg$429.00quoteView
LS-FFL-02766 mm2.4-1636 x 33.465.0 x 50.5 deg$459.00quoteView
