Machine vision lenses

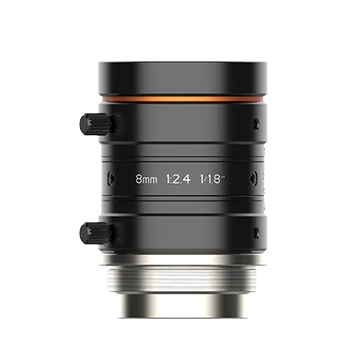

HF-P series lenses
- 7 models
- from $89.00
- Series LS-HF-P
The HF-P series lenses is a range of 7 machine vision lenses from LumaSpec Vision, from $89.00. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Mount
- C-mount
- Image circle
- 8-11 mm
- Focal length
- 6-12 mm, 12-25 mm, 25-50 mm, 50-100 mm
- Resolution
- 6-10 MP
- Sensor format
- 1/1.8" - 1/1.56"
Features
- Ultra high resolution and consistency of image clarity
- Bigger aperture, lower distortion and higher relative illumination rate
- Achromatic optical system design, Better imaging performance with color camera
- Excellent vibration resistance performance, optical axis shifting within pixel level
- Good stability at high and low temperature
- Multilayer and broadband coating design, compatible with visible and near-infrared applications
All 7 models in the HF-P series lenses
| Link | |||||
|---|---|---|---|---|---|
| LS-HF0824M-10MP | 8 mm | –0.67% | 0.1 m | $89.00 | View |
| LS-HF1224M-10MP | 12 mm | 0.15% | 0.1 m | $89.00 | View |
| LS-HF1624M-10MP | 16 mm | –0.02% | 0.1 m | $89.00 | View |
| LS-HF2524M-10MP | 25 mm | –0.01% | 0.1 m | $89.00 | View |
| LS-HF3524M-10MP | 35 mm | 0.01% | 0.15 m | $89.00 | View |
| LS-HF5024M-10MP | 50 mm | 0.03% | 0.3 m | $89.00 | View |
| LS-HF0624M-10MP | 6 mm | 0.37% | 0.1 m | $99.00 | View |
