Machine vision lenses
1/1.8" machine vision lenses
- 13 models
- from $99.00
- Series LS-FA-1-1-8IN
The 1/1.8" machine vision lenses is a range of 13 machine vision lenses from LumaSpec Vision, from $99.00. It comes in 11 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 3.5 mm, 1/1.8", 3 MP, C-mount, 4 mm, 1/1.8", 5 MP, C-mount, 6 mm, 1/1.8", 5 MP, C-mount, 8 mm, 1/1.8", 5 MP, C-mount, 12 mm, 1/1.8", 5 MP, C-mount, 16 mm, 1/1.8", 5 MP, C-mount, 25 mm, 1/1.8", 5 MP, C-mount, 35 mm, 1/1.8", 5 MP, C-mount, 35 mm, 1/1.8", 6 MP, C-mount, 50 mm, 1/1.8", 5 MP, C-mount, 75 mm, 1/1.8", 5 MP, C-mount
- Type
- Machine vision fixed
- Mount
- C-mount
- Resolution
- Up to 3 MP, 5 MP, 6-10 MP
- Image circle
- 8-11 mm
- Focal length
- Under 6 mm, 6-12 mm, 12-25 mm, 25-50 mm, 50-100 mm
- Sensor format
- 1/1.8" - 1/1.56"
Features
- High resolution: 5 megapixel, covers 5 MP, 3 MP and 1080P cameras
- Large format: 1/1.8" image size, covers 1/1.8", 1/2" and 1/3" cameras
- Small size: compact design fits most applications
- Low distortion for machine vision and ITS
- 3.0 megapixel
- Large format 1/1.8" covering 1/1.8", 1/2", 1/3"
- Small size fits most applications
- Low distortion -1.23% for measurement and vision
Typical uses
- Automation
- Machine vision
- Medical
- Life science
- ITS
- SMT
All 13 models in the 1/1.8" machine vision lenses
| Link | ||||||
|---|---|---|---|---|---|---|

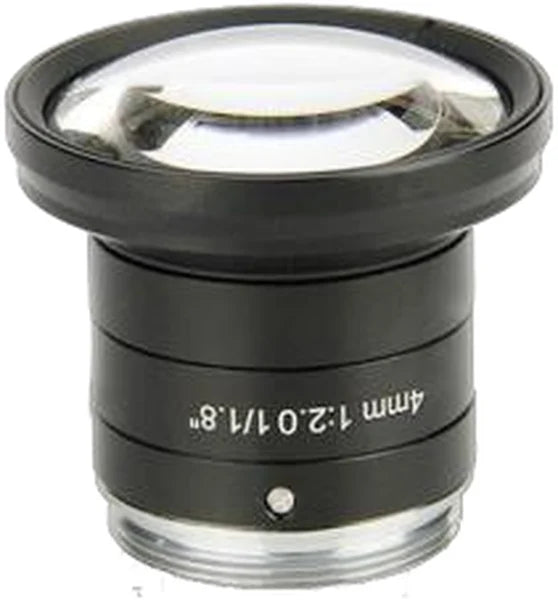

| LS-SFA0420-5M | dia. 38.2 x 36.43 mm | 5MP | 4 mm | F2.0 | $99.00 | View |
| LS-SFA0620-5M | dia. 26.8 x 27.5 mm | 5MP | 6 mm | F2.0 | $99.00 | View |
| LS-SFA0820-5M | dia. 26.8 x 25 mm | 5MP | 8 mm | F2.0 | $99.00 | View |
| LS-SFA0822-5M | dia. 26.8 x 25 mm | 5.0 Megapixel | 8 mm | F2.2 Manual iris | $99.00 | View |
| LS-SFA35H24-3M | dia. 42 x 37.7 mm | 3 Megapixel | 3.5 mm | F2.4 Manual iris | $99.00 | View |
| LS-SFA1220-5M | dia. 26.8 x 19.9 mm | 5MP | 12 mm | F2.0 | $109.00 | View |
| LS-SFA1222-5M | dia. 26.8 x 23.5 mm | 5.0 Megapixel | 12 mm | F2.2 Manual iris | $109.00 | View |
| LS-SFA1620-5M | dia. 26.8 x 22.4 mm | 5MP | 16 mm | F2.0 | $109.00 | View |
| LS-SFA2520-5M | dia. 27.5 x 27.5 mm | 5MP | 25 mm | F2.0 | $129.00 | View |
| LS-SFA3520-5M | dia. 28 x 33 mm | 5MP | 35 mm | F2.0 | $139.00 | View |
| LS-SFA3524-6M | dia. 33 x 29.4 mm | 6.0 Megapixel (2.4 μm pixel size) | 35 mm | F2.8~16 Manual iris | $139.00 | View |
| LS-SFA5028-5M | dia. 30.6 x 44.9 mm | 5MP | 50 mm | F2.8 | $159.00 | View |
| LS-SFA7528-5M | dia. 35 x 71.9 mm | 5MP | 75 mm | F2.8 | $189.00 | View |
